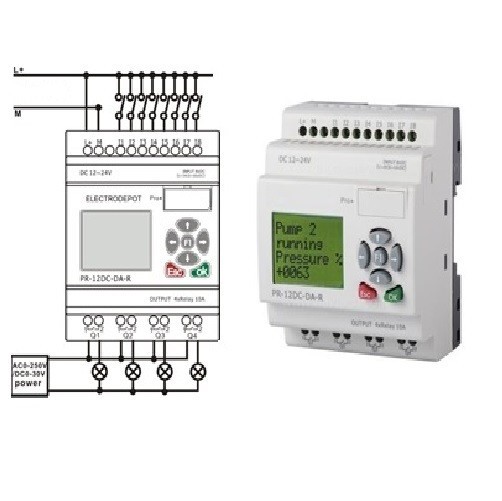

Micro PLC Compact Programmable Logic Controller 12V
4 Relay Output 8 DC inputs, Function Logic Programming

NOTE: 4 of the DC inputs can be used for Analog inputs

Product List:

1 PLC Controller

1 USB Programming interface cable
1 12VDC DIN Power Supply
1 DIN Rail 8 inc
1 USB Drive includes Software and Electronic manuals

PLC Specifications
PLC Controller 8 DC inputs, 4 relay outputs HMI Display & Keypad,
Analog inputs 0-10vdc. w Real Time Clock.
Programming and simulation software included, Interface included.
Programming languages Logic/Function Block Program
Memory 300 Lines or up to 512 Function Blocks
Programming storage media Flash Execution Speed 10ms/cycle.
Timers Maximum Number 31 T-coils Timing ranges 0.01s-9999min
Counters Maximum Number 31 C-coils Highest count 999999.
RTC (Real Time Clock) Number available 31 R-coils
Time span available week, year, month, day, hour, min Daylight Savings feature

Software Package RunTime, include VIRTUAL PLC on your computer with examples
Advanced Programming software with program simulation and monitoring

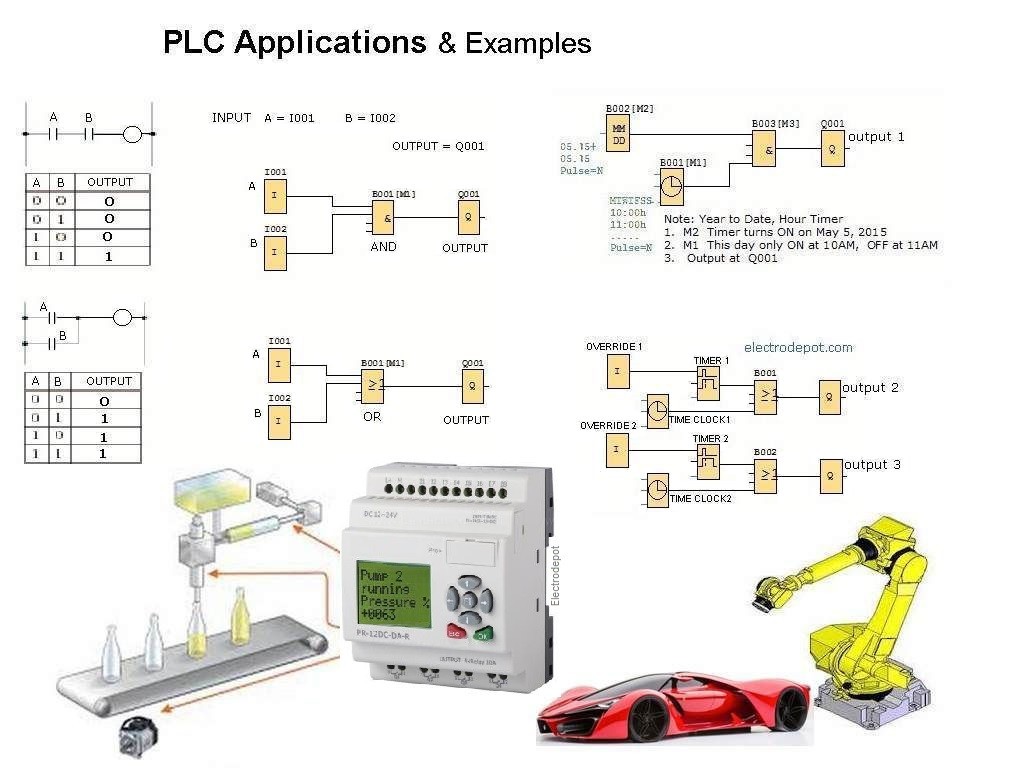

Applications & Examples for Students, Engineers or Developers
Supplied in a USB DRIVE with Electronic manuals and instructions
Price is the Cost of production, compiling, examples, software is FREE
Win 10 and 11 Ready

IEC Standard FBD Logic function Block Diagram include VITUAL PLC on your computer with examples. Advanced Programming software with program simulation and monitoring. Real operating software packages

NOT a DEMO Package is used with the Following PLC Controllers; Easy, Migro, EDPLC, Rievtek, Eco, MIT and more,

Customized for Students, Engineers or developers.
Multiple functions, clocks, timers, counters, latching, analog, logic gates and more.

FUNCTION BLOCK DIAGRAM (FBD) Software IEC 61131-3 standard

    Input Switches operable from the computer keyboard
             or by clicking on the icon
    Instantaneous Relay contacts (normally-open and normally-closed).
    Instantaneous Timer contacts (normally-open and normally-closed).
    Timed Timer and counter contacts
    Branch wiring
    Real Time Clock Day, Month, Years
    Compare Instructions (GRT, EQU, and LES).
    Analog inputs and scale simulator screen
    Latch and Unlatch Relays
    Master Control Relays (MCR)
    On-Delay Timers (TON)
    Off-Delay Timers (TOF)
    Retentive Timers (RTO)
    Counters
    Timer/Counter Reset (RES)
    Move (MOV)
    Math Outputs (ADD, SUB, MUL, and DIV)
    Logical Outputs (AND, OR, NOT, and XOR)
    And Many More

Virtual plc controller on your computer

Upload and Download from Laptop or PC
Multiple time clocks, timers and counters, logic and functions
• Built-in Real-Time Clock

Cost of this package is for the Compilation, Procurement, Production, Packing and Examples, The software is FREE

Brand	Electrodepot
Model	LOGO
MPN	abb
Controller Platform	Migro

Programmable Relay 8in, 4 Out, Timers, Clock, Counters, Logic PLC Functions HMI
