Product Description

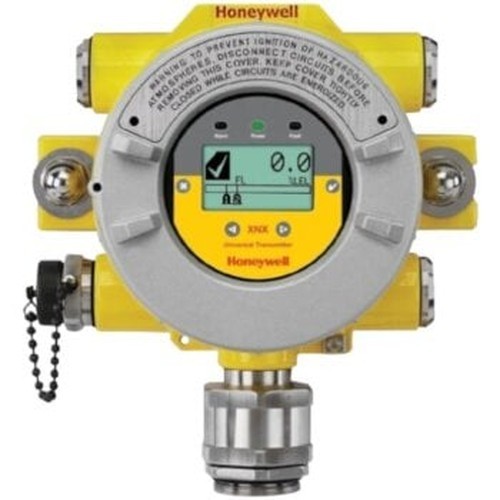

The Honeywell XNX-UTSE-RNNNN is a universal transmitter designed to work with various sensors on a single platform. It allows for easy integration and reliable functionality. This product is suitable for use with gas monitoring controllers and industry-standard PLCs. The transmitter is equipped with HART EDDL software, enabling quick assessments of the health status of gas detectors.

Compatible with a range of sensors on one platform.
Provides flexible input and output options.
Includes a large backlit LCD display with sensory indicators.

Product Highlights

The Honeywell XNX-UTSE-RNNNN is designed for effective gas detection and monitoring. With straightforward installation and maintenance, it is perfect for professionals in HVAC and gas monitoring applications.

Product Information

Standard Information

Operating Voltage EC/mV: 16V to 32V (24V nominal)
Operating Voltage IR: 18V to 32V (24V nominal)

Technical Specifications

Power Consumption XNX EC: 6.2W
Power Consumption XNX mV: 6.5W
Power Consumption XNX IR (Optima): 9.7W
Power Consumption XNX IR (Excel): 13.2W
Inrush XNX EC: <1A, <10ms@24VDC
Termination: Crimp style pluggable with retaining screws, 12-28 AWG
Signal Standard: HART over 3-wire 4-20 mA
Cable Ports: 5 - Available in 3/4inch NPT, or M25
User Interface: Custom Backlit LCD, magnetic wand operation
IP Rating: IP66
Temperature Range: -40°C to +65°C
Humidity: 0 to 99% RH non-condensing
Pressure: 80 kPa to 120 kPa
Relays Type: 3 form inchCinch SPCO contacts for alarms
Modbus Baud rates: 1200 to 38,400
Dimensional Weight: 5 lbs
Dimensions: 6.138 x 7.75 x 4.48 inches

Brand	HONEYWELL
MPN	XNX-UTSE-RNNNN

Honeywell XNX-UTSE-RNNNN Universal Transmitter 3/4" SS 24V IP66 Gas Monitor
