Product Description

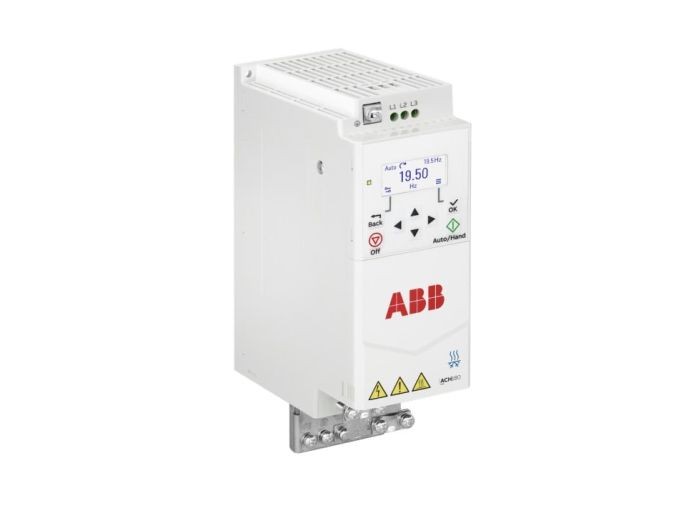

The ABB ACH180-04S-03A7-2 is a variable frequency drive designed for efficient motor control. This unit supports a three-phase, two hundred to two hundred forty volts alternating current input and provides an output current of three point five amps. It is suitable for open environments and can be conveniently mounted on a DIN rail or panel. The unit has an IP20 rating, making it ideal for various industrial applications while operating within a temperature range from negative ten degrees Celsius to fifty degrees Celsius.

Input voltage: two hundred to two hundred forty volts AC
Output current: three point five amps
Mounting type: DIN rail or panel

Product Highlights

This model is versatile and supports built-in operator controls, making it user-friendly. It handles motors with variable torque ratings up to zero point seventy-five horsepower and constant torque ratings up to zero point five horsepower. It is a compact unit, measuring eight point two three inches in height, two point seven six inches in width, and five point six three inches in depth.

Product Information

Standard Information

Manufacturer Part Number: ACH180-04S-03A7-2
Manufacturer: ABB

Technical Specifications

Product Series: ACH180
Product Type: Variable Frequency Drive
Input Voltage: 240 VAC
Phase: 3
HP (Variable Torque Rating): 0.75 hp
Amps (Constant Torque Rating): 2.4 A
IP Rating: IP20
Frame Size: R0
Weight: 6.0 lbs
Operating Temperature Range: -10¬∞C to 50¬∞C

Brand	ABB
MPN	ACH180-04S-03A7-2

ABB ACH180-04S-03A7-2 VFD 0.75HP 240V 3PH IP20 R0 6.0lbs
