Product Description

The Pentair 150435 Pentek standard water filter housing is made of reinforced polypropylene cap and a styrene acrylonitrile (SAN) sump. Equipped with 3/4" NPT inlet and outlet ports, the housing accommodates 2-1/2" to 2-7/8" diameter cartridges, making it ideal for low-flow applications. The clear sumps are annealed to relieve stress and to add clarity and strength.

Ideal for residential, commercial, and industrial applications.
Features mounting bosses for a bracket (not included).
Offers excellent chemical resistance.

Product Highlights

The Pentek standard water filter housing has thick walls for increased strength and leak-proof sealing with a Buna-N O-ring.

Product Information

Standard Information

Brand: PENTAIR
Manufacturer Part Number: 150435

Technical Specifications

Cap Color: Black
Features: Pressure Relief
Housing Material: Styrene Acrylonitrile
Inlet Connection: 3/4" FPT
Max Pressure (Psi): 125
Max Temp (°F): 125°F
Mounting Options: Mounting Bosses
Outlet Connection: 3/4" FPT
Psid@Flow Rate: 1 PSI @ 10 GPM
Seal / O-Ring Material: Buna-N (Nitrile)
Size: 10"
Cap Material: Polypropylene
Connection Type: Female (FPT)
Flow Rate: 10 GPM
Type: Standard
Product Certification Standard: NSF/ANSI 42
Product Height: 5.125
Product Length: 12.375
Product Width: 5.125
Temperature (Min): 40 °F
Temperature (Max): 125 °F
Pressure (Min): 40 psi
Pressure (Max): 125 psi
Inlet Size: 3/4"
Inlet Connection Type: NPT
Category: Filter Housings
Connections: FPT
Family: Filtration
Filter length: 10"
Group: Polypropylene
Material: Styrene Acrylonitrile
Nominal size str: 3/4"
Seals: Buna-N

Brand	PENTAIR
MPN	150435

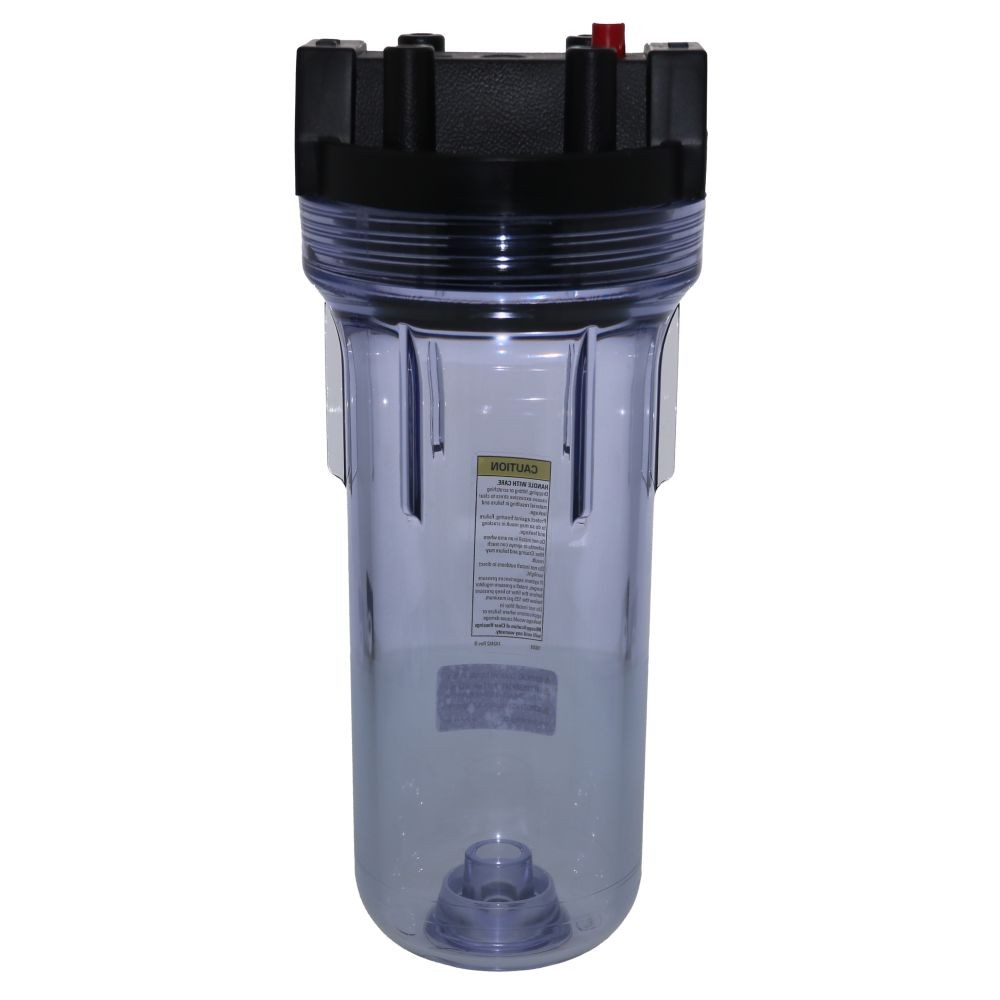

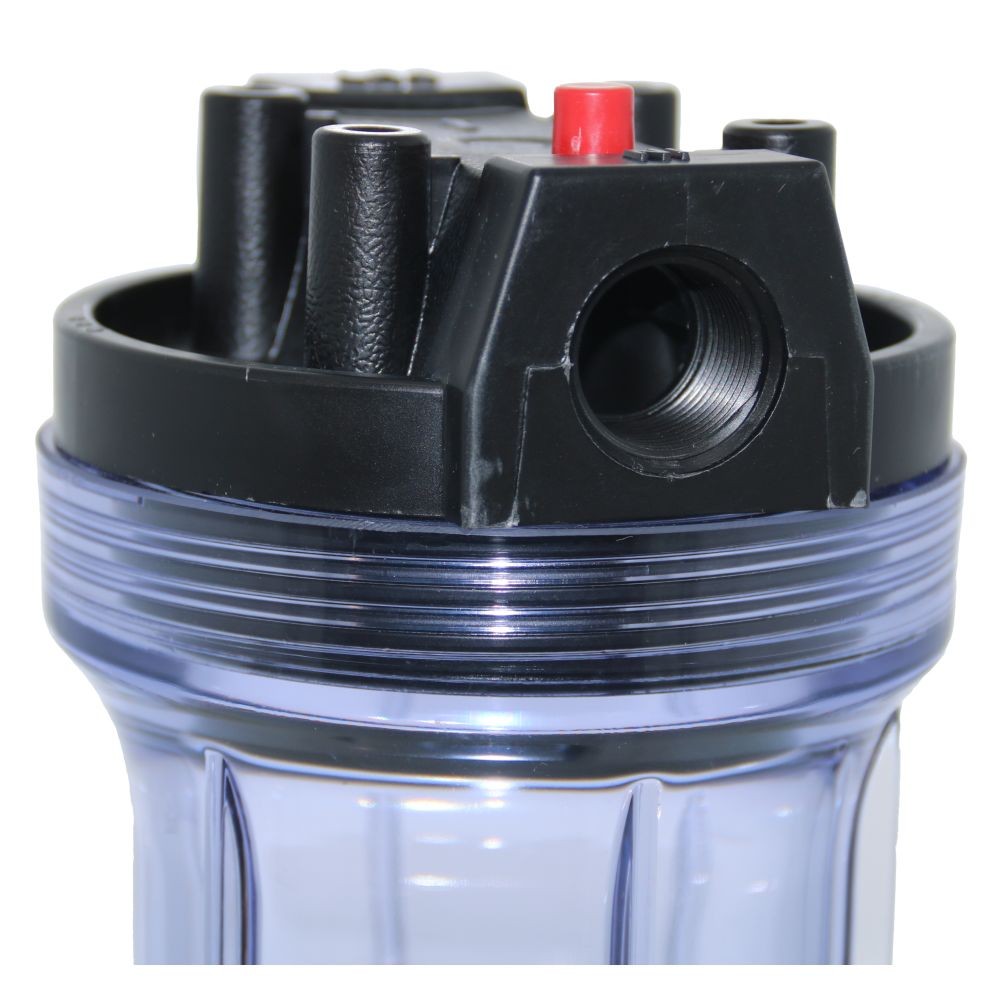

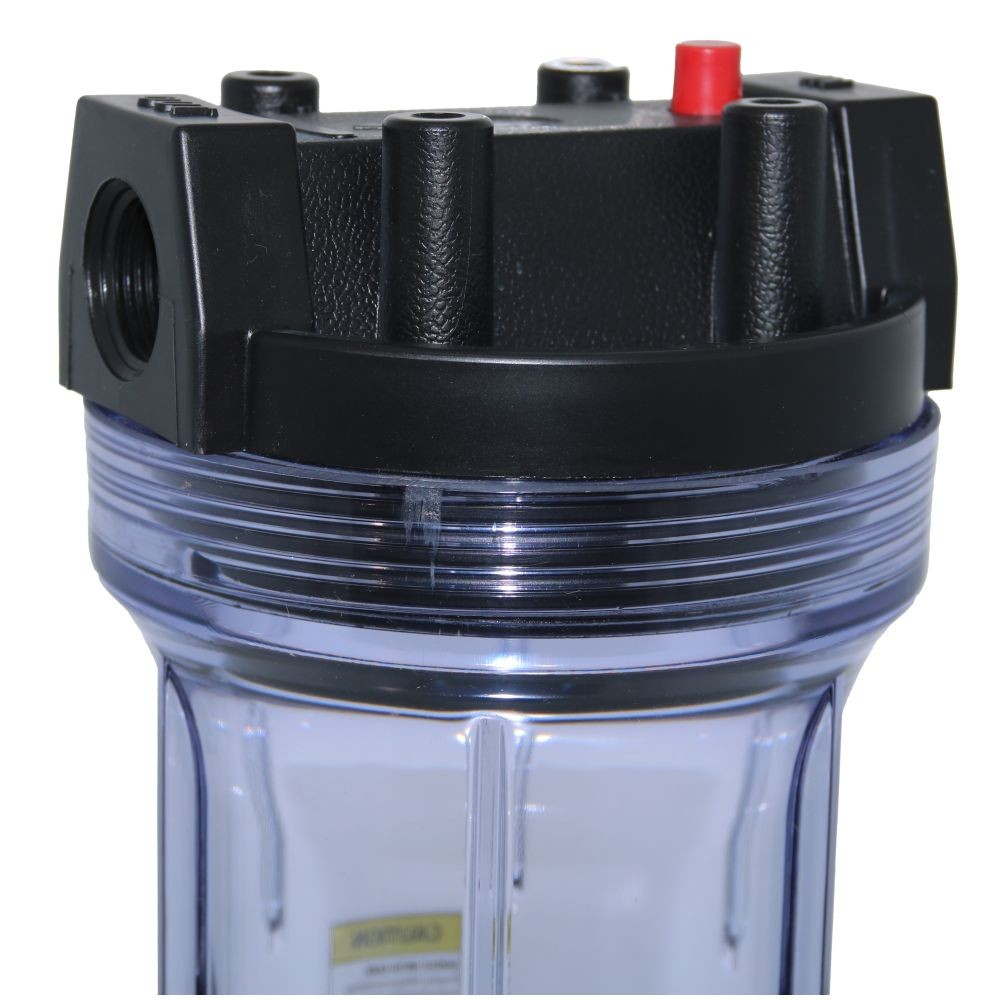

Pentair 150435 Pentek 10" Water Filter Housing 3/4" NPT
