CANAMEK-Gold-CAN Laser Control System

-Connects to Almost all Machine Types

-Offers Automatic, Manual and survey modes

-Connecting to all Laser Transmitters with Red Laser Beam

-3 / 9 / 14 MM Accuracies

-LED Display that can be Easily Read, even in Strong Sunlight or in the Night Time

-Operation Temperature: - 20 to 60+ °

-Valve Types Supported; On/Off Valves, Actuators(Optional)

-Valve Flow Setting

-10 to 30 V input voltage

-Made in CANADA

-2 Year Warranty

-7 Days a Week After-Sales Services

Package Components:

CP210-CAN Control Box

MD205-CAN Laser Receiver

Remote Switch RS100

Power Cable

Blade Cable

Data Cable

Aluminum Carry Case

Features:

Control Box CP210-CAN:

Selectable Accuracies

Water-Resistant: IP66

Capability of Remote Switch Connectivity

Displaying Error Message When No Connection Between Receiver & Control Box

Short circuit protection

Voltage Range: 12 to 24 V

Blade Up and Down Speed Control in 80 Increments through Menu

Laser Receiver MD205-CAN:

Alloy Aluminum Body

Water-Resistant: IP68

Capture Range: 360°

Measurement Window: 190 mm

Weight: 2.850 Kg

Receiver Communicates and is Powered via CAN bus

Voltage Range: 12 to 24 V

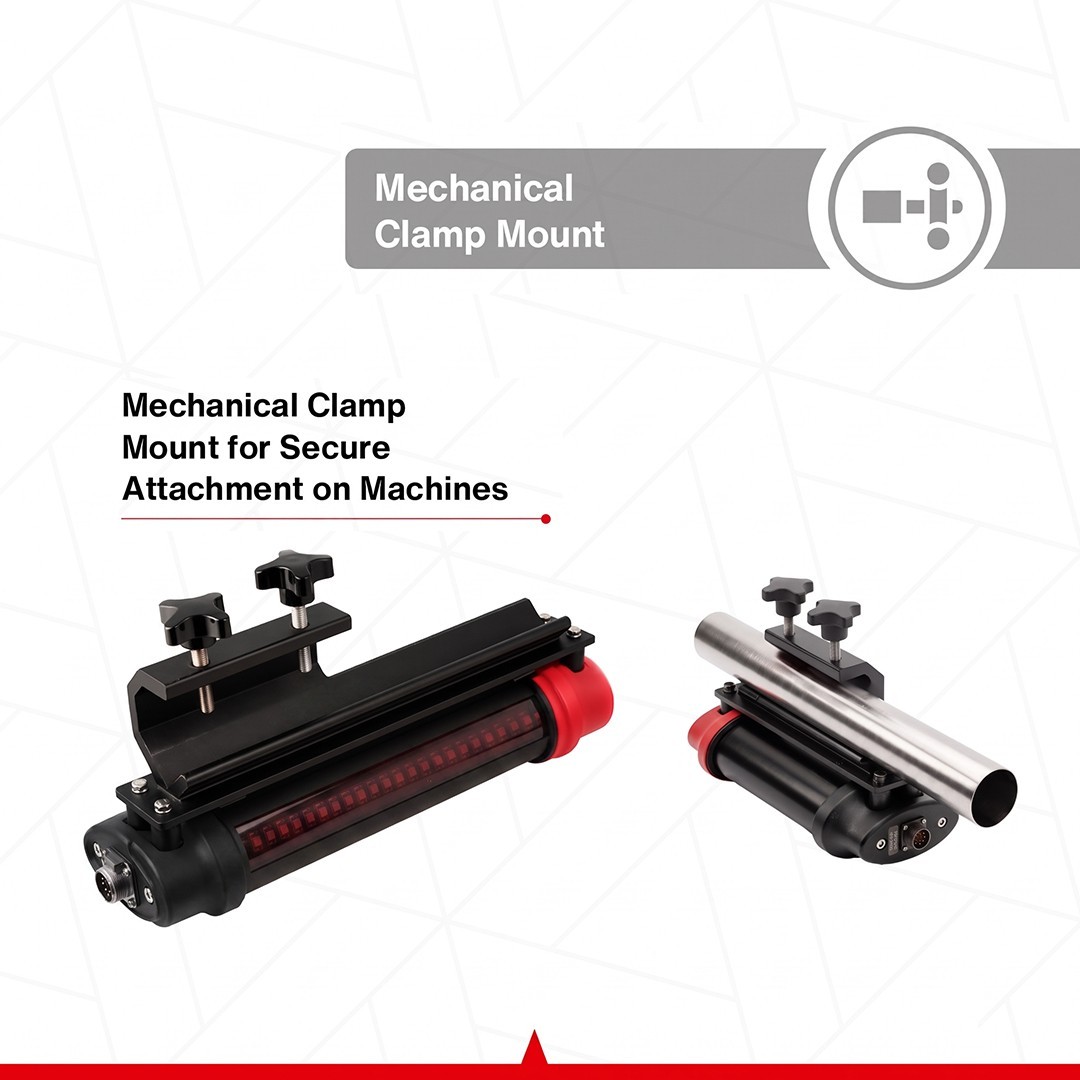

Mechanical Clamp Mount for Secure Attachment on Machines

Real-Time Laser Bounce Filtration

Flashing LED Indicators:

Red: Receiver is above grade

Green; Receiver is on grade

Yellow; Receiver is below grade

Remote Switch RS100:

Aluminum Body

Heavy Duty water and dust proof switches

Coiled Cable/ high mechanical resistant

Easy to operate and durable

Cables and Connectors:

Water & Dust Proof Connectors

Circular Mill Connectors

Appropriate for High Mechanical Stress

Appropriate for Low temperatures

Oil Resistant

Power Cable Length: 13.12 ft

Blade Cable Length: 24.77 ft

Receiver to Control Box Connection Cable Length: 36 - 46 ft

Laser Grade Machine Control System CANAMEK with Remote
