Features:

1. 2-in-1 function: the product built-in oscilloscope and signal generator function, the product is compact and cost-effective.

2.HD LCD screen: 2.8-inch high-definition display, resolution 320 × 240.

3. Long-lasting battery life: built-in 1000mAH rechargeable lithium battery, equipped with an automatic shutdown function, both to achieve long life, but also to extend battery life.

4. One-key automatic mode: waveforms can be displayed immediately without complex adjustments.

5. Wide range of applications: ideal for advanced maintenance, development and DIY learning.

Basic Parameters:

Display: 2.8 inches / PPI: 320*240

USB charging: Type-C interface 5V/1A

Li-ion battery capacity: 1000mAh

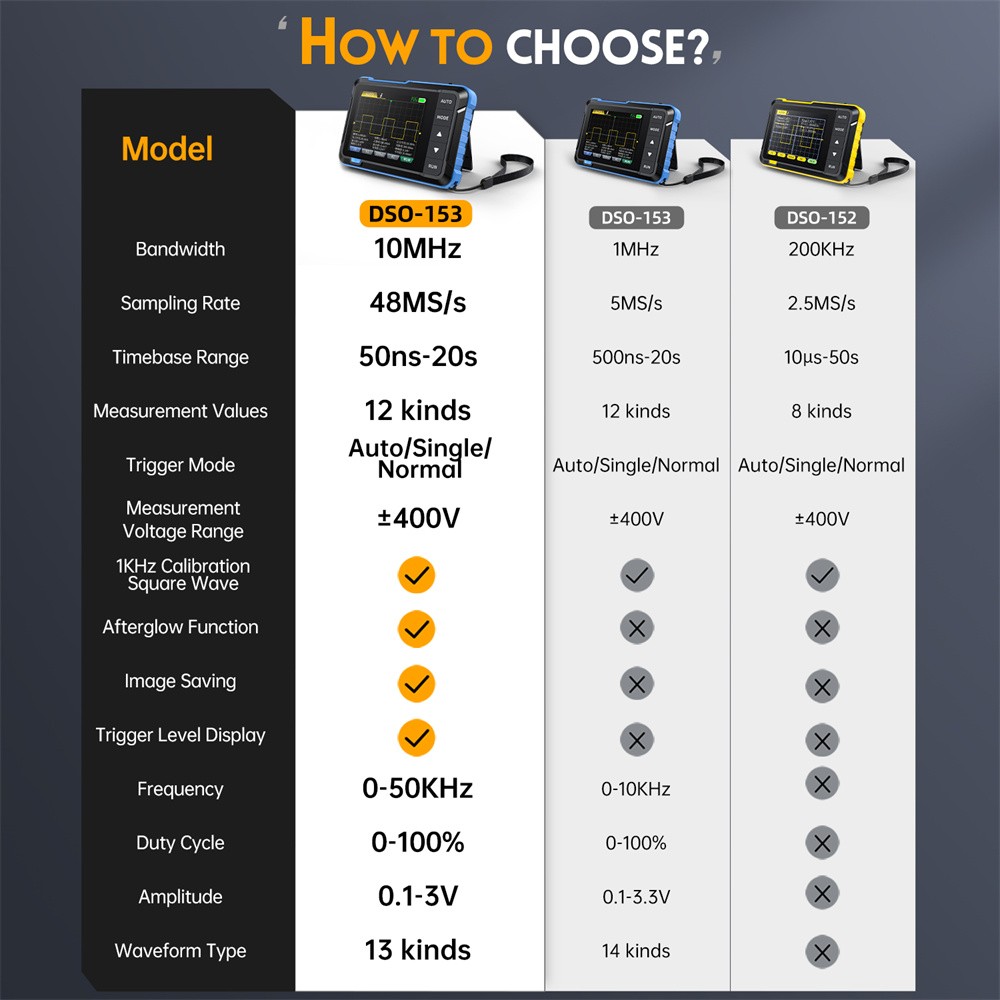

Oscilloscope Parameters:

Real-time sampling rate: 48MS/s

Bandwidth: 10MHz

Vertical sensitivity: 10mV/Div-10V/Div

Time base range: 50ns-20S

Voltage range: X1:±40V (Vpp:80V), X10:±400V (Vpp :800V)

Trigger mode: automatic/regular/single

Trigger edge: Rising edge/Falling edge

Coupling method: AC/DC

Calibration Square Wave: Frequency:1K;Duty Cycle:50%;Amplitude:3.3V

Signal generator parameters:

Frequency: 0-50KHz

Duty Cycle: 0-100% (rectangular and sawtooth wave)

Amplitude: 0.1-3.0V

Waveforms: sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, reverse step wave, exponential rise, exponential fall, DC signal multi-audio, Sink pulse, Lorentz wave

Package Includes:

1*Oscilloscope

1*Instruction manual

1*Lanyard

1*Alligator Clip Probe

1*Type-C charging cable
