Brooks Automation PCB Assembly 4002-7452-01 Rev A with Elmo Motion P/N 6-WH110/100EE Module – USED

✅ DESCRIPTION

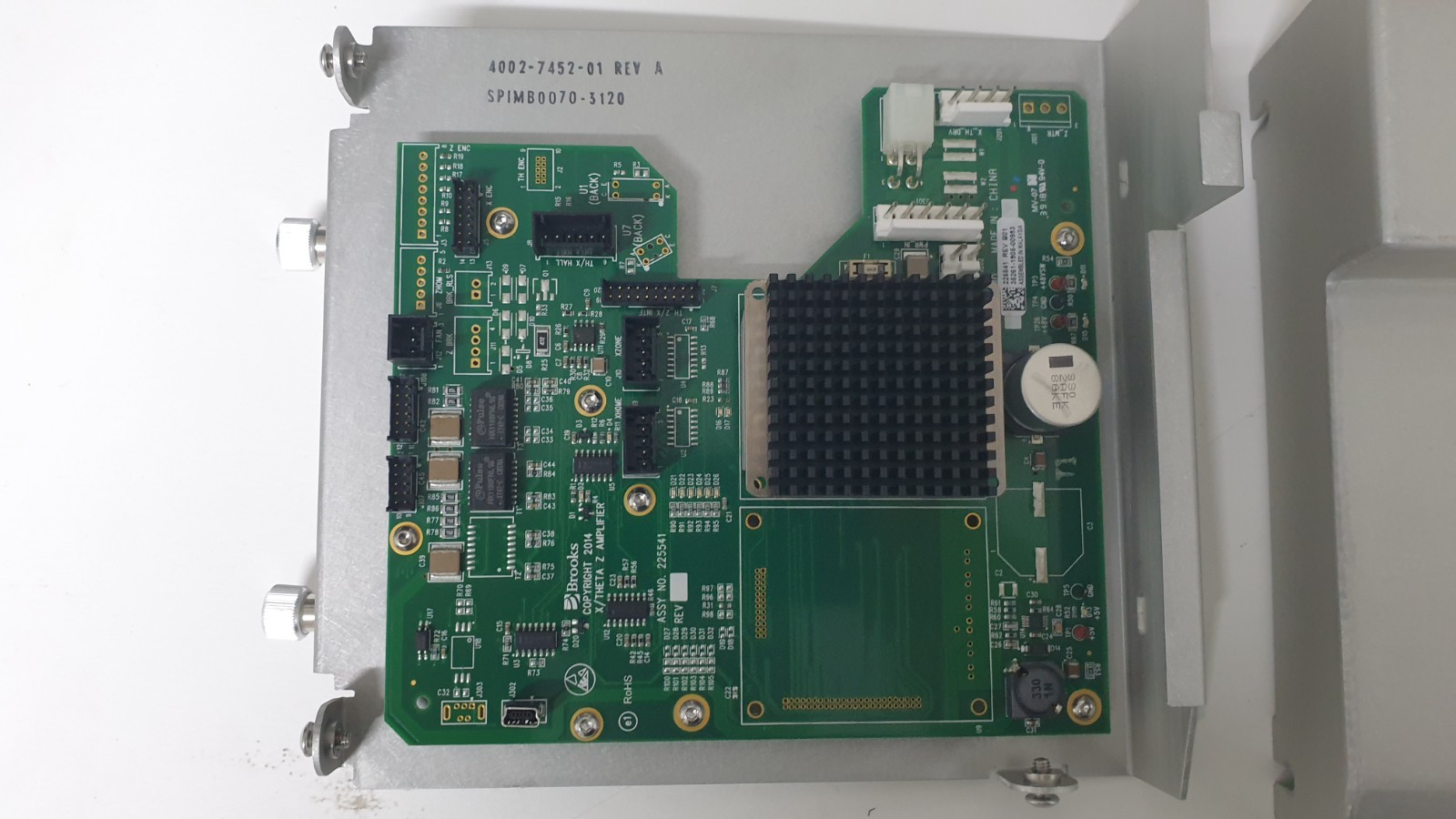

Used Brooks Automation PCB Assembly, part number 4002-7452-01 Rev A, complete with the metal enclosure cover and an installed Elmo Motion Control module P/N 6-WH110/100EE. The item is shown fully disassembled for clarity.

This listing is based strictly on the provided photos.

MAIN BOARD DETAILS

Manufacturer (visible on PCB): Brooks Automation

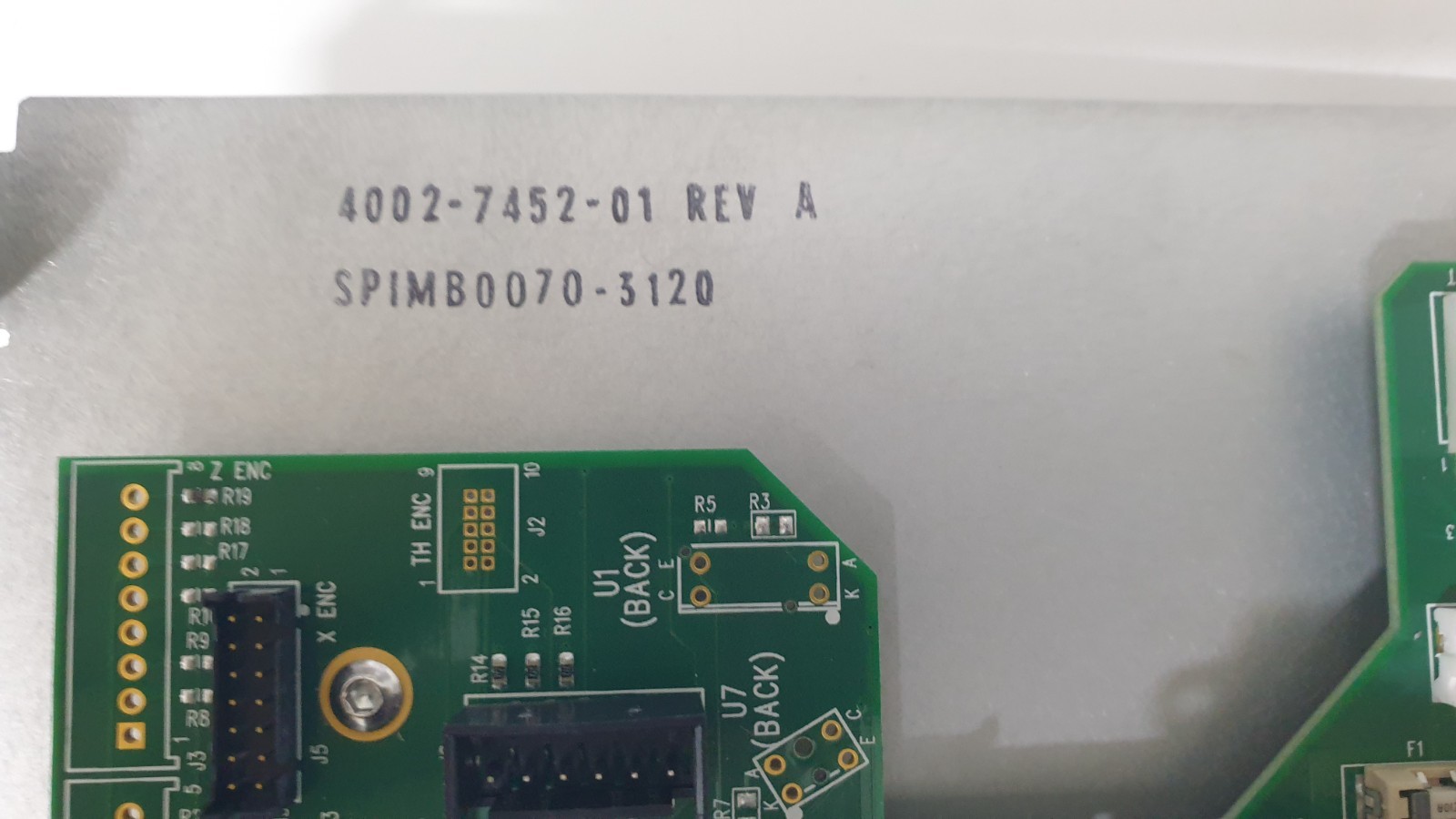

Part Number: 4002-7452-01
Revision: Rev A
Secondary Code: SPIMB0070-3120

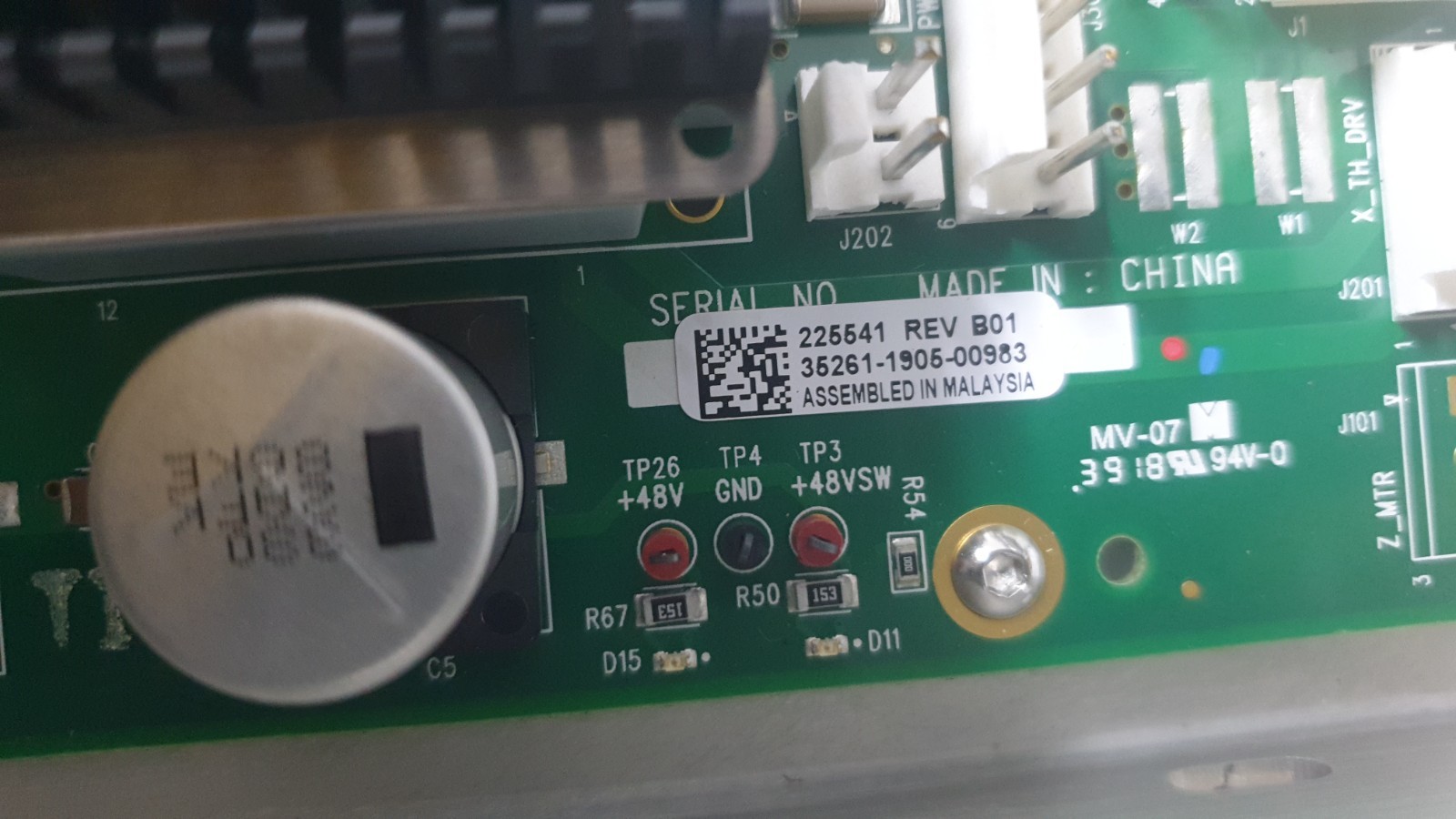

Serial Label:
- 225641 Rev B01
- 36261-1905-00983
- Assembled in Malaysia
Country Marking on PCB: MADE IN CHINA

The PCB includes:

Multiple board-mounted connectors (white and black headers)
A large black heatsink covering a central processing module
Power test points labeled: TP26 +48V, TP4 GND, TP3 +48VSW
Various ICs, capacitors, resistors, and other SMT components
PCB model code MV-07 and 94V-0 marking

EQUIPPED MODULE (INSTALLED ON PCB)

Elmo Motion Control Module

Manufacturer: Elmo Motion Control (Israel)
P/N: 6-WH110/100EE
S/N: GW185Y10334
Certifications: CE, UL, C-UL
Additional firmware marking:
- FW 01.01.11.00
- PAL 87.1

This module is mounted under a heatsink and is an integral part of the assembly.

METAL ENCLOSURE

Included removable metal shield/cover
Clean condition with no visible dents
Designed to slide over the PCB and lock into the frame
Same mounting hardware included as shown

CONDITION

USED
Clean PCB, no visible burnt components
No broken connectors observed
Cosmetic wear possible
Not tested — sold as shown

PACKAGE INCLUDES

1 × PCB Assembly 4002-7452-01 Rev A
1 × Mounted Elmo Motion Control module P/N 6-WH110/100EE
1 × Metal protective enclosure cover (as shown)

WARRANTY & SHIPPING

60-Day Warranty
Fast worldwide shipping
You will receive exactly the item shown in the photos

Brand	Brooks Automation
Model	4002-7452-01
MPN	225541 REV B01

Brooks Automation PCB Assembly 4002-7452-01 Rev A, Elmo Motion P/N 6-WH110/100EE
