Wavemat CDL-300 RF Reflectometer 2.45 GHz 0-300W Forward Reflected Power Meter

Wavemat CDL-300 RF Reflectometer 2.45 GHz 0-300W Forward Reflected Power Meter

The Wavemat CDL-300 is a rackmount RF reflectometer designed to monitor both forward and reflected power in 2.45 GHz microwave systems at power levels from 0 to 300 watts. It displays both measurements simultaneously on two front-panel digital meters, allowing operators to monitor power delivery and reflected power in real time. Wavemat Inc., based in Plymouth, Michigan, specialized in microwave technology for materials processing — and the CDL-300 was purpose-built for that environment. This unit powers on and has been inspected.

Specifications & What's Included

Manufacturer: Wavemat Inc., Plymouth, MI
Model: CDL-300
Operating Frequency: 2.45 GHz (ISM band)
Power Range: 0 – 300 Watts
Displays: Two front-panel digital readout meters — Reflected Power and Forward Power
Front Panel Controls: Power switch (illuminated orange), ZERO push-buttons for each channel

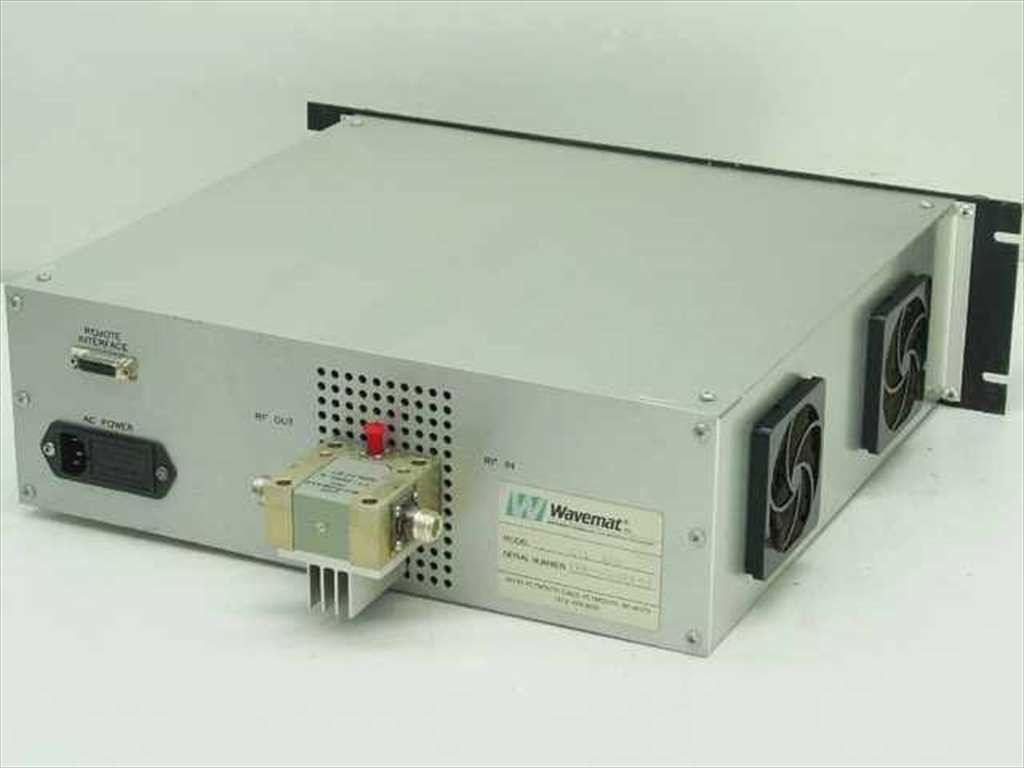

RF Connectors: N-Female — RF OUT and RF IN (rear panel)
Integrated Coupler: UTE Microwave CT-3695-N directional coupler (mounted on rear panel between RF ports)
Remote Interface: DB15 connector on rear panel
AC Power Input: IEC inlet, 115V AC
Cooling: Dual rear-mounted cooling fans
Form Factor: Rackmount, approximately 3U

Applications

The CDL-300 is used as an in-line RF power monitor in 2.45 GHz microwave processing systems — the ISM-band frequency widely used in industrial microwave heating, materials processing, plasma generation, and chemical vapor deposition (CVD) applications. By measuring both the forward power delivered toward the load and the reflected power returning from it, the instrument lets process engineers monitor impedance matching and calculate actual absorbed power. High reflected power indicates a mismatch between the microwave source and the applicator or cavity, which can damage the magnetron or power amplifier; the CDL-300 gives operators the real-time data needed to tune the system and protect the source. Wavemat was a recognized maker of microwave processing systems and accessories during the 1990s and early 2000s, and equipment like the CDL-300 was found in university research labs, semiconductor processing facilities, and industrial microwave processing lines. These instruments remain in demand for maintenance, replacement, and legacy system support wherever 2.45 GHz microwave power systems are still in operation.

Condition: Used
This Wavemat CDL-300 RF Reflectometer has been inspected and powers on. The unit is in good used condition overall. The black front panel shows light wear consistent with lab use, and the rear aluminum panel is clean. Both digital panel meters and the front-panel power switch are functional. The integrated UTE Microwave directional coupler on the rear is present and intact, with N-female connectors on both the RF OUT and RF IN ports. The DB15 remote interface connector and IEC AC power inlet are present on the rear panel. Please view our photo set and contact us if you have any questions.
