Feature:

1. Adopt patch photocoupler isolation, strong driving ability, stable performance. Trigger current is 5mA.
2. Module operating voltage is 5V,12V,24V for choice.
3. Each path of the module can be triggered by the high level or low level through a jumper setting.
4. Fault-tolerant design,even if the control line breaks,the relay will not move.
5. Power indicator light (green), 4-way relay state indicator light (red).

Specification:

Features:

Adopt patch photocoupler isolation, strong driving ability, stable performance. Trigger current is 5mA.
Module operating voltage is 5V,12V,24V for choice.
Each path of the module can be triggered by the high level or low level through a jumper setting.
Fault-tolerant design,even if the control line breaks,the relay will not move.
Power indicator light (green), 4-way relay state indicator light (red).
Humanized interface design, all interfaces can be directly connected through the terminal lead, very convenient.
Four fixing bolt holes are provided.

Specification:
Weight: 60g/2.1oz
Common interface load: AC 250V/10A, DC 30V/10A
Module Size (L*W*H): 73*50*18.5mm/2.9*2*0.7inch
Bolt Hole: 3.1 mm; 67*44.5mm (spacing)
Voltage: 5V, 12V, 24V (Optional)

Module interface:
1. DC + : connected to the positive pole of power supply (voltage is required for relay, 5V, 12V and 24V for choice)
2. DC- : connect to the power negative pole.
3. IN1-IN4: according to the setting of each circuit, the corresponding relay can be controlled with high or low level to suck in.

Relay output terminal: with 12 lines of interfaces, all interfaces can be directly connected to lead, convenient for users to use
1. NO1--NO4: the relay normally opens the interface, and the relay is suspended before it is sucked in, and is connected with COM after it is sucked in.
2. Common interface of relay COM1--COM4.
3. NC1--NC4: relay normally closed interface. The relay is short connected with COM before it is sucked in and suspended after it is sucked in.

High and low level trigger selection terminal:
1. S1-S4 is the high-low level trigger selection of relay 1-4 channels successively;
2. Com and low short connection, the corresponding relay for low level trigger, com and high short connection for high level trigger.

Package List:
1 x Relay Module

1. Our listing price includes the value of goods,packaging cost,and export taxes,not including international duties.
2. duties,taxes,and charges are not included in the item price or shipping fee.
3. The duties are buyers' responsibility.Please check with your country's customs office determine what these additional costs will be prior to your purchase.
4. All disputes arising from the duties will be submitted to ebay for solution.

1. Any questions, pls. contact us via ebay message or email us.We will reply your message within 48 hours. If you do not receive our reply within 48 hours, pls. post a message again because sometimes our message system may block some emails.

2. If you are satisfied with our service, pls. kindly leave us a positive feedback and give us the Detailed Seller Rating with all "5 " in very area
3. Our aim is to provide Level Customer Service, your recognition will encourage us greatly and serve you better. We strive to keep all our customers satisfy.

We will do our up most to exceed your expectations in customer service, communication and dispatching of your orders.

https://image-us.chengykj.com/upload/third_resource/image/shipc73.jpg

Brand	Unbranded
Country of Origin	China
UPC	7700293464864

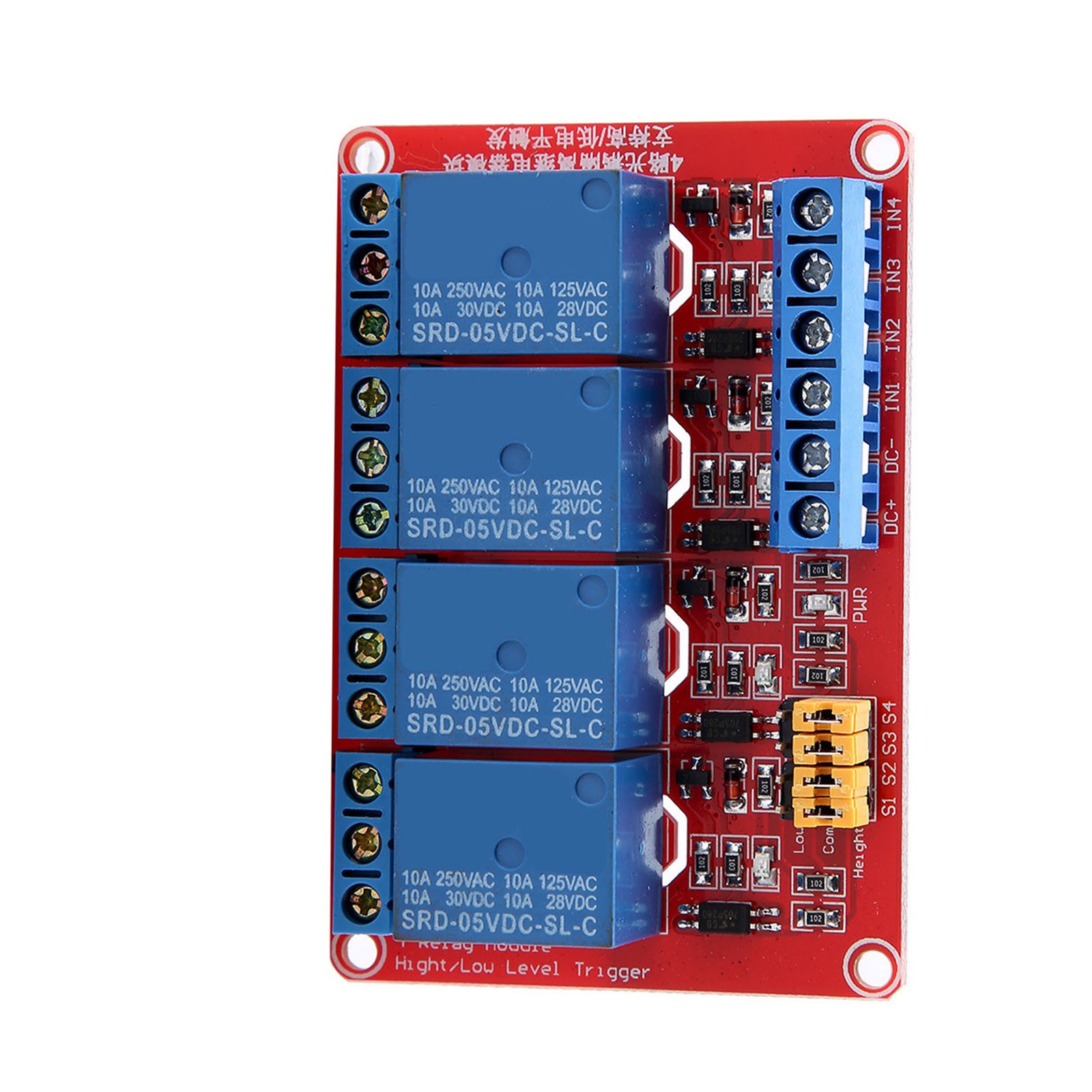

4 Channel Optocoupler Relay Module Board High & Low Trigger 5V/12V/24V(5V)
