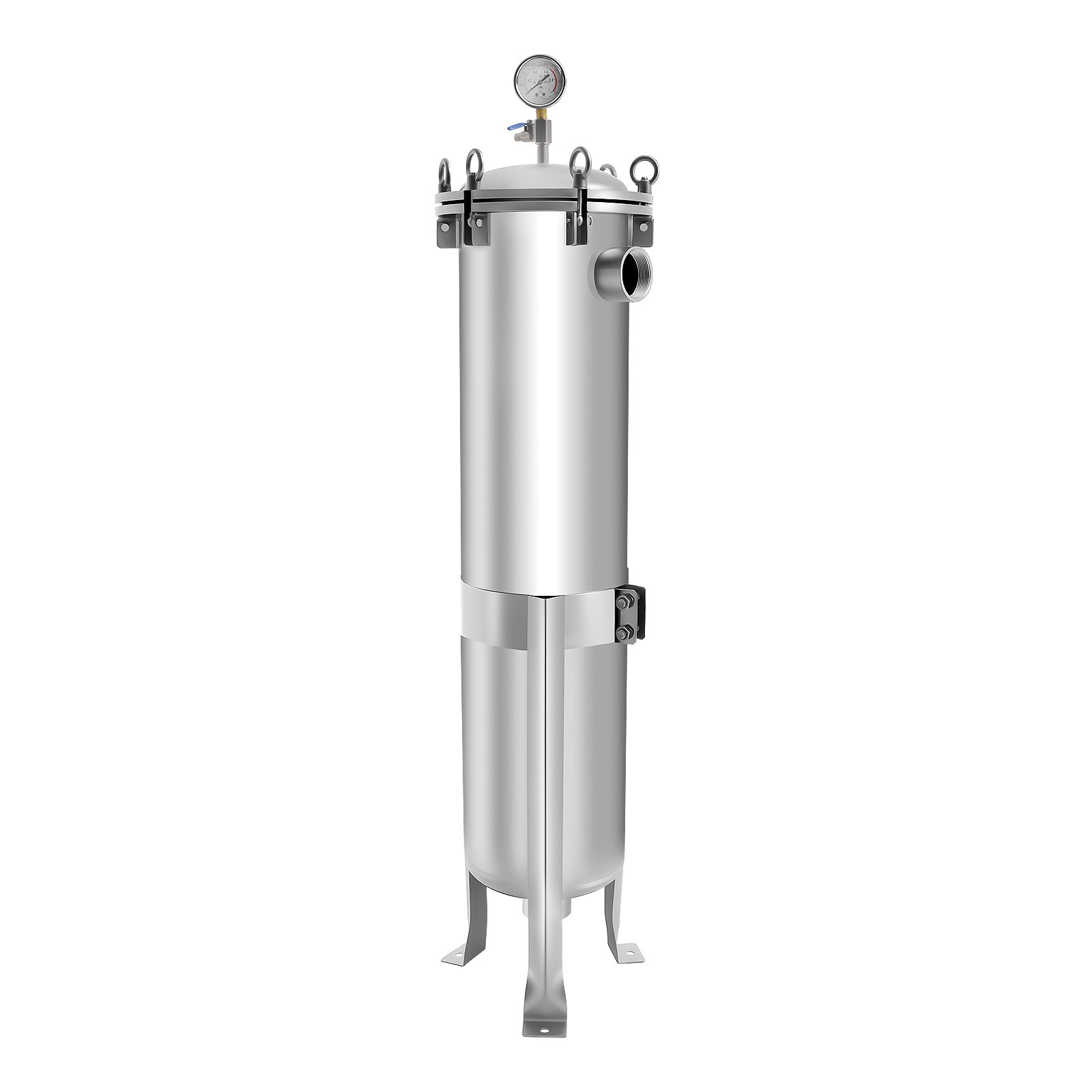

2" NPT Bag Filter Housing 304 Stainless Steel 150 Psi In/Out #2 Bag with Mesh
USD
$413.34
Seller:
lynestore
100.0% positive
(193 reviews)
Monroe Township, US
Only 5 left
US
Shipping
Standard Shipping
FREE
Request Quote
View on eBay
As an eBay Partner Network Affiliate, I earn from qualifying purchases.
Secure Transaction
Fast Response
Quality Guarantee
Specifications
| Brand | Fetcoi |
|---|---|
| Mount Type | Floorstanding |
| Assembly Required | Yes |
| Material | 304 Stainless Steel |
| Process | Mirror Polishing |
| Thickness | 2mm/0.08in |
| Filter Bag Size | 180*810mm/7.1*31.9in |
| Height Range | 1145-1345mm/45.1-52.9in |
| Support Feet Length | 570mm/22.4in |
| Center Straight Barrel Length | 860mm/33.86in |
| Distance from the Center of the Inlet to the Opening Side | 90mm/3.54in |
| Product Diameter | 219mm/8.62in |
| Filtration Area | 0.46m²/4.95ft² |
| Reference Flow Rate | 30-40t/h |
| Inlet/ Outlet Female Thread Size | NPT 2″ |
| Maximum Pressure | 1.0MPa |
| Thread Diameter | M14x1.5 |
| Thread Height | 15mm/0.59in |
| Total Height | 90±2mm/3.54±0.08in |
| Dial Diameter | 68±1mm/2.68±0.04in |
| Dial Thickness | 28±2mm/1.1±0.08in |
| Accuracy | 2.5 Level |
| Ambient Temperature | -20~80℃/-4~176℉ |
| Net Weight | 20.43kg/45.04lbs |
