EST 240068 Amplifier Terminal Panel P/N

Specifications

Brand: EST
Part Number: 240068

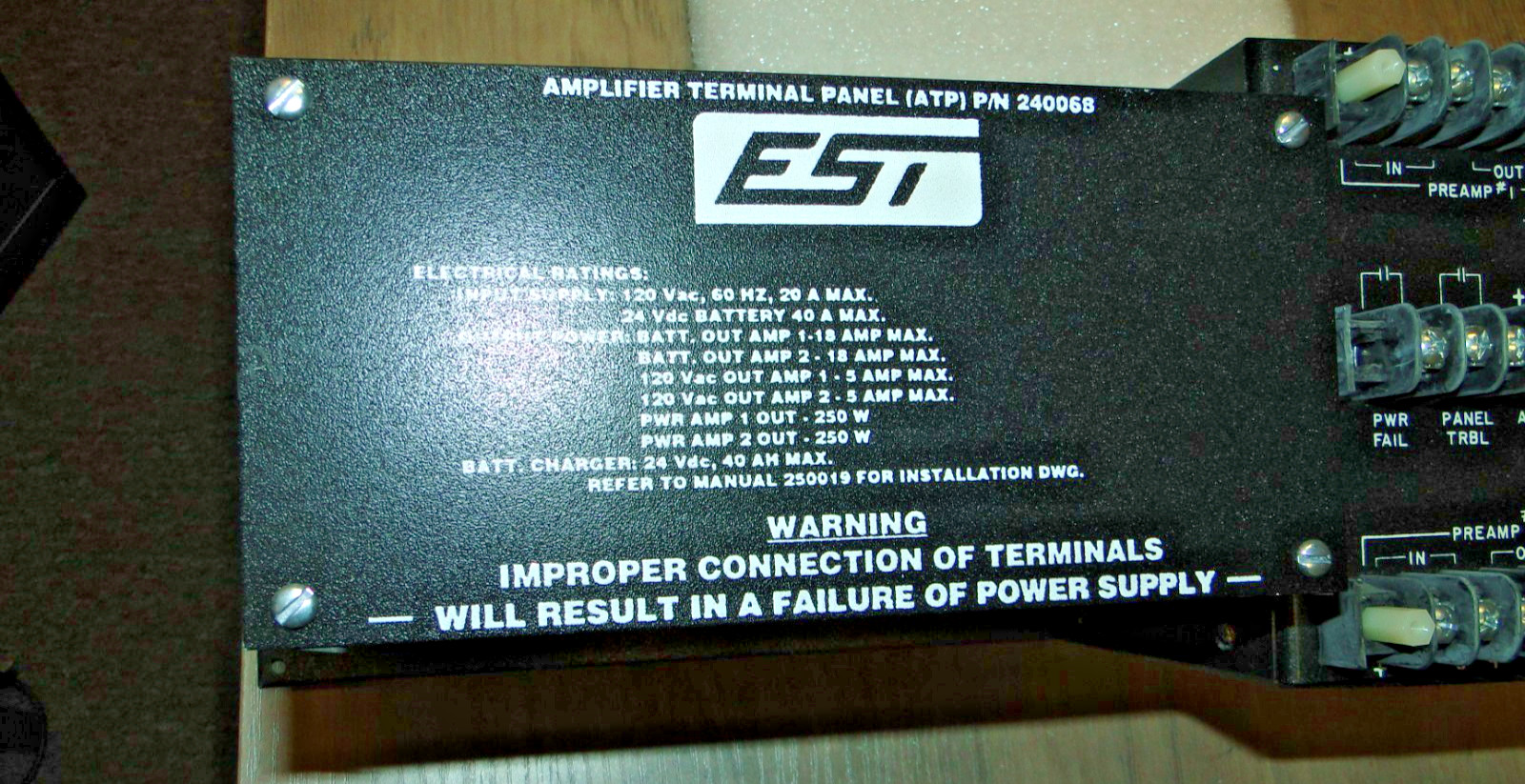

EST Amplifier Terminal Panel P/N 240068

Pre owned/ great condition/ pulled from working environment

The Amplifier Terminal Panel is a 19 in rack mount device that interfaces the Audio Power Amplifiers to the control panel. The Amplifier Terminal Panel monitors primary AC power to Audio power amplifiers. If the amplifiers are active and primary power fails, the ATP transfers the amplifiers to battery power. The ATP contains a battery charger capable of charging 40 AH batteries. The ATP contains terminals to connect preamp signals from the control panel to the power amplifier for connection of the power amplifier output. The ATP is the originating point for the audio power risers.

The front panel of the ATP contains a green power LED, amber trouble LED and and amber trouble silenced LED. A momentary switch is available on the front panel for trouble silence. The ATP provides a battery saver feature that applies battery power to the amplifiers only when two conditions are met; low or no AC power and a Fire Alarm or page request. This feature may reduce the battery size requirements by a factor of 8.

Product Features

Built in battery charger
Charges and supervises 40 AH batteries
Battery saver feature
Low standby current
High efficiency switch mode power supply
Ground fault detection circuitry
Terminates 2 audio power amplifiers
Integral trouble buzzer with silence switch
Supervises low or no AC power
Standard 19 in rack mount
Convenient AC power receptacle for two amplifiers
Black front plate
Trouble and Silenced LEDs
