Business & Industrial|Electrical Equipment & Supplies|Transformers|Current Transformers

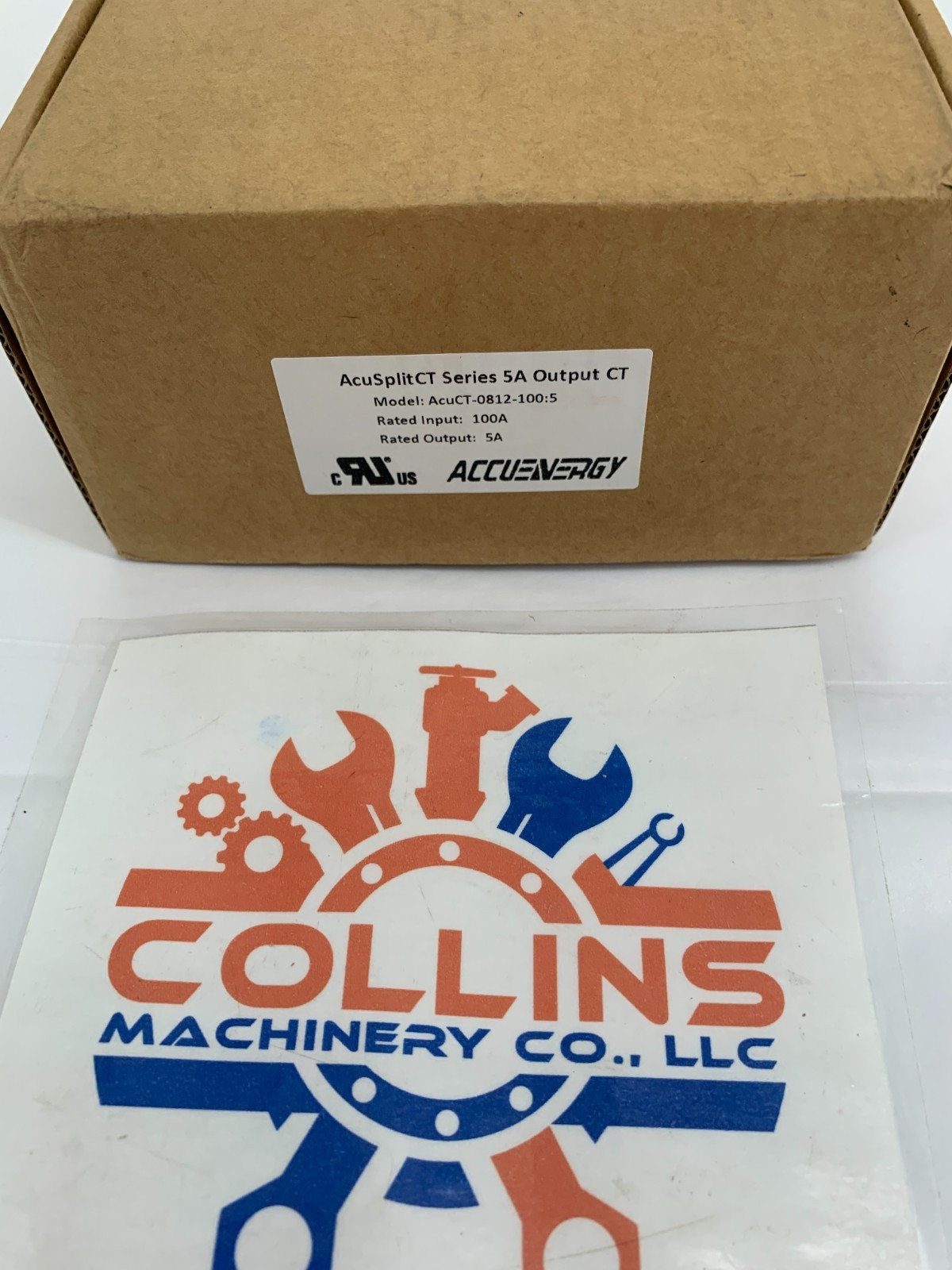

Accuenergy AcuCT-0812-100:5 Revenue Grade Split-Core Current Transformer 100A/5A
USD
$50.09
Seller:
bocollin4
99.9% positive
(12,061 reviews)
Adrian, US
Only 4 left
US
Shipping
Standard Shipping
FREE
Request Quote
View on eBay
As an eBay Partner Network Affiliate, I earn from qualifying purchases.
Secure Transaction
Fast Response
Quality Guarantee
Specifications
| Power Rating | Rated for 1.5VA maximum burden |
|---|---|
| Minimum Operating Frequency | 50 Hz |
| Plug Type | Not Applicable (None) |
| Primary Current Rating | 100A AC |
| MPN | AcuCT-0812-100:5 |
| Item Length | 3.50" x 4.13" x 1.57" (89.0mm x 105.0mm x 40.0mm) |
| Turns Ratio | 100:5 (Equivalent to a 20:1 ratio) |
| Unit Type | Unit |
| Item Height | 3.50" x 4.13" x 1.57" (89.0mm x 105.0mm x 40.0mm) |
| Secondary Voltage Rating (DC) | 0 VDC (Not Rated for DC) |
| Number of Outlets | 0 |
| Secondary Voltage Rating (AC) | 3.0KV withstand voltage rating (1mA for 1 minute) |
| Secondary Impedance | 0.06 Ohms (Ω) |
| Unit Quantity | 1 |
| Item Width | 3.50" x 4.13" x 1.57" (89.0mm x 105.0mm x 40.0mm) |
| Mounting Style | Surface/Wall Mount, DIN-Rail Mount, Direct Cable Clamp |
| Current Conversion | Converts 100A AC down to 5A AC |
| Termination Style | Terminal Output |
| Color | Black |
| Number of Phases | 1 |
| Conversion Function | Step-down electromagnetic induction current transformation |
| Brand | Accuenergy |
| Primary Voltage Rating (AC) | 600VAC (Insulation class rating) |
| Series | AcuCT 5A Series (specifically the AcuCT-0812 sub-series) |
| Type | Split-Core Current Transformer (CT) |
| IP Rating | IP20 equivalent |
| Primary Voltage Rating (DC) | 0 VDC (Not Rated for DC) |
| Model | Accuenergy AcuCT-0812-100:5 |
| Primary Impedance | Inherently negligible (near 0 Ω) |
| Maximum Operating Frequency | 60 Hz |
| Outlet Type | Not Applicable (None) |
| Secondary Current Rating | 5A AC |
| Country of Origin | China |
