The Following Items Are Included:

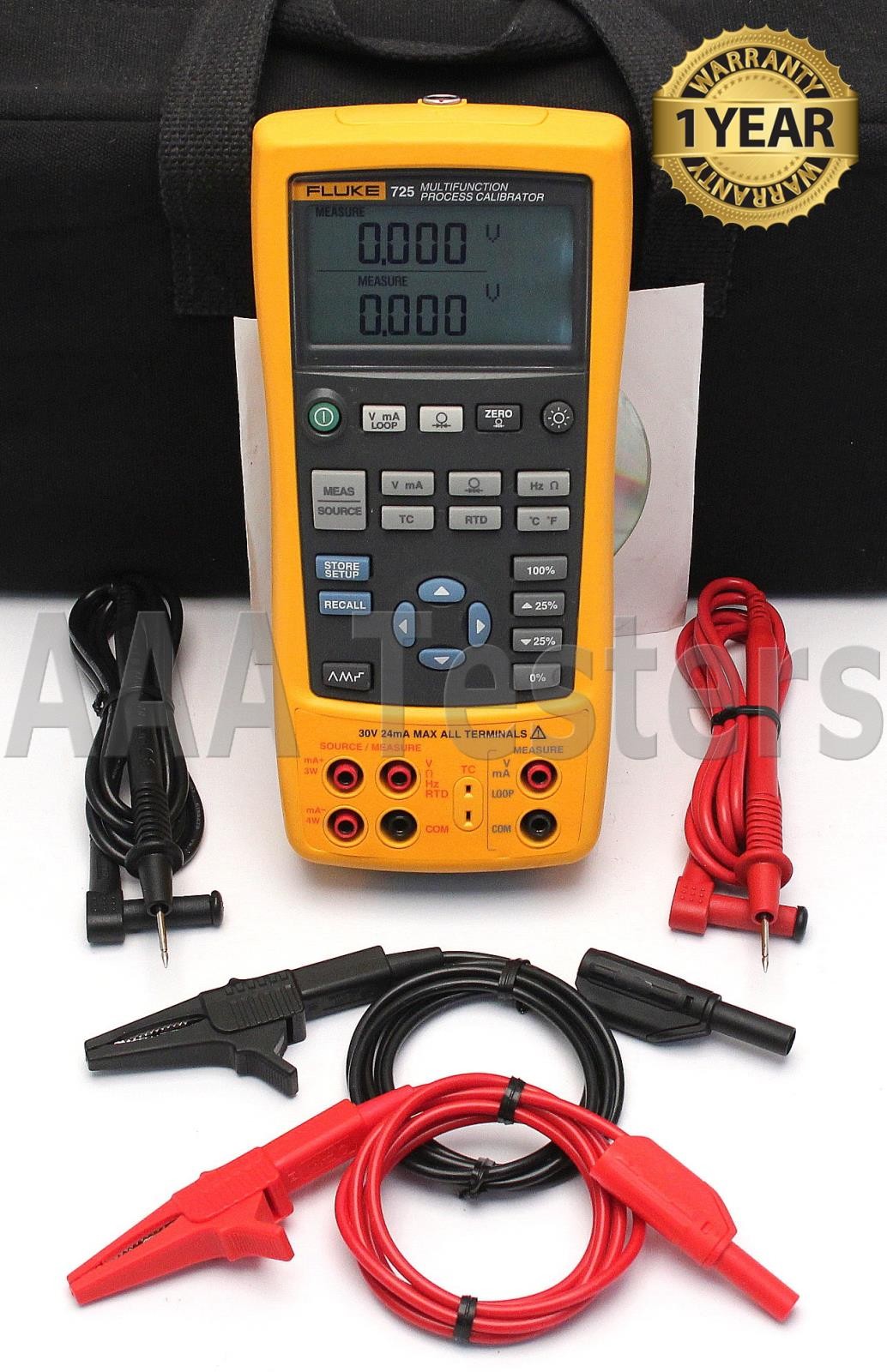

Fluke 725 Multifunction Process Calibrator (BC# 51025-L/T*)
(2) 1000V Hard Point Test Leads
(2) Banana To Alligator Clip Cables
User Manual On CD-ROM
Carrying Case (G)

BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS!

This Item Has A Current Calibration!

Fluke 725 Multifunction Process Calibrator

Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors and transmitters

Source/simulate volts, mA, thermocouples , RTDs, frequency, ohms, and pressure to calibrate transmitters

Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules

Perform fast linearity tests with auto- step and auto-ramp features

Includes Carrying Case & Accessories As Listed Above!

Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY

Take along the new Fluke 725 Multifunction Process Calibrator, and you're equipped to test and calibrate almost any process parameter. Measure and source mA, volts, temperature (RTDs and thermocouples), frequency, ohms, and pressure, using optional pressure modules.
Do you need to calibrate transmitters? The 725's split display lets you view input and output values simultaneously. For valve and I/P tests, you can source mA while measuring pressure. The 725 has auto-stepping and auto-ramping for remote testing, plus 25% stepping for fast linearity tests.
From the moment you pick it up, the Fluke 725 is ready to perform. Its simple controls, without menus, make operation easy. Its memory functions make set up fast. And its rugged design lets it work as hard as you do.

The Fluke 725 Multifunction Process Calibrator is a powerful, yet easy-to-use field calibrator. Use the measure and source functions to test and calibrate almost any process parameter.

Small, streamlined shape makes it easy to carry
Rugged, reliable design stands up to field use
Easy to read measure/source screen lets you view input and output simultaneously
Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors and transmitters
Source/simulate volts, mA, thermocouples , RTDs, frequency, ohms, and pressure to calibrate transmitters
Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
Source mA with simultaneous pressure measurement to conduct valve and I/P tests
Support flow meter testing with frequency and CPM functions
Perform fast linearity tests with auto- step and auto-ramp features
Power transmitters during test using loop supply with simultaneous mA measurement
Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 10 ms
Store frequently used test setups for later use
Backlight lets you work in poor light
Large battery capacity of four AA cells
Battery door for easy changes

Specifications:

Measurement Accuracy

Voltage DC

30.000 V	0.02%+ 2 counts (upper display)
30.000 V	0.02%+ 2 counts (lower display)
100.00 mV	0.02%+ 2 counts
-10.00 mV to 75.00 mV	0.025 % + 1 count (via TC connector)

Current DC

24.000 mA

0.02%+ 2 counts

Resistance

0.0 to 400.0 Ω	0.1Ω (4-wire), 0.15Ω (2- and 3-wire)
401 to 1500 Ω	0.5Ω (4-wire), 1Ω (2- and 3-wire)
1500 to 3200 Ω	1Ω (4-wire), 1.5Ω (2- and 3-wire)

Frequency

2.0 to 1000.0 CPM	0.05 % + 1 count
1.0 to 1100.0 Hz	0.05 % + 1 count
1.00 to 10.00 kHz	0.05 % + 1 count
Sensitivity	1 V peak-to-peak-minimum

Pressure

Accuracy	from 0.025% of range using any of 29 pressure modules.
	(for detailed specifications refer to pressure modules in options and accessories)
	Modules available for differential, gage, vacuum, absolute, dual and high pressure.

Source Accuracy

Voltage DC

100.00 mV	0.02%+2 counts
10.000 V	0.02%+2 counts
-10.00 mV to 75.00 mV	0.025 % + 1 count (via TC connector)

Current DC

24.000 mA (Source)	0.02%+ 2 counts
24.000 mA (Simulate)	0.02%+ 2 counts

Resistance

15.0 to 400.0 Ω	0.15 Ω (exc. current 0.15 to 0.5 mA), 0.1 Ω (exc. current 0.5 to 2 mA)
401 to 1500 Ω	0.5 Ω(excitation current 0.05 to 0.8 mA)
1500 to 3200 Ω	1 Ω(excitation current 0.05 to 0.4 mA)

Frequency

2.0 to 1000.0 CPM	0.05%
1.0 to 1100.0 Hz	0.05%
1.00 to 10.00 kHz	0.25%
Waveform:	5 V p-p squarewave, -0.1 V offset

RTDs and Thermocouples

Measure Accuracy:

NI-120	0.2 °C
PT-100 (385)	0.33 °C
PT-100 (393)	0.3 °C
PT-100 (JIS)	0.3 °C
PT-200 (385)	0.2 °C
PT-500 (385)	0.3 °C
PT-1000 (385)	0.2 °C
Resolution:	0.1 °C
J:	0.7 °C
K:	0.8 °C
T:	0.8 °C
E:	0.7 °C
R:	1.8 °C
S:	1.5 °C
B:	1.4 °C
L:	0.7 °C
U:	0.75 °C
N:	0.9 °C
Resolution	J, K, T, E, L, N, U: 0.1 °C, 0.1 °F B, R, S: 1 °C, 1 °F
XK	0.6°C
BP	1.2°C

Source Accuracy:

NI-120	0.2 °C
PT-100 (385)	0.33 °C
PT-100 (393)	0.3 °C
PT-100 (JIS)	0.3 °C
PT-200 (385)	0.2 °C
PT-500 (385)	0.3 °C
PT-1000 (385)	0.2 °C
Resolution:	0.1 °C
Note:	Accuracy stated for 4-wire measurement.
J:	0.7 °C
K:	0.8 °C
T:	0.8 °C
E:	0.7 °C
R:	1.4 °C
S:	1.5 °C
B:	1.4 °C
L:	0.7 °C
U:	0.75 °C
N:	0.9 °C
Resolution	J, K, T, E, L, N, U: 0.1 °C, B, R, S: 1 °C
XK	0.6°C
BP	1.2°C

Specifications

Ramp Functions

Source functions:	Voltage, current, resistance, frequency, temperature
Ramps	Slow ramp, Fast ramp, 25% step-ramp

Loop Power Function

Voltage:	24 V
Accuracy:	10%
Maximum current:	22 mA, short circuit protected

Step Functions

Source functions:	Voltage, current, resistance, frequency, temperature
Steps	25% of range, 100% of range

Environmental Specifications

Operating Temperature

-10 °C to +55 °C

Storage Temperature

-20 °C to 71 °C

Operating Altitude

3000 m

Safety Specifications

Agency Approvals

EN 61010-1:1993, ANSI/ISA S82.01-1994; CAN/CSA C22.2 No 1010.1:1992

Mechanical & General Specifications

Size

130 x 236 x 61 mm

Weight

0.65 kg

Batteries

4 AA alkaline batteries

Battery Replacement

Separate battery compartment, accessable without breaking calibration seal

Side port connections

Pressure module connector, also used for remote real-time programming

For full Fluke 725 product specifications, please click here: Fluke 725
