Business & Industrial|HVAC & Refrigeration|Refrigeration Equipment|Chillers

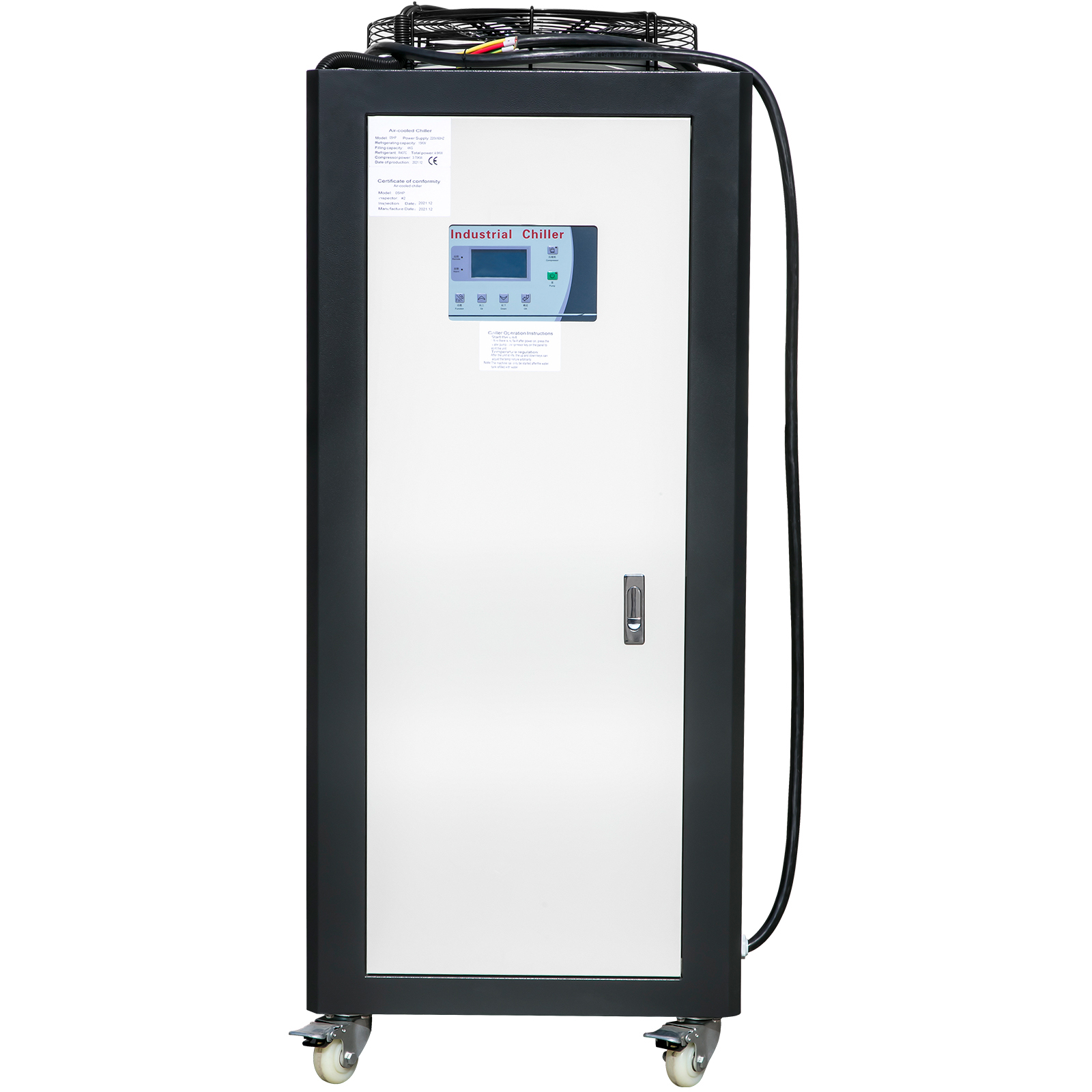

Uimoso 5/6/8/15/20 ton Air-cooled Industrial Water Chiller 5HP to 25HP
USD
$5,249.99
Seller:
bungolawing
99.8% positive
(105,403 reviews)
Perth Amboy, US
Out of Stock
US
Shipping
Standard Shipping
FREE
Request Quote
View on eBay
As an eBay Partner Network Affiliate, I earn from qualifying purchases.
Secure Transaction
Fast Response
Quality Guarantee
Specifications
| Compressor Power | 15HP |
|---|---|
| Brand | Uimoso |

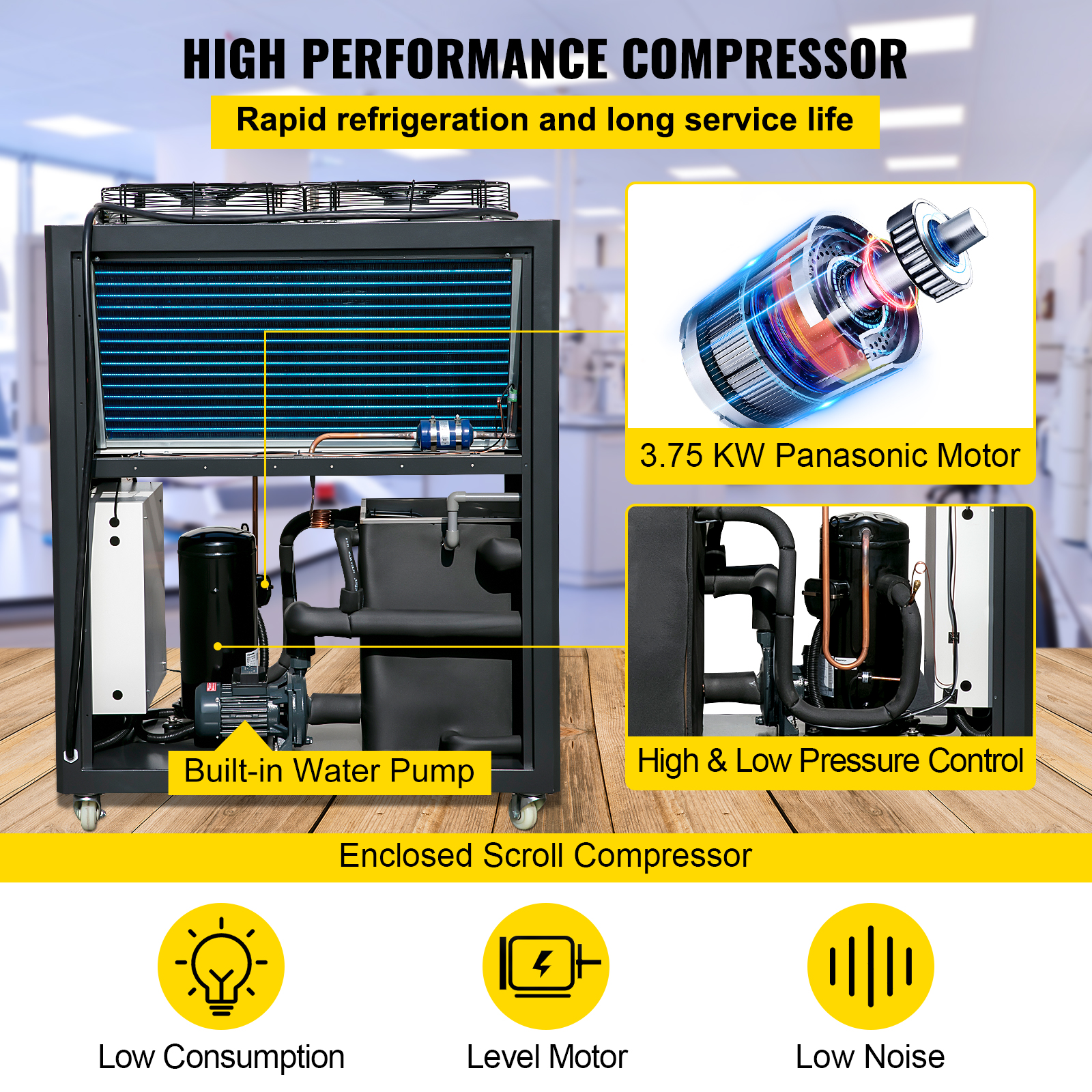

| Compressor Type | Fully Enclosed Vortex |
| Condensation Temperature(type 1-3/4-7) | 45℃/40℃ |
| Item Dimensions (type 1,2/3) | 43.3 x 21.7 x 51.2 in / 63 x 30.7 x 67 in |
| Pipe Diameter | 0.2 in / 5 mm |
| Cooling Capacity(type 1/2/3/4/5/6/7) | 15KW / 18KW / 45KW / 17.55KW / 35.16KW / 52.74KW / 70.32KW |
| Heat Exchange Tube Material | Copper |
| Net Weight(type 1/2/3/4) | 397 lbs / 463 lbs / 1345 lbs / 430 lbs |
| Pump Motor Power(type 2/3) | 0.5HP/2HP |
| Operating Ambient Temperature(type 4,5/6,7) | ≤40℃/≤ 45℃ |
| Power(type 1-3/4,5/6,7) | 220V / 60Hz / 3P / 440V/60 Hz / 480V/60Hz |
| Pump Head | 62.34 ft / 19 m |
| Fan Motor Power(type 1,2/3/4) | 0.36KW/0.64KW/0.55 kW |
| Pump Power(type 2,5/3/4/6/7) | 0.75KW/2.2KW/0.37 kW/1.5 kW/2.3 kW |
| Compressor Motor Power(type 1/2,4/3/5/6/7) | 5HP / 6HP / 15HP / 10 HP/13 HP/20 HP |
| Regulate Temperature(type 1-3/4-7) | 5℃ - 25℃/5℃ to 30℃ |
| Total Power(type 4/5/6/7) | 6 HP/12.3 HP/16.67 HP/25 HP |
| Item Model Number(type 4/5/6/7) | YSD-6AD/GW532A-8D/GW532A-15D/GW532A-20D |
| Coolant Type(type 2) | R--407 |
| Tank Capacity(type 1,2/3/4/5/6/7) | 53L/150L/60 L/140 L/200 L/250 L |
