Model Number: T1-680-05B-05B-YIIIP, T168005B05BYIIIP, T1-YIIIP-680-05B-05B, T1YIIIP68005B05B

Feature:

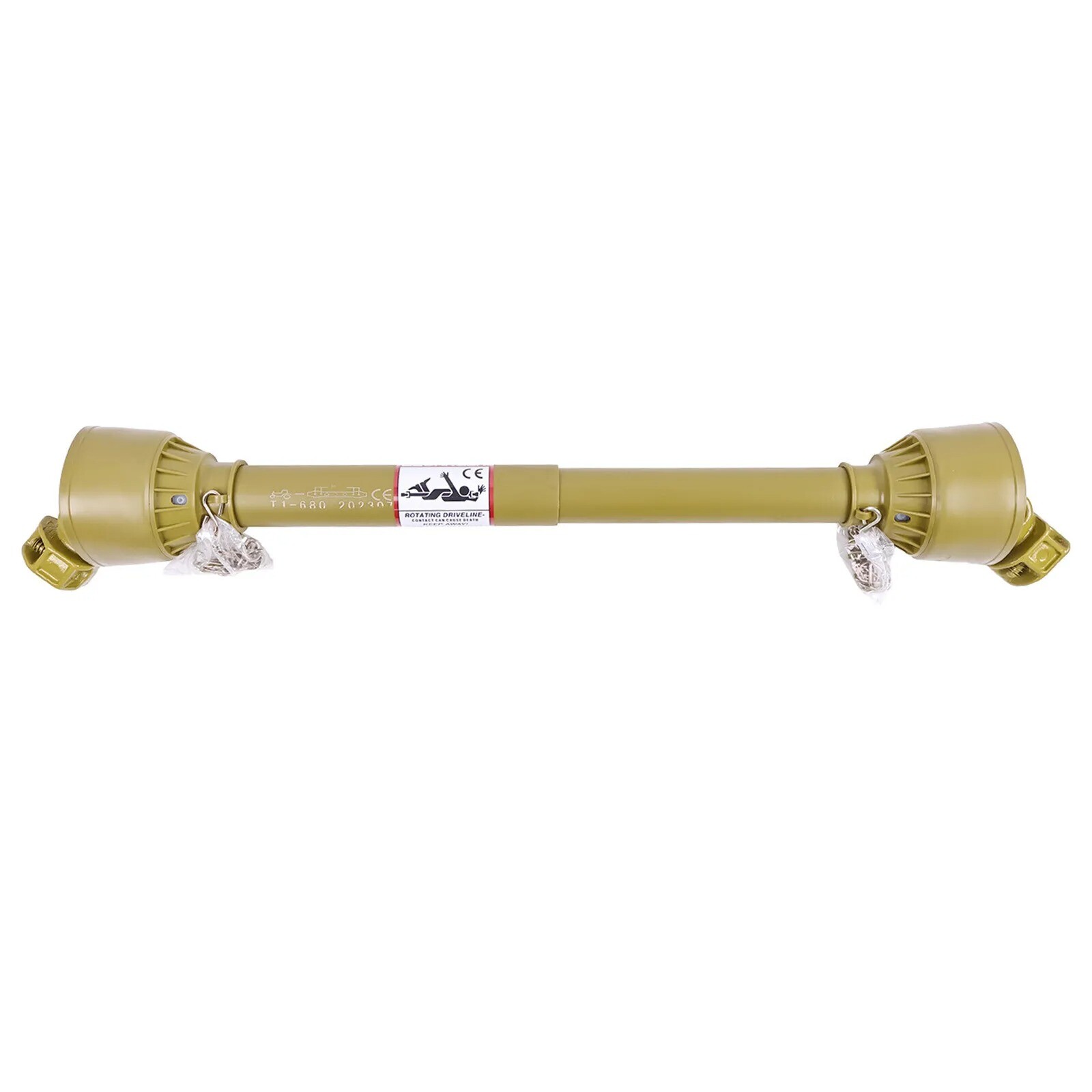

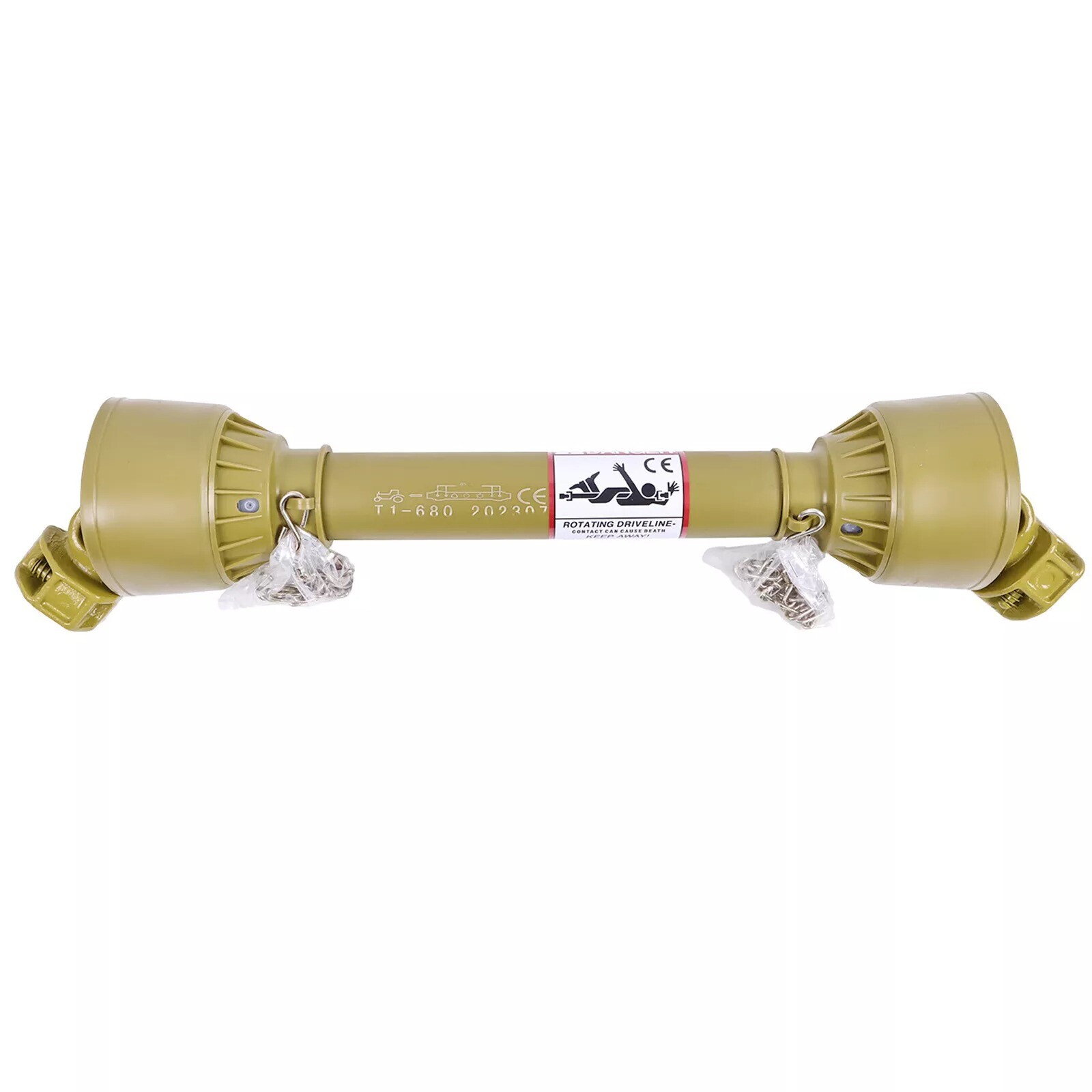

1. This is a well-forged series1 driveline shaft with CE certification. It consists of a solid 20CrMnTi carburized steel universal joint, a Q345 steel tube, and a sturdy plastic shield. Our PTO shaft is durable and robust in working with all kinds of agricultural machinery.
2. 1 3/8" X 6 Spline Ends: Constructed with 6-spline tractor end and 6-spline implement end, our brush hog PTO shaft has a standard size of 1-3/8 inches. It can match perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery.
3. Easy Assembly ＆ Safer Use: As a high-efficient power transmission tool, our PTO extender shaft can be easily assembled for effortless direct replacement. The security chain and sturdy shield eliminate potential dangers in the transmission process.

Specification:
Series: 1
Certificate: CE Certification
Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic
Tractor End: 1-3/8" x 6 Spline
Implement End: 1-3/8" x 6 Spline
Compressed Length: 26.8" / 680 mm
Extended Overall Length: 35.4" / 900 mm
At 540RPM: 16hp, 12Kw, 210Nm
At 1000RPM: 24hp, 18Kw, 170Nm

Application:
Fit For Mower, Wood Chipper, Rotary Tiller, Rotary Cutter, Brush Cutter, Tractor, Fertilizer Spreader

On Aug 19, 2024 at 03:03:35 PDT, seller added the following information:

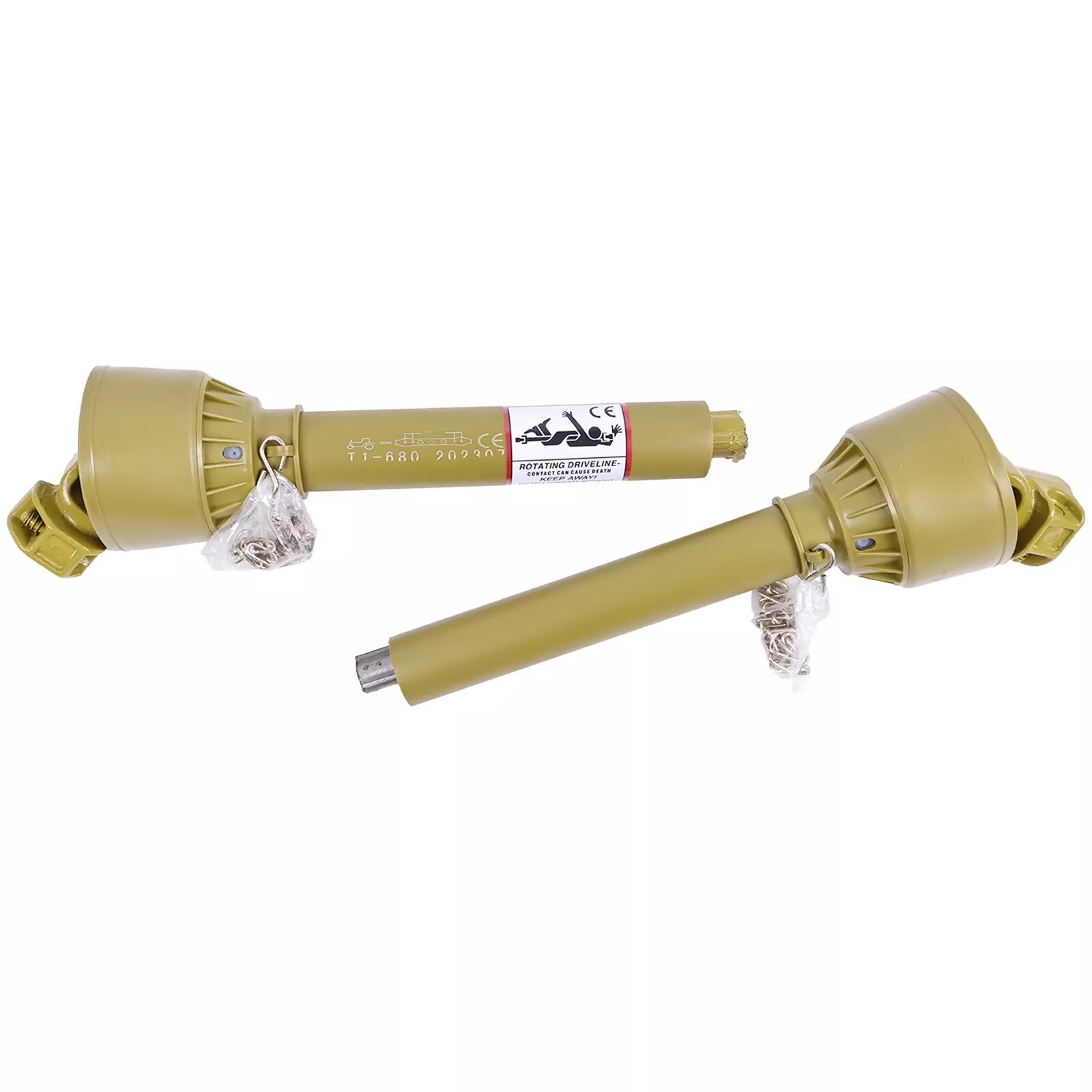

For Tractor PTO Shaft Driveshaft for 1-3/8" x 6 Spline Both Ends 26.8"-35.4"
