NOS -

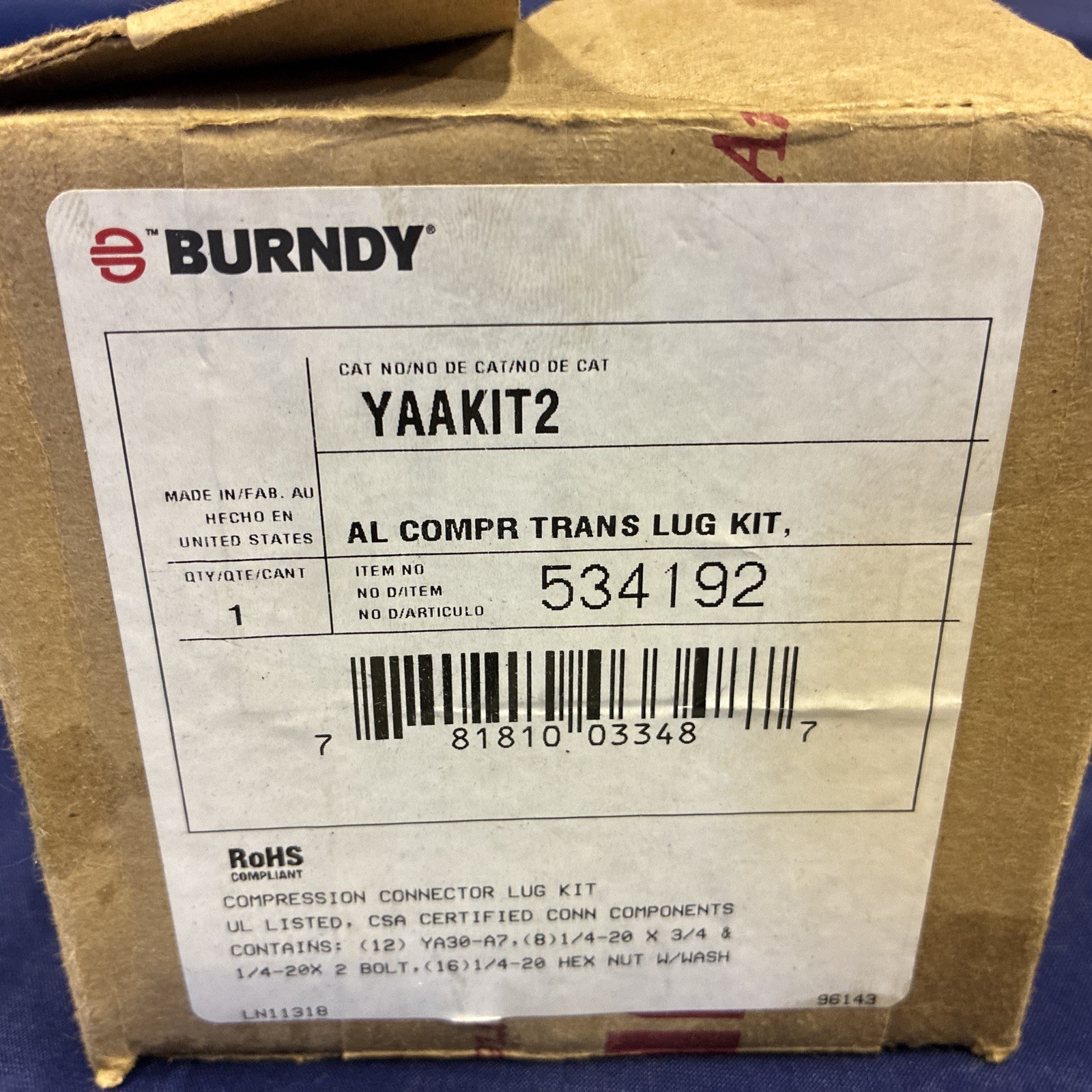

Original packaging in rough shape from long term storage - parts are new but floated around in loose box.

Conductor Size: 2/0 AWG - 300 Kcmil

Kit Includes:

12 - Aluminum compression terminal, 300 Kcmil (stud hole for 1/4” hardware)

8 - 1/4 - 20 x 3/4” long hex, long flange bolt

16 - 1/4 - 20 hex. Nut with flange rim conical washer

8 - 1/4 - 20x2” Long Hex, Head flange bolt

Hardware plastic bag

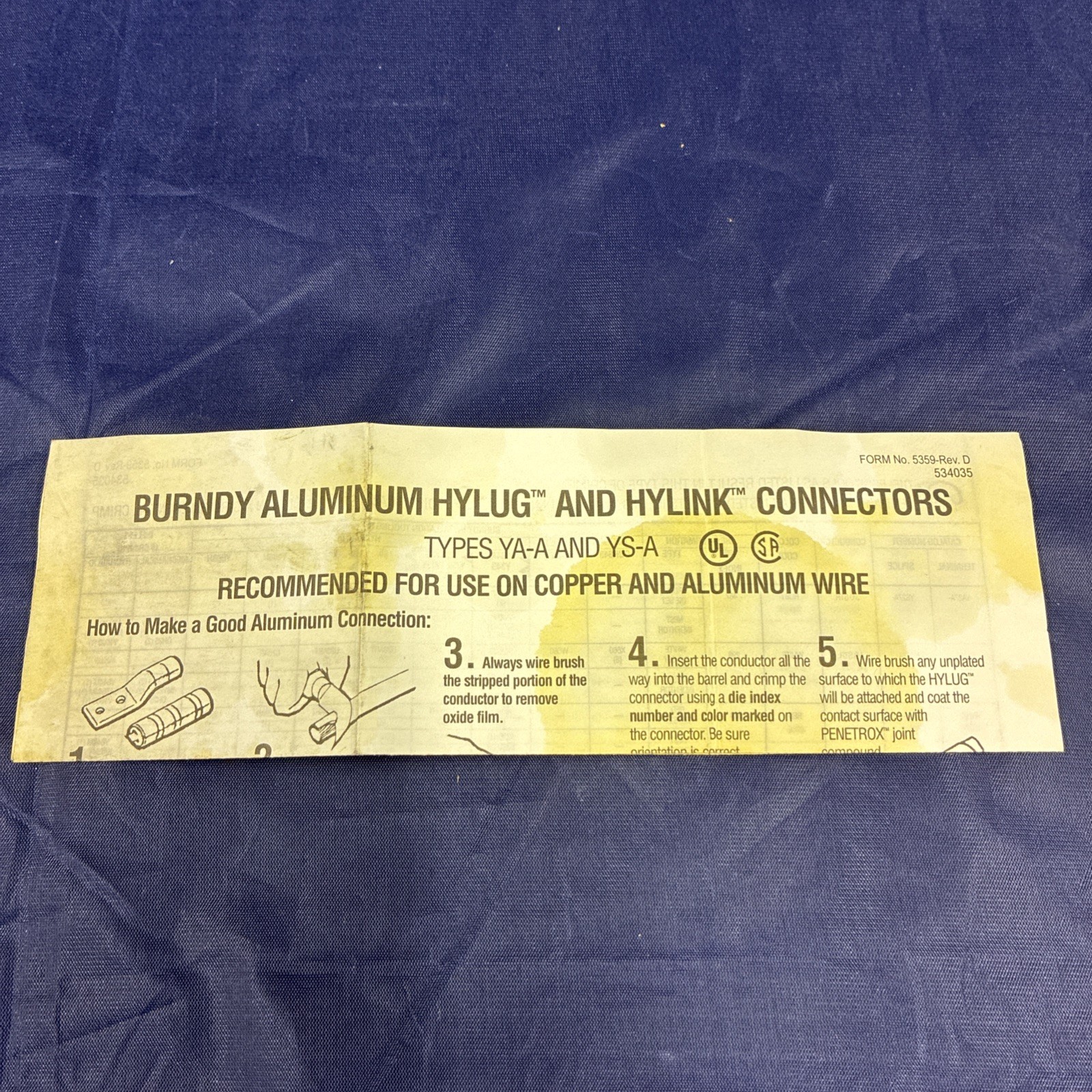

Instructions

Description :

Transformer Lug Kit, 2/0 AWG-300 kcmil.

Conductor:

• AL Str Size: 2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil

• AL Str Size Range: 2/0 AWG - 300 kcmil

• Copper Str Size: 2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil

• Copper Str Size Range: 2/0 AWG - 300 kcmil

Certifications and Compliance:

• CSA Approved: No

• ETL: No

• UL Recognized: No

• cULus: No

• Industry Standard(s): UL 486A-486B

• Standards: Industry Standards Met: UL 486A-486B

• Standards: RoHS Compliance Status: CM

• UL Listed: Yes

Specification :

• Conductor: 2/0 AWG to 300 MCM

• Color Code: Blue

• Die Index: 470

• Finish Type: Tin-Plated

• Material: Aluminum

• Number of Holes: 1

• Tongue Type: Standard

• Plated: Y

• Plating Type: Tin - Electro Plated

• Dimension (B): 1.53 inches

• Dimension (D): 1.37 inches

• Dimension (Hole Size): 0.28 inches

• Dimension (Length Overall): 3.90 inches

• Dimension (N): 0.63 inches

• Dimension (Outside Diameter): 1.01 inches

• Dimension (Pad Width): 1.38 inches

• Dimension (Z): 0.74 inches

• Physical Attribute: Straight

• Voltage Rating: 35 kV

• Part Number: YAAKIT2

Brand	Burndy
Type	Lug Kit
MPN	YAAKIT2 534192
UPC	0781810033487

Burndy YAAKIT2 534192 Transformer Lug Kit 2/0 AWG 300kcmil NOS
