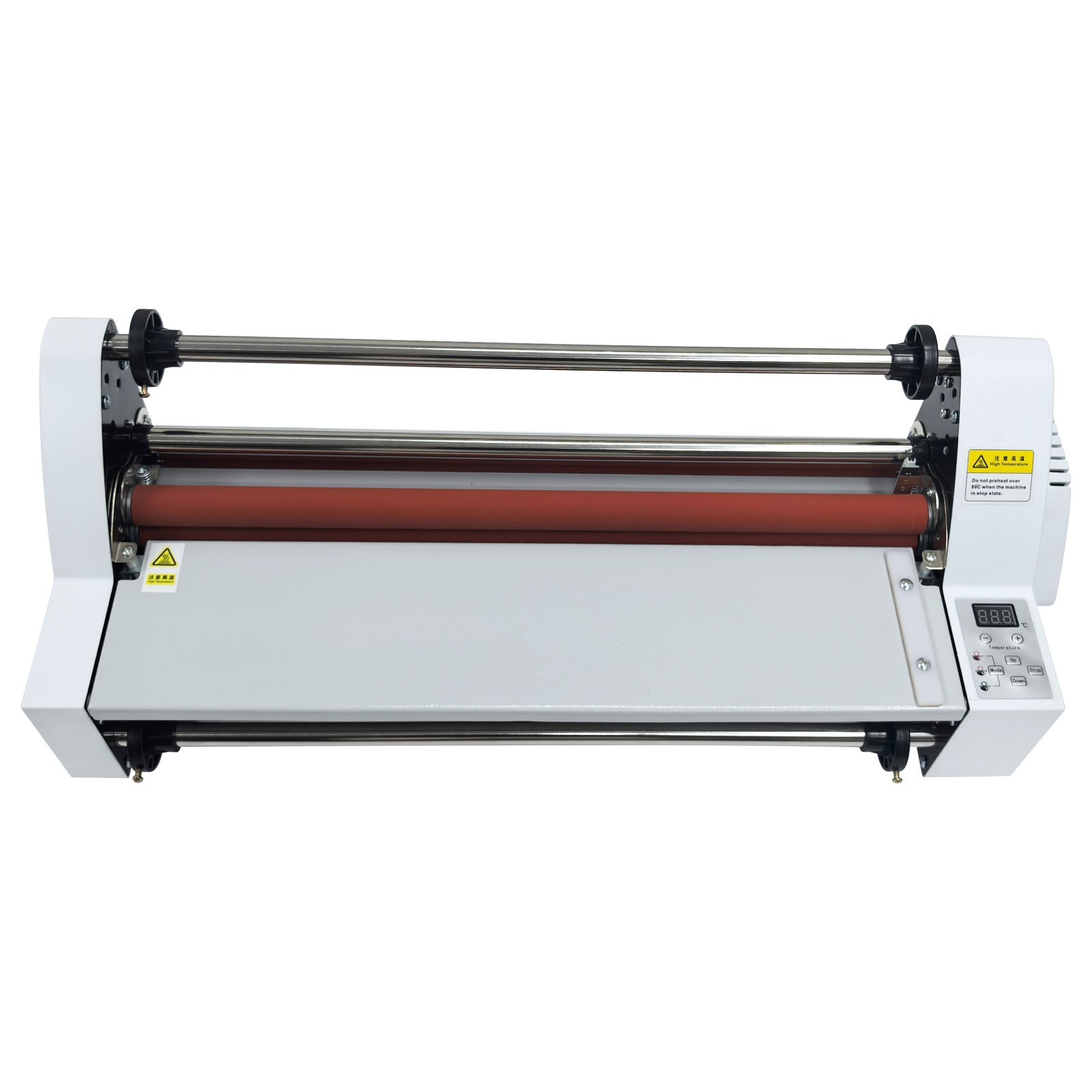

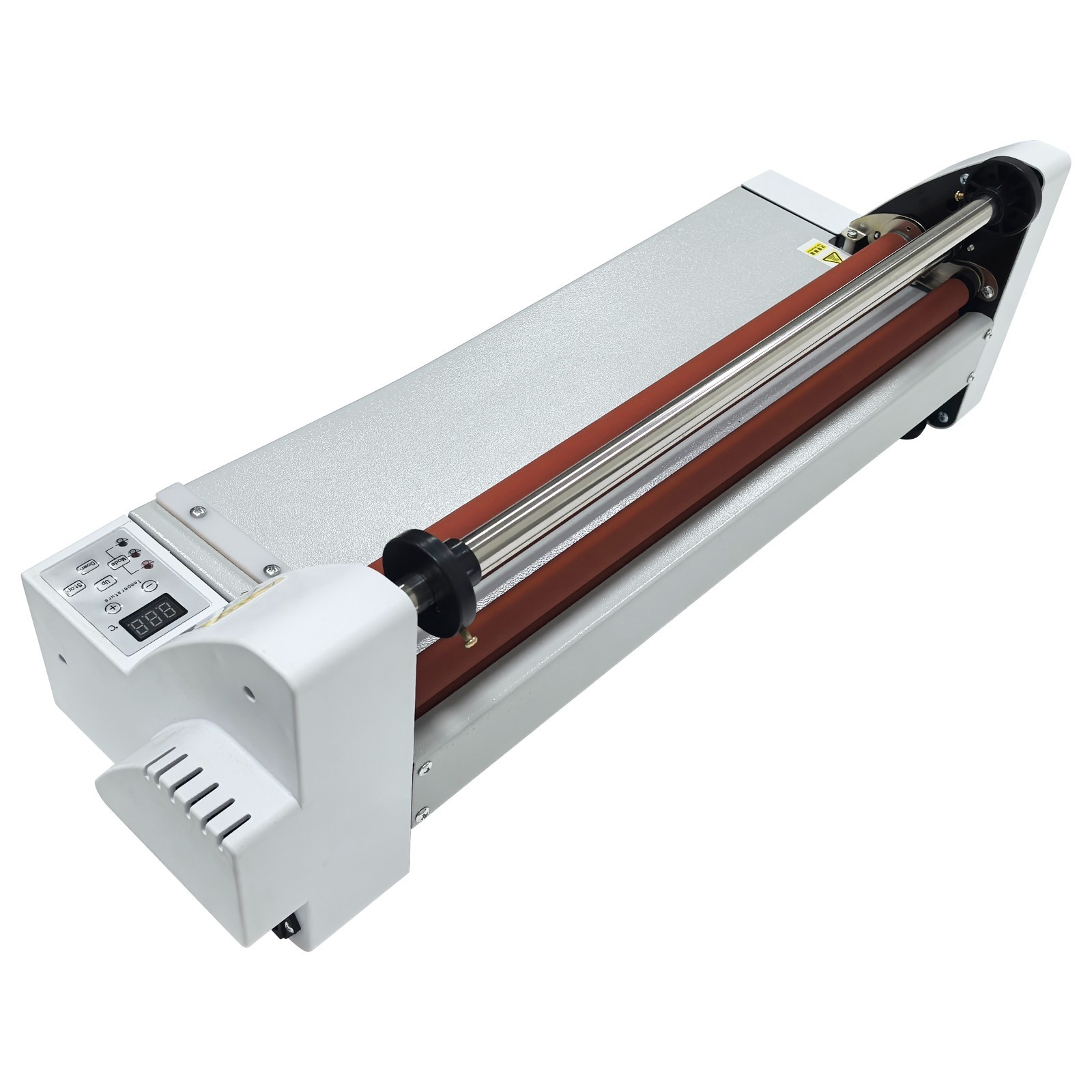

350mm/13'' Roll Laminator Single-sided & Double-sided Laminating Machine 110V

Product Overview

The laminating machine is a professional device for attaching membranes to the surfaces of various materials such as paper sheets, pictures and cards. By means of the single-sided and double-sided laminating technology and temperature control operation, the membranes and materials are combined together, the effects of water resistance, stain prevention, fading resistance and wear resistance are achieved, and the visual quality is also improved.

Note：No laminating film is included in the product. The laminating film in the picture is just an example.

Product Parameters

Model	V350
Laminating speed	1.1m/min
Maximum laminating width	350mm (13.78 inch)
Laminating weight	80-400GSM
Maximum laminating temperature	160˚C
Film core size	1 inch
Laminating mode	Single-sided and double-sided laminating
Maximum power consumption	700W
Power	110V 60Hz
Product size	52.5x20.5x21cm (20.67x8.07x8.27 inch)
Net weight	6.7kg (14.77LB)

Attention

1. Please ensure that the power supply should comply with the nameplate on the machine.

2. Do not use the machine in a damp or humid environment. Use it in a correct and well ventilated location at the temperature of 2-40˚C and the humidity of 35-85%.

3. Do not touch red heating rollers at high temperatures to avoid scalds. Please wear protective gloves to operate.

4. Do not allow young children or non-professionals to operate the machine.

5. Keep hands, clothing and tools away from moving parts while the machine is in operation.

6. Please contact the after-sales service personnel if the machine has a fault or needs to be repaired.

Product Features

The control panel has a compact structure and well integrals multiple functions. The operator can easily control the laminator through the control panel, the user experience is high, and the practicability is high.

Digital Display
The laminator is equipped with a digital display and has a protection function and an automatic memory function. It can be protected if the sensor has faults. The last temperature can be stored automatically by the laminator.
　
Temperature Control
The laminating temperature can be controlled and adjusted within the range of 1-160 DEG C by pressing the ‘-’ and ‘+’ buttons. The current temperature of the heated rollers can also be displayed on the digital display. A buzzer will sound when the machine reaches the preset temperature. Temperature adjustment and control are easy and convenient.
　
Operation Buttons
There are 3 operation buttons on the control panel.
（1）Press the ‘Up’ buttons, the machine starts to operate normally.
（2）When the paper is rolled into the machine accidentally, the operator can press the ‘Down’ button, the rollers reversely rotate to push the paper back, and the paper can be taken out.
（3）Press the ‘Stop’ button, the machine stops running.
　
Mode Selection
The laminating machine has 3 operating modes, and the operator can press the ‘Mode’ button to select the operating modes so as to conduct the required laminating operation.
（1）Both rollers are heated to conduct double-sided and pouch laminating operation.
（2）The top roller is heated to conduct single-sided laminating operation.
（3）Both rollers are not heated to conduct cold laminating operation.

The two tension adjustment screws are designed for the laminating machine, the tension of the film rolls can be adjusted properly as required, folds and bubbles can be effectively eliminated, the film can be kept tightened evenly, the material deviation and waste can be avoided, and the laminating effect can be well ensured.

Pressure adjusting screws and roller gap adjusting screws are arranged for the laminating rollers. The gap and pressure between the laminating rollers are adjustable so that the laminator can adapt to various materials with different thicknesses, bubbles can be well removed, and the attachment compaction effect can be improved.

Operation Method

1. Install the film rolls as required according to the guide diagram.

Note: Please pay attention to distinguish the basic side from the adhesive side of the film in the using process.
　

2. Connect the machine to the 110V power supply, turn on the power switch, set the required temperature, and select the laminating mode.
Note: The laminating temperature can be set within the range of 80-100 DEG C.
　

3. After reaching the required temperature, press the ‘Up’ button, manually fed the to-be-laminated materials onto the paper feeding platform and start to conduct laminating operation automatically.

4. Discharge the finished product from the paper discharging rollers.

5. Press the ‘Stop’ button to stop laminating, turn off the power switch and disconnect the power supply.

Application

The roll laminating machine can conduct single-sided and double-sided laminating operation efficiently and reliably, can adapt to various materials such as paper sheets, books, cards and photos and is suitable for different places, such as photo and text shops, DIY studios, photo studios, training institutions, offices and print shops. It is an optimum product for meeting different laminating demands of customers.

Item Number (122121): 1 x Roll Laminator 13'' 110V

Shipping & Handling

▲ Default shipping cost or free shipping service is only for the lower 48 United States by UPS Ground or USPS. Other areas or needs other shipping ways, please contact us.

▲ 6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.

Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.

Sales tax / Customs duties: Collected by ebay.

Return / Refund

Returns & Exchanges

▲ All returns should be made within 30 days of delivery date. Items must be in unused condition, with all original materials included with the shipment. A partial refund may be applied for opened or damaged items, depending on the condition.

▲ Items returned under the buyer’s remorse: The return shipping fee must be covered by the buyer; The original shipping cost will also be deducted from the refund. 15-30% restocking fee of the items purchase price will be charged.

Defective & Damaged Products

▲ If product was received damaged or not as described, please send us some pictures or videos, so we could well understand your problem, then solve them for you ASAP. Besides, it's much helpful for us to claim with UPS, remind our related department to pay much more attention to packaging later on. Hope for your understanding.

On Sep 9, 2025 at 18:27:35 PDT, seller added the following information:

Brand	Banfluxion
Model	V350
Paper Size	A3
MPN	122121

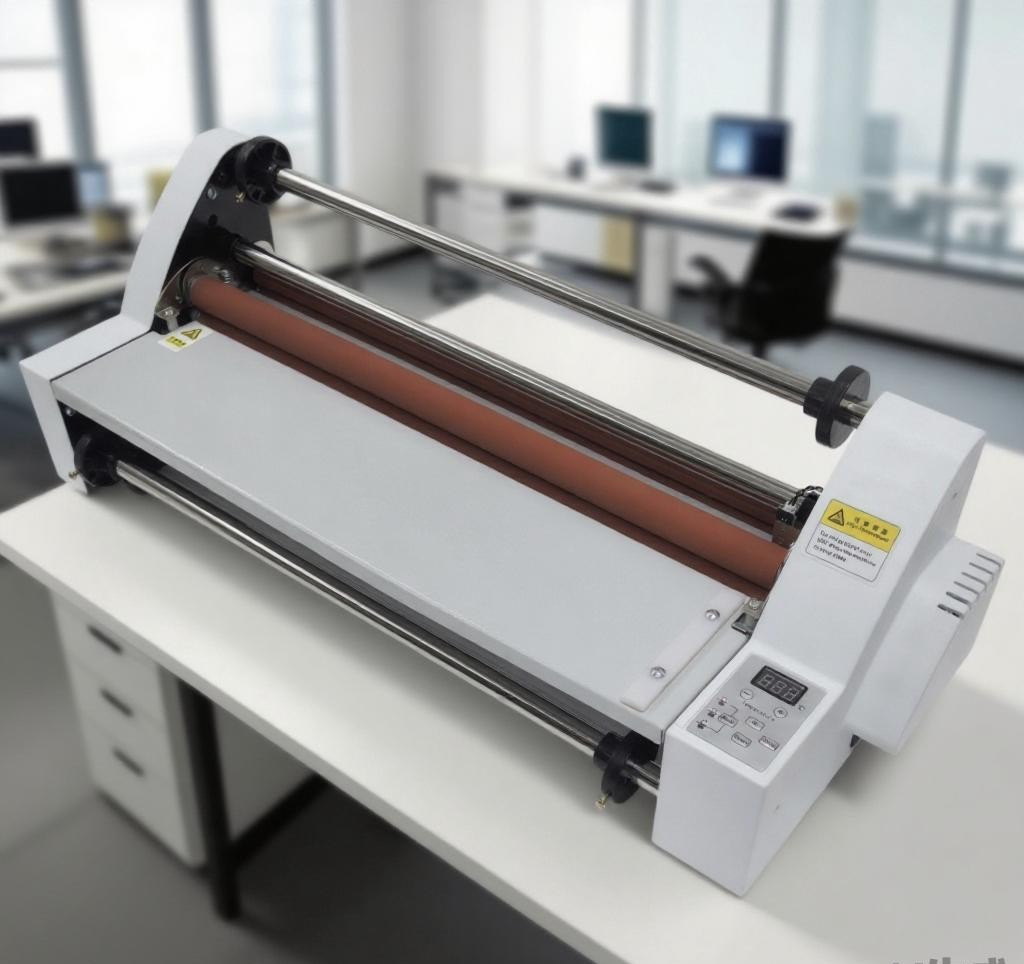

13.78in A3 Roll Laminator Single-sided&Double-sided Laminating Machine Picture
