TEGO ROOFING SUPPLY

St. Charles, MO 63301

We will work with you to give you the best deal on your EPDM, TPO and Roof accessory items!!

"Over 30 years experience in single ply flat roofing products!"

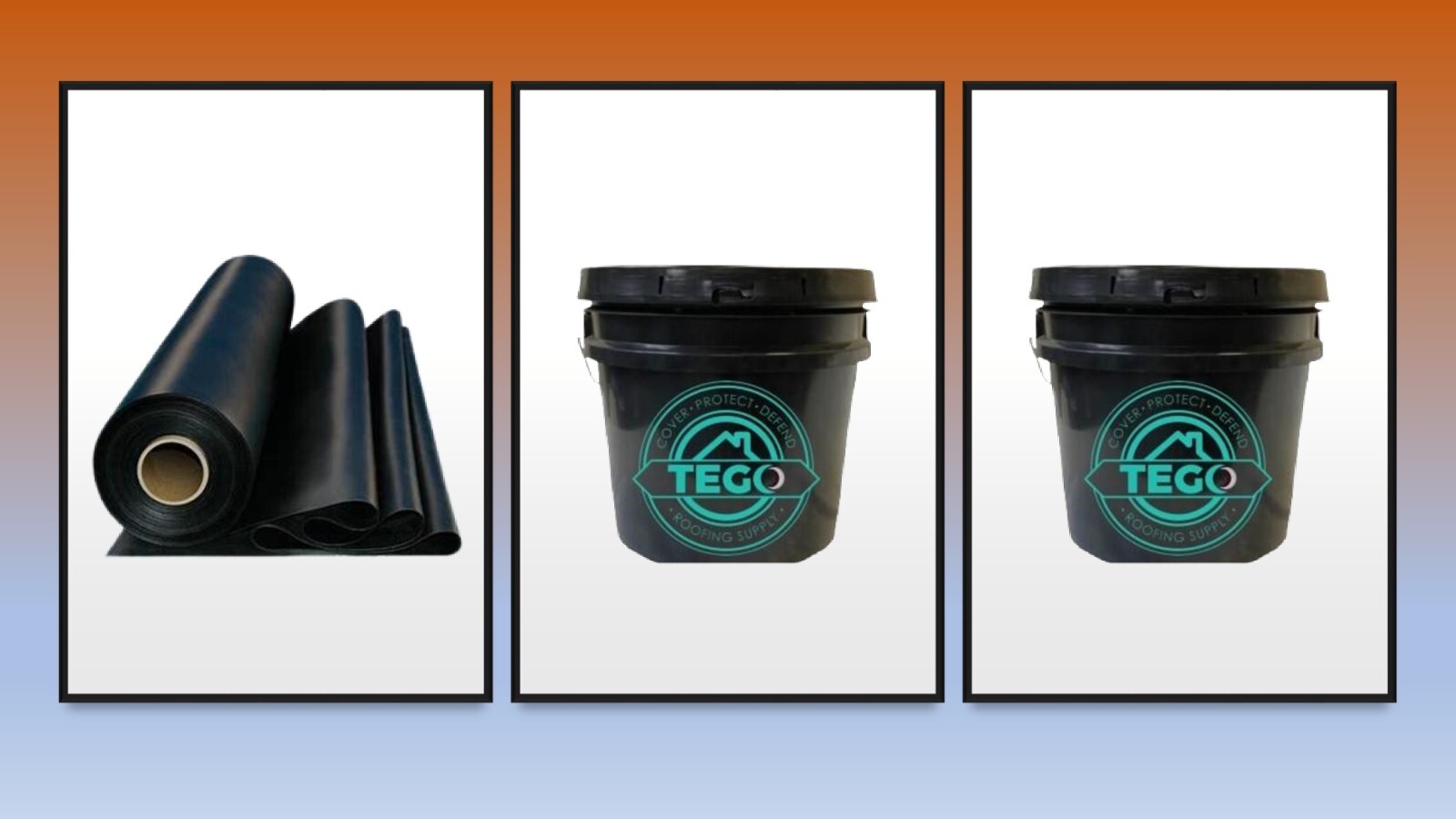

This 10' x 21' 60 Mil EPDM black rubber roofing

Includes the Adhesive!

2 - 1 gallon pails of latex bonding adhesive included

Method of Applying EPDM with heavy bodied latex bonding adhesive and 3” seam tape application as required.

· 1 Clean the roof surface of all debris and nails. Re-fasten any loose roof boards.

· 2 Fill any gaps larger than 3/8” inch with wooden strips. The EPDM cannot span gaps of more than 3/8" without risk of possible adhesion issues.

· 3 Start at the bottom of the roof and roll out the EPDM from one side of the roof to the other and let it sit for 10-15 minutes. Fold bottom half of the membrane onto the top half of the in place membrane.

· 4 Apply the bonding adhesive to the exposed roof deck and NOT to the EPDM membrane as the adhesive is to be applied as a one surface WET LAMINATE using a notched trowel to spread the adhesive in a pattern over the decking. Slowly fold the EPDM roofing membrane back into place while the adhesive is still wet. To ensure adhesive transfer and a good bond, use a stiff bristled push broom and force the membrane into contact with the adhesive on the roof deck. Repeat the process on the other half of the EPDM membrane.

· 5 Roll out the next piece of membrane, allowing a four to six inch overlap on the piece below it. This overlap is crucial to allow enough overlap between the two pieces and to allow the water to flow from the upper part of the roof down to the roof edge. This is also to allow enough room to apply the primer and 3” seam tape if required to splice 2 pieces of EPDM deck sheet together.

· 6 Adhere this section in the same manner as the first section. Continue adding sections until you have covered your roof.

Seam tape application if required to join 2 sheets together

• Position sheets of liner and align edges to required overlap. Mark bottom sheet to indicate top sheet location, then folding back top sheet.

• Clean and/or prime the seam area of both rubber sheets using EPDM Liner Primer. CAUTION: wear protective gloves and read all labels and instructions when using EPDM Liner Primer or unleaded gas to clean and prime the seam area

• Make guide marks for the splice tape much as in Step 1, except that the new marks will be 1/2" out from the edges of the bottom sheet.

• Fold back top sheet. Begin unrolling splice tape by aligning the edge of the paper with the marks in step 3. Continue along the full length of the seam.

• With the paper backing still attached to the tape, use a roller to ensure good contact. Place the top sheet of rubber back over the applied tape.

• Remove the paper backing by pulling out from under the top sheet at a 45º angle. Allow top sheet to fall freely onto exposed splice tape. Roll entire seam with roller.

When buying EPDM rubber roofing you also need to purchase the proper accessories from us to insure a proper and complete roof installation. We have listed all our EPDM accessories in our EBay store.

We can supply all you need for your roofing project and give you a complete estimate for your materials as well as instruct you about your installation process!!

We have both WHITE and BLACK EPDM rubber roofing as well as TPO.

Main Distribution Facility Located in St. Charles, MO

EPDM is extremely flexible, much like a tire innertube, and extremely strong. EPDM has over 350% elongation, and it's performance characteristics are stable in temperature ranges from -50 to 240 degrees Fahrenheit before failure. The EPDM membrane also exhibits over 1,300 lbs psi tensile strength, and 150 psi tear strength. Though there are other types of roofing membrane material in the marketplace today, none of them meet all the positive characteristics, ease of handling, and price of EPDM.

FORMULATION COLOR SPECIAL APPROVALS

ANJ45B & ANJ60B MIL EPDM BLACK UL CLASS A
FM CLASS 1

ANJ60W 60 MIL EPDM WHITE UL CLASS A
FM CLASS 1

PHYSICAL PROPERTIES ASTM TEST METHOD RESULTS

WIDTH, INCHES D751 -0 / +2.0

LENGTH, INCHES D751 -0 / +6.0

THICKNESS, INCHES D751 +10%

TENSIL STRENGTH, MIN PSI D412 D1E C 1305

ELONGATION, ULTIMATE MIN. % D412 300

TEAR RESISTANCE, MIN., LBS./INCH D624 DIE C 150

LINEAR DIMENSIONAL CHANGE,
MAX. % (168 HOURS AT 2400 DEGREES F) D1204 +2

BRITTLENESS POINT AT -49 DEGREES F D2137 DOES NOT BREAK

OZONE RESISTANCE (168 HOURS / 100
PPHM/1040 F/400 C/505 EXT.) D1149 NO CRACKS AT 7X MAGNIFICATION

WATER ABSORBSION, MAX. %
(168 HOURS AT 15 DEGREES F/70 C) D471 +8 / -2.0

HEAT AGING (28 DAYS AT 240 DEGREES F)

PIN HOLES NO HOLES, COMETS, OR FISH EYES MORE
THAN 1/3 DEPTH OF TOTAL THICKNESS

SEAMS 2" MIN. OVERLAP

SEAM PEEL STRENGTH
2 INCH / MIN. CROSSHEAD SPEED 15 PLI MIN.

SEAM SHEAR STRENGTH
2 INCH / MIN. CROSSHEAD SPEED (BREAK MUST BE MEMBRANE NOT SEAM 30 PLI MIN.)
