Business & Industrial|Industrial Automation & Motion Controls|Electric Motors|General Purpose Motors

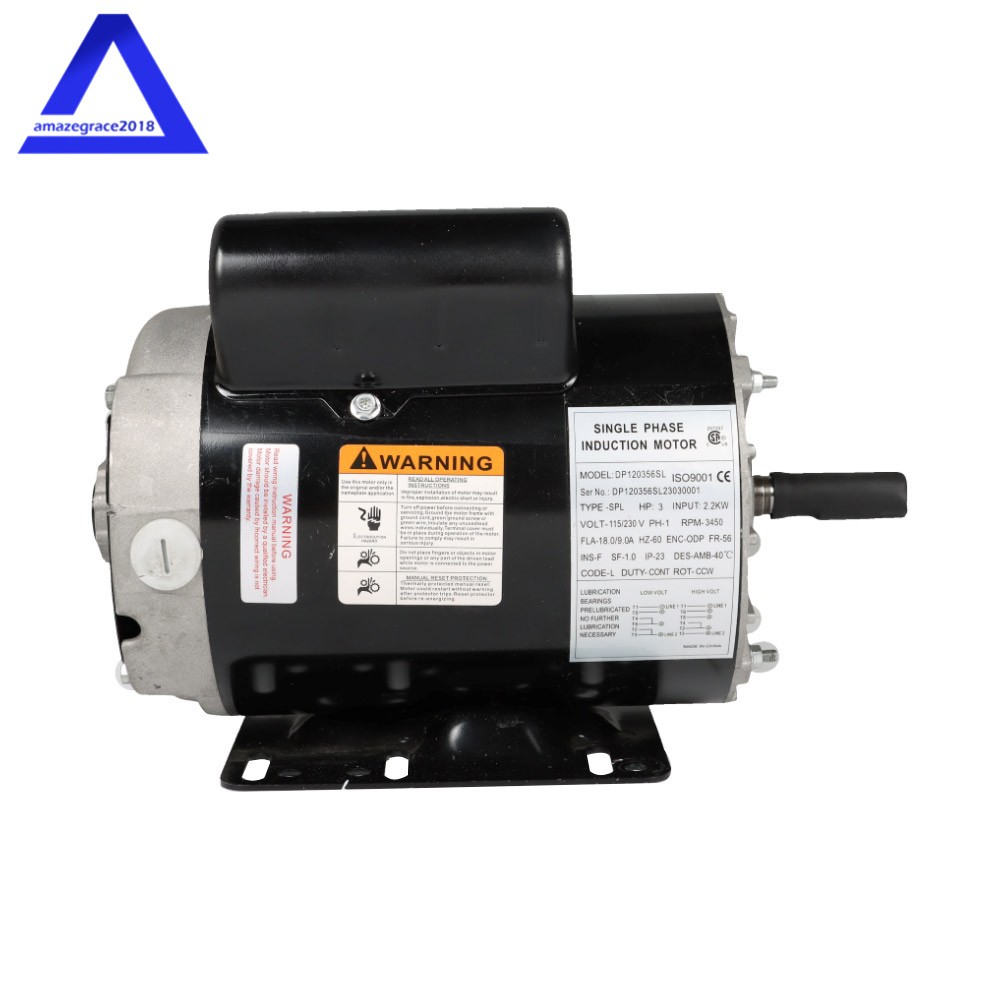

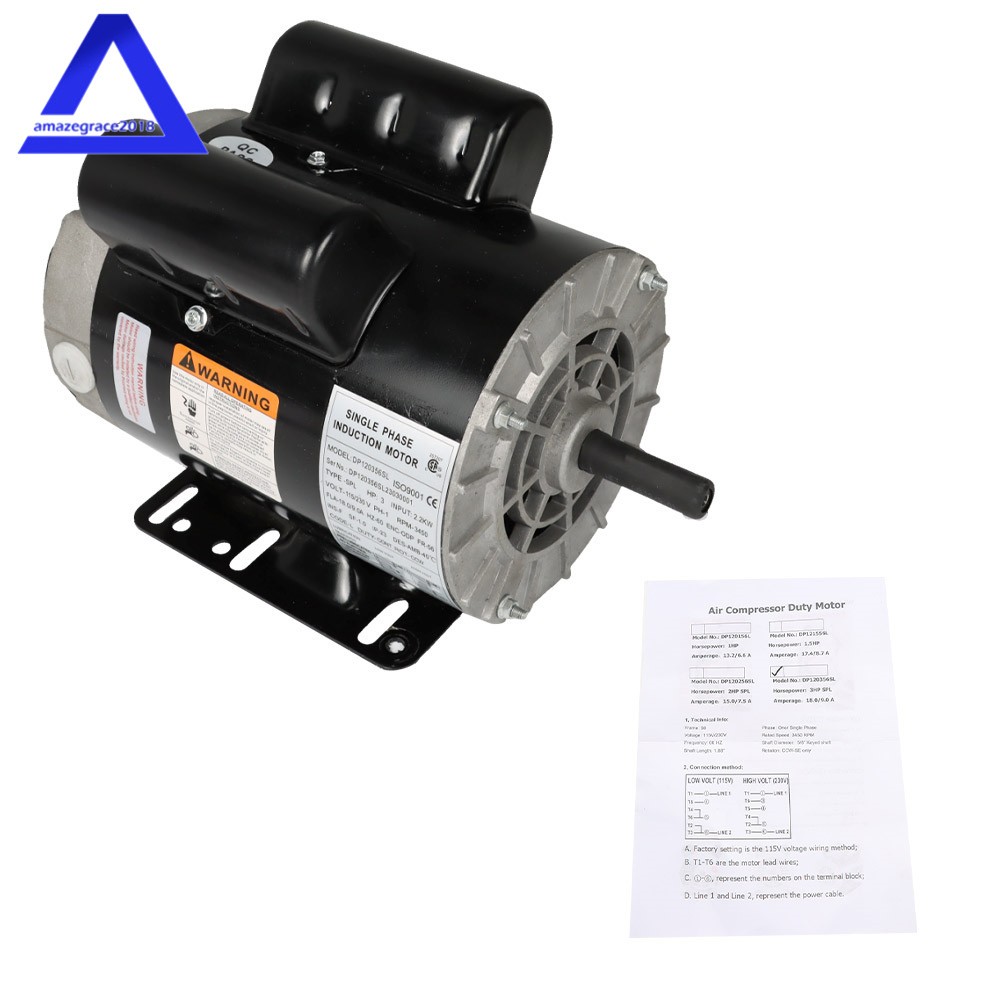

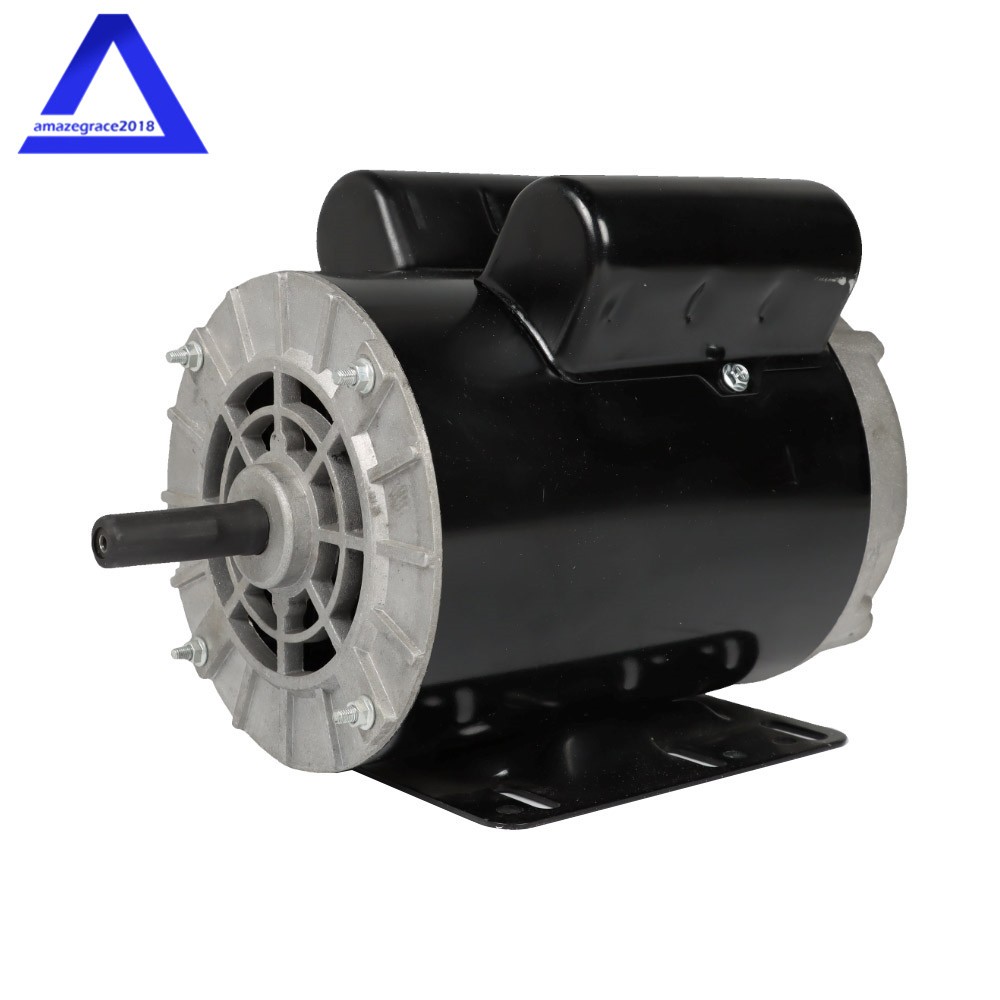

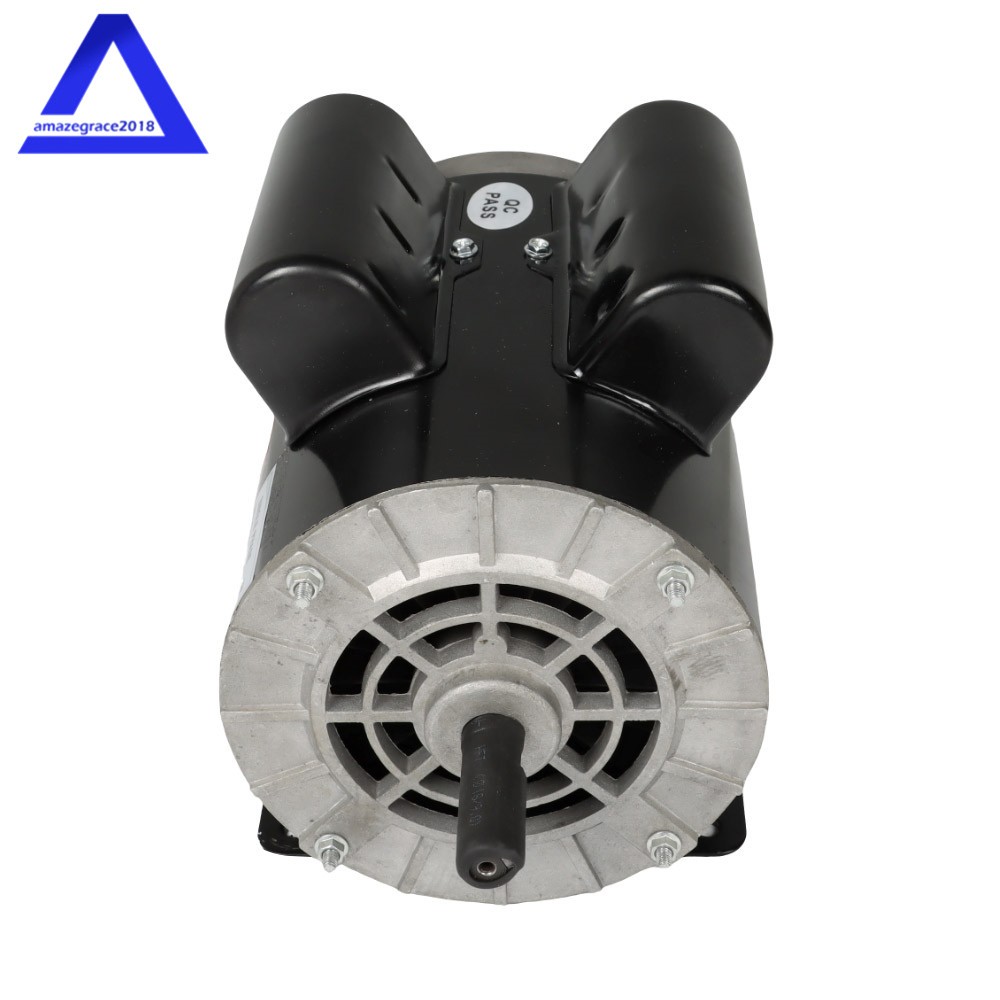

3HP SPL Electric Motor Air Compressor 3450RPM 56Frame 1Phase 115/230v 5/8"Shaft
USD
$100.11
Seller:
amazegrace2018
99.7% positive
(19,231 reviews)
Monroe Township, US
Out of Stock
US
Shipping
Standard Shipping
FREE
Request Quote
View on eBay
As an eBay Partner Network Affiliate, I earn from qualifying purchases.
Secure Transaction
Fast Response
Quality Guarantee
Specifications
| Country of Origin | United States |
|---|---|
| Brand | marddpair |
| MPN | AMZ1079472 |
| NEMA Frame Suffix | 56 Frame |
| Type | SPL |
| Synchronous speed | 3600 RPM |
| Rotation | CCW (Counter clockwise rotation when viewed from the shaft end) |
| Material | Steel shell |
| Full Load Amps | 22.0/11.0 |
| IEC Frame Size | 56 |
| Enclosure Type | ODP (Open Drip-Proof) |
| Shaft Type | Keyed |
| Shaft Diameter | 5/8 in |
| Current Type | AC |
| Nominal Rated Input Voltage | 115 V, 208 V, 120 V, 240 V, 230 V |
| AC Phase | Single Phase |
| Mounting Type | Rigid |
| IP Rating | IP23 |
| Input | 2.2 KW |
| Shaft length | 1.88 inch |
| Efficiency | 75 % |
| Actual Rated Input Voltage | 115/230 |
| Rated Load (HP) | 3HP SPL |
| AC Frequency Rating | 60 Hz |
| Base RPM | 3450 |
| AC Motor Type | Induction/Asynchronous |
| Reversible/Non-Reversible | Non-Reversible |
| Model | DP120356SL |
| Service Factor | 1 |
