Omron MicroHAWK V430-F Fixed Mount Autofocus Multicode Reader

Tested working before removal from a functional system.

About the V430-F MicroHAWK

The V430-F is Omron's (formerly Microscan) ultra-compact fixed-mount industrial barcode and 2D code reader. Smallest IP65/IP67-rated true-industrial Ethernet barcode reader in its class, with best-in-class decoding for 1D, 2D, and Direct Part Mark (DPM) codes.

Specifications (V430-F family)

Series: MicroHAWK V430-F autofocus multicode reader
Ingress Protection: IP65 / IP67
Sensor Resolution Options (by variant): 0.3 MP / 1.2 MP / 5 MP
Symbologies Supported:
- 1D: Code 39, Code 128, Code 93, Codabar, Interleaved 2 of 5, UPC, EAN, GS1 Databar, PDF417, MicroPDF417
- 2D: Data Matrix (ECC200), QR Code, MicroQR, Aztec, MaxiCode
- DPM: Direct Part Mark for dot-peen, laser-etched, chemical-etched codes
Communication: Ethernet TCP/IP, EtherNet/IP, PROFINET, Serial (RS-232)
Trigger Options: hardware trigger, software trigger, free-run, continuous
Lighting (by variant): Red, White, IR, UV — internal or external
Focus Options (by variant): Autofocus or Fixed (multiple distances)
Connectors: M12-style on rear of unit

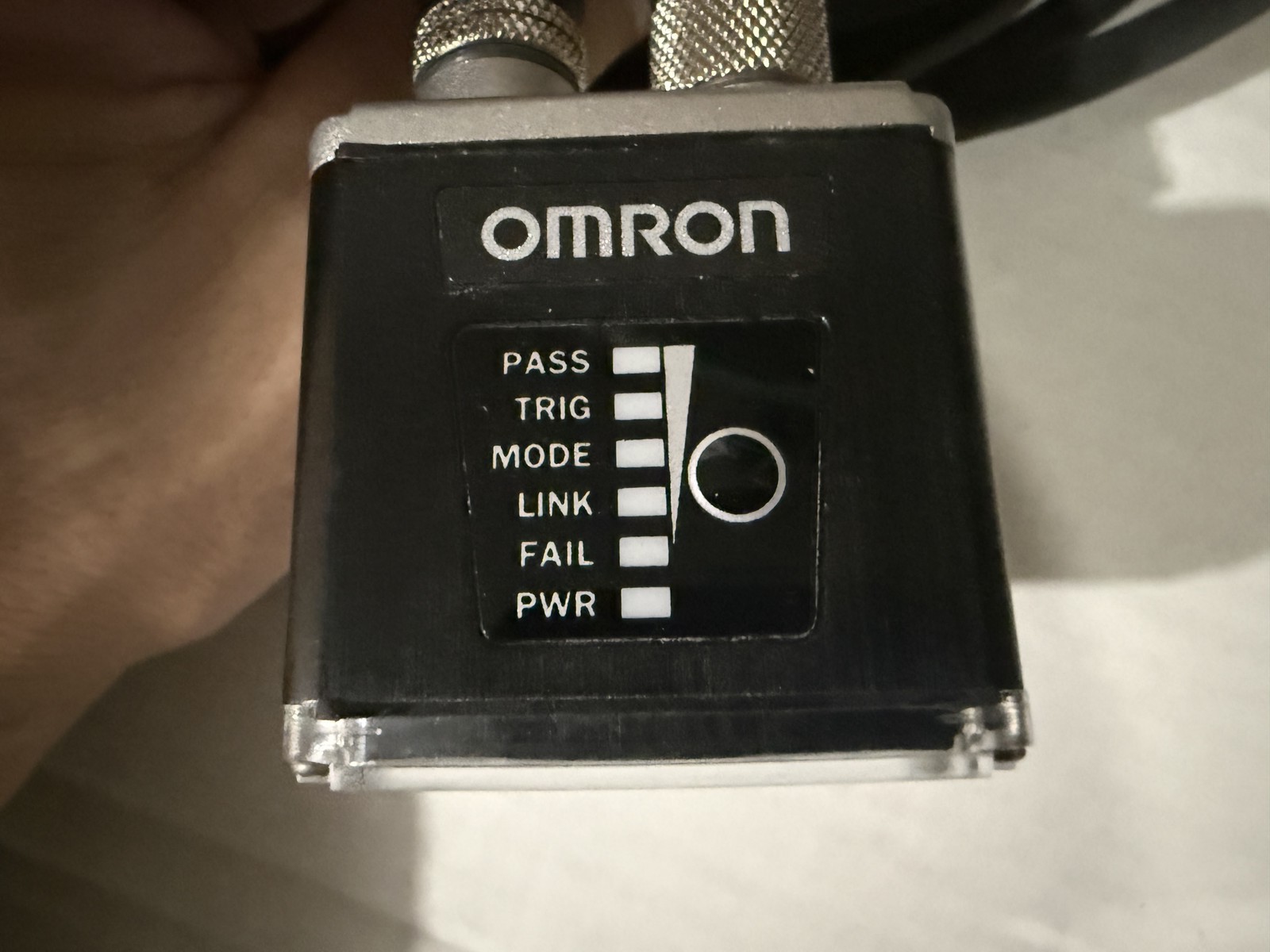

Status LEDs: PWR, FAIL, LINK, MODE, TRIG, PASS
Configuration Software: WebLink (browser-based) or AutoVISION

Sub-Variant Note

The full sub-variant suffix (e.g. V430-F000W12M-SRP) was not visible on the photographed label. Buyer should confirm exact sub-variant matches their application. V430-F variants differ in:

Sensor resolution (0.3MP / 1.2MP / 5MP)
Lens type (narrow / wide / UHD)
Focus (autofocus / fixed at various distances)
Color vs monochrome sensor
Lighting color (red / white / IR / UV)

Condition

Used, removed from a functional installation
Tested working before removal
Sold as-is at time of listing
Photos show the actual unit you will receive

Typical Applications

Fixed-mount industrial scanning on packaging lines, assembly conveyors, traceability stations, label verification, kitting, pharmaceutical serialization (DSCSA), automotive part tracking, medical device UDI compliance. Common in food/beverage, pharma, automotive, semiconductor, electronics manufacturing.

What's Included

One (1) Omron V430-F MicroHAWK code reader
Cables NOT included unless visible in photos

Shipping

Ships from Delaware, OH
USPS Ground Advantage with tracking
Same or next business day handling
Packed in anti-static bag with foam cushioning

Returns

30-day money-back returns accepted (buyer pays return shipping).

Brand	Omron
Model	V430-F
MPN	V430-F
Type	Industrial Barcode/Code Reader

Omron V430-F MicroHAWK Fixed Mount Barcode QR DataMatrix Reader IP65 Ethernet
