Ixia ALM1000T8 Application Load Module

ALM1000T8 · 944-0020

8 ports · 10/100/1000Base-T · RJ-45 · 1 GB memory per port

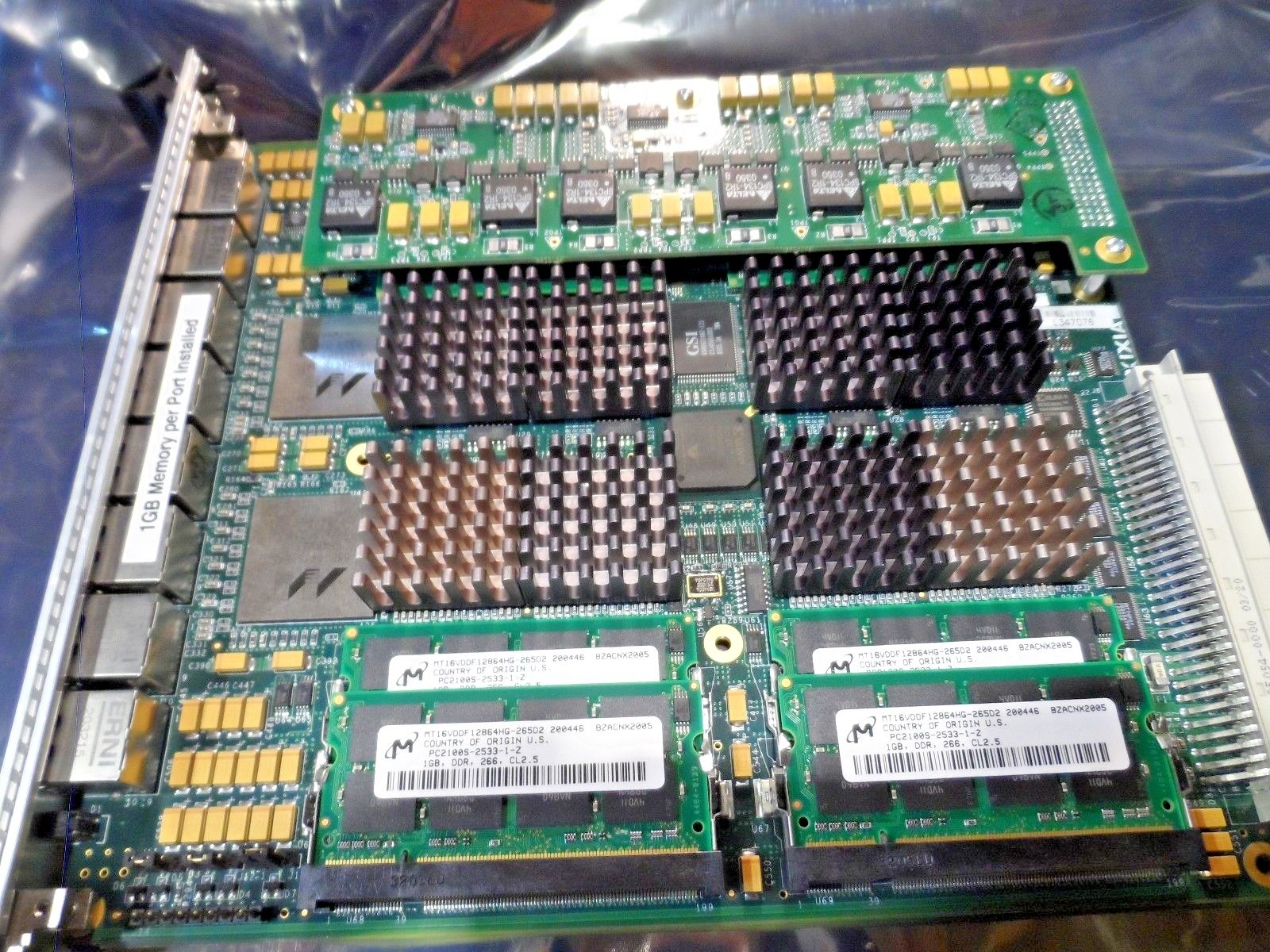

Ixia ALM1000T8, an 8-port 10/100/1000 Mbps Base-T Ethernet copper application load module. It supports the Real World Traffic Suite (IxVPN, IxChariot and IxLoad), ARP and PING, and independent Linux-based SDK applications. A label on the board of the unit photographed reads '1GB Memory per Port Installed'.

It is a standard-form-factor module: it runs in the Optixia X16 (the chassis these units were tested on) and XG12, and in the Optixia XM12 and XM2 through the SFF adapter. Several units are available; quantity is set in the listing.

Condition

Used: tested good on Optixia X16. 60 Day Money Back Guarantee.

Specifications

Parameter	Value
MPN	ALM1000T8
Ixia part number	944-0020
Type	8-port 10/100/1000 Mbps Base-T Ethernet application load module
Ports	8, RJ-45 (copper)
Interfaces	1000Base-T, 100Base-TX, 10Base-T
Data rate	10 / 100 / 1000 Mbps
Applications	Real World Traffic Suite (IxVPN, IxChariot, IxLoad), ARP, PING, Linux-based SDK applications
Port memory	1 GB per port (board label); 1 GB DDR266 SODIMMs
Port LEDs	2 per port: Tx/L (link speed by color, flashing on transmit) and Rx/E (duplex, receive, errors)
Mgmt LED	Card-level LED next to port 8, not used
Auto-negotiation	If 4-pair gigabit auto-negotiation fails, retries on the 2 pairs used for 10/100
Chassis	Optixia X16, XG12; Optixia XM12 and XM2 with the SFF adapter
Ixia EOL date	11/05/2017

Installation note

Per the Ixia reference guide, the ALM1000T8 is a high-powered card: in the 400T and 400T v2 chassis, filler panels must be installed in unused slots for proper cooling.

Included

One Ixia ALM1000T8 load module per unit purchased, as shown in the photos.

Not included:
SFF adapter for Optixia XM chassis
Chassis
Cables

Testing: what we do, and to what standard

Ixia load modules are tested in our own lab, in an Ixia chassis, with a version-matched IxOS. Every port runs traffic at full line rate with 64-byte frames, the highest frame rate and the hardest case, on all ports at once. Error counters are zeroed at the start, monitoring is read-only, and the traffic runs undisturbed for a window long enough to prove the bit-error limit below statistically, not for a fixed time.

Ixia and Keysight publish no acceptance criteria for load modules, so we apply our own written standard, ZC-AC rev 2. Each criterion is benchmarked to IEEE 802.3 or RFC 1242/2544 and set tighter, so that a module we pass adds no measurable error, loss or rate deviation to the data its user collects. Where the industry sets no number, nothing is tolerated.

Check	Industry reference	Our acceptance limit
Boot	IxServer power-on record (no industry limit)	Zero FAIL records; the card reaches Board Ready
Link	IEEE 802.3 link status	Up on every port in every sample; zero link drops for the whole window
Line rate	IEEE 802.3 PHY rate	Nominal speed in every sample; no downshift or renegotiation
Throughput	IEEE 802.3 ±100 ppm clock tolerance; RFC 2544 §26.1	Within ±100 ppm of the theoretical frame rate at 64-byte frames, all ports at once
Frame loss	RFC 1242 §3.17 / RFC 2544: throughput = highest rate with zero loss	Zero loss at full line rate on every port simultaneously
Bit errors	IEEE 802.3 BER objective: 10^-12 (1000BASE-X, 10G to 100G), 10^-10 (1000BASE-T)	Zero errors over enough bits to prove a BER at least 5× better than the objective at 95% confidence (beyond the 4:1 test-uncertainty ratio of ANSI/NCSL Z540.3)
Temperature	Commercial silicon rated to 85 °C	Every sensor below 75 °C for the whole window; drift within ±5 °C
Stability	IxServer event log (no industry limit)	Zero card hardware events during the window

Our test reports state, for every section, the criterion, the value measured and the result, and print every error counter per port for the whole window. Where the Ixia software does not expose a reading (fan speed, supply voltage, optical DDM), the report says so; nothing is inferred. A unit that fails is diagnosed, not written off. Testing to this standard, with a signed written report, is available as a service.

Items outside this test capability are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description.

Troubleshooting, repairs, and test plans

We are here to help after the sale.

Troubleshooting and failure analysis. When a chassis or load module misbehaves (a card that will not enumerate, drops link, resets, or fails at start-up), we diagnose it from the evidence, down to the board:

Step	What we do
1. Evidence first	We pull the IxServer logs from the chassis, including the boot record of the failing card. Every finding in our report traces to a log line or a numbered bench run.
2. Boot analysis	The failing card's start-up is compared step by step against a healthy initialization recorded on the same chassis model and IxOS with a known-good card of the same model: insertion, EEPROM identity, slot power, FPGA loads, port card enumeration, fabric training. The first step that goes missing localizes the fault.
3. Varied conditions	Cold boot against hot insert, repeated runs, and a check that the card reports the same identity every time; an identity that changes between runs is itself evidence of a damaged management path.
4. Hardware-level verification	We swap cards. With several hundred load modules and dozens of chassis in stock, a suspect slot, carrier board, port daughter card or chassis is confirmed by substituting a known-good part and re-running, one change per numbered run, and by retesting on an isolated chassis.
5. Root cause and report	Board-level attribution on multi-board assemblies, ranked root-cause hypotheses, and a written engineering failure report with an evidence index, the disposition and the next steps.

Repairs. We repair Ixia chassis and load modules in our lab, verify the repair against the same acceptance standard used for testing, and document the evidence, the cause, and what was done.

Resource library. We maintain a 600 GB Ixia resource library: platform reference guides and user manuals across IxOS releases, product compatibility matrices, and IxOS, IxNetwork and IxLoad software builds across versions. It lets us answer compatibility, configuration and version questions from the manufacturer's own documentation.

Test plans. We can build test plans to satisfy your engineering needs. We take what you test today (a manual procedure, a legacy Spirent or Xena configuration, or nothing yet), map it onto IxNetwork and IxLoad, work out the licences, modules and ports it needs, and quote each step before any work starts.
