Product Description

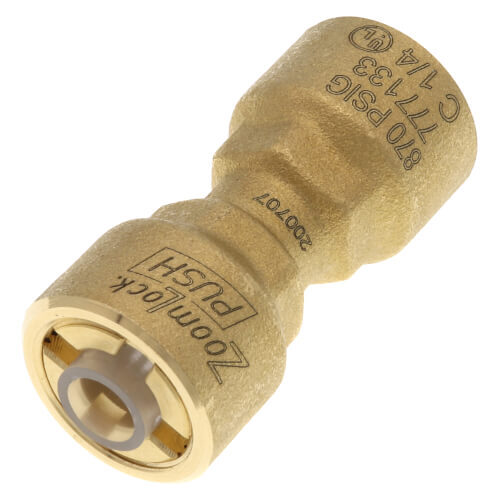

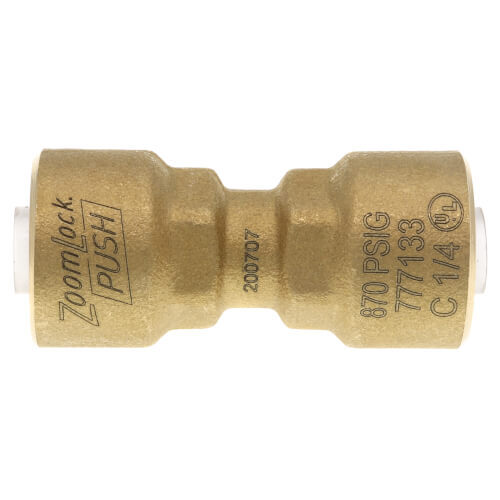

The Parker Hannifin 777133 is a 1/4-inch ZoomLock PUSH removable coupling designed for HVAC and refrigeration applications. This fitting eliminates the need for traditional brazing methods, significantly reducing installation time and risk. The push-to-connect design ensures quick and secure connections, making it ideal for residential AC, heat pumps, mini-splits, and refrigeration installations.

No tools required for connection
Easy to install and maintain
Cleaner installations with no open flames

Product Highlights

The ZoomLock PUSH fitting offers a safe and efficient solution for connecting refrigerant lines, enhancing overall job performance.

Product Information

Standard Information

Brand: Parker Hannifin
MPN: 777133

Technical Specifications

Connection Size: 1/4 inches
Applications: High Pressure HVAC/R
Operating Temperature: 250Â°F / 121Â°C
O-Ring Temperature Range: -40Â°F to +300Â°F, -40Â°C to +149Â°C
Maximum Rated Pressure (MRP): 700 psi / 48 bar
Minimum Burst Pressure: 2100 psi / 145 bar
Vacuum Pressure Capability: 500 Microns
External Leak Rate: Less than 0.1 Ounces of Helium per Year
Vibration Resistance: Conforms to UL109
Fitting Body Material: Refrigerant Grade Copper
O-Ring Material: HNBR
UL Listed: SA7511 for field and factory installations
Compliance: ASHRAE-15, ANSI 15, ASME B31.5

Brand	PARKER
MPN	777133

Parker Hannifin 777133 1/4 ZoomLock PUSH Removable Coupling PZKPR-C4
