Product Description

The ABB TH3223 is designed for commercial and industrial applications where safety and high performance are essential. This fusible switch is listed to UL standard 98 enclosed and dead front switches and certified to CSA standard 22.2 no. 4-04. It is suitable for use as service equipment when installed per the National Electrical Code.

Designed for commercial and industrial applications
Listed to UL standard 98 enclosed and dead front switches
Suitable for use as service equipment when installed in accordance with the National Electrical Code

Product Highlights

ABB TH3223 fusible switch ensures safety and high performance for commercial and industrial use. Meets NEMA KS1 standards.

Product Information

Standard Information

Brand: ABB
Manufacturer Part Number: TH3223
Country of Origin: UKN

Technical Specifications

Application: Heavy
Enclosure: NEMA 1 (Indoor)
Voltage Rating: 240 AC
Amperage Rating: 100A
Number of Poles: 2
Category: Heavy Duty
Poles: 2
Wires: 3
Fusing: Fusible
Options: None
Wire Range (Cu/Al): 10-1/0
240 Vac, NEC Std, 1-ph: 7.5 hp
240 Vac, Time Delay, 1-ph: 15.0 hp
250 Vdc: 20.0 hp
GSA Compliance: Yes
cUL Listed: Yes
UL Listed: Yes
Manufacturer: ABB
Component: Fusible Disconnect Switch
Current: 100 Amp
Enclosure Disconnect Type: Heavy Duty Safety Switch
Volts DC: 250
Mounting: Surface
Volts AC: 240

Brand	ABB
MPN	TH3223

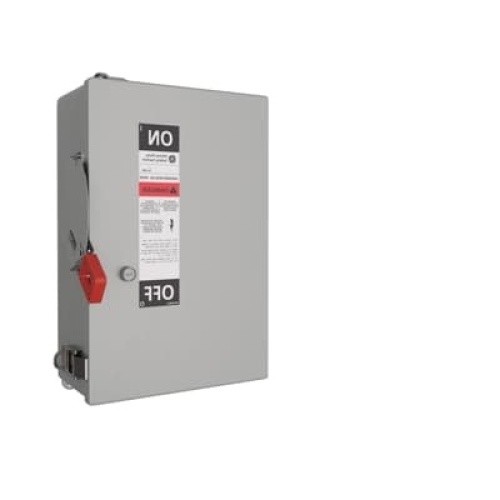

ABB TH3223 Fusible Switch 100A UL98 CSA
