Product Description

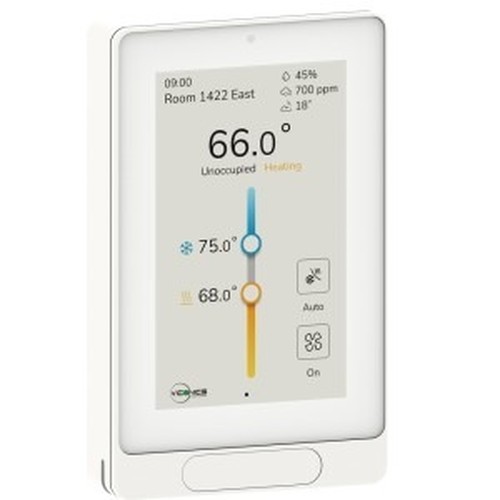

Schneider Electric TRC6500B11WA-VC is a touchscreen room controller for rooftop units and heat pumps with integrated indoor air quality functions. It accepts 24 V AC or 24 V DC input, provides eight universal inputs and five digital outputs, and includes built-in humidity, PIR occupancy, and light sensors. The device supports BACnet MS/TP communications and offers Lua scripting, configurable scheduling, and an AI Eco Mode for dynamic HVAC control.

Power: 24 V AC Â±15% recommended (absolute max 29.5 Vac) or 24 V DC Â±15%; peak device consumption up to 6 VA plus outputs (max total 94 VA)
I/O and control: 8 universal inputs, 5 digital outputs, multiple output types and specified output current ratings
Built-in sensors and communications: relative humidity sensor, PIR occupancy sensor, light sensor, optional proximity sensor, BACnet MS/TP (additional wireless protocols available)

Product Highlights

Touchscreen room controller with universal I/O, IAQ sensors, BACnet MS/TP support, Lua scripting, and AI Eco Mode for RTU and heat pump applications.

Product Information

Standard Information

Brand: SCHNEIDER ELECTRIC
Manufacturer Part Number: TRC6500B11WA-VC

Technical Specifications

Brand: Schneider Electric
MPN: TRC6500B11WA-VC
Product Name: TRC RTU Heat Pump and IAQ Thermostat (Touchscreen Room Controller)
Product Type: Room controller / rooftop unit and heat pump controller
Application: Commercial and hospitality RTU and heat pump HVAC control; indoor air quality monitoring
Input Voltage: 24 Vac Â±15% recommended (absolute max 29.5 Vac), 50/60 Hz, or 24 Vdc Â±15%
Peak Device Consumption: Up to 6 VA (device) plus outputs; maximum total 94 VA
Universal Inputs: 8 (U1 - U8)
Digital Outputs: 5 (D1 - D5)
Outputs: 0-10 V DC analog outputs; 24 V AC/DC relay outputs; multiple universal and relay outputs as configured
Output Current: Universal output 0.3 A; relay output 1 A; universal output inrush 1.5 A; relay output inrush 3 A
Communication Protocols: BACnet MS/TP; (optional/reported: BACnet wireless, Modbus RTU, Zigbee 3.0, WiFi)
Sensors: Relative humidity sensor, passive infrared (PIR) occupancy sensor, brightness (light) sensor, optional proximity sensor, optional CO2 input
Control Features: Configurable scheduler, Lua scripting for custom sequences, AI Eco Mode, configurable proportional band, change of value (COV) for BMS integration, humidity dehumidification sequence
Display: Glass high-resolution color touchscreen with optional RGB halo LED indicator
Enclosure Material: Polycarbonate
Operating Temperature: 0 to 50 Â°C (32 to 122 Â°F)
Storage Temperature: -30 to 50 Â°C (-22 to 122 Â°F)
Humidity Operating: 0 to 95% RH non-condensing
Dehumidification Setpoint Range: 30 to 95% RH
Temperature Setting Range: Heating 4.5 to 32 Â°C (40 to 90 Â°F); Cooling 12 to 37.5 Â°C (54 to 100 Â°F)
Temperature Resolution: 0.1 Â°C
Temperature Accuracy: Â±0.5 Â°C
Dimensions (HxWxD): 4.72 in x 3.19 in x 1.10 in (120 mm x 81 mm x 28 mm)
Weight: 0.75 lb (340 g / 12.0 oz)
PIR Sensor: Built-in (PIR cover included)
LED Indicator: Optional halo (RGB)
Display Material Detail: Glass
Standards and Certifications: EN/IEC 60730-1; ETSI EN 300 328; ETSI EN 301 489; FCC part 15 subparts B and C; ICES-003; UL 60730-2-9
Ambient Pollution Degree: 2
Enclosure Use: Indoor use only
