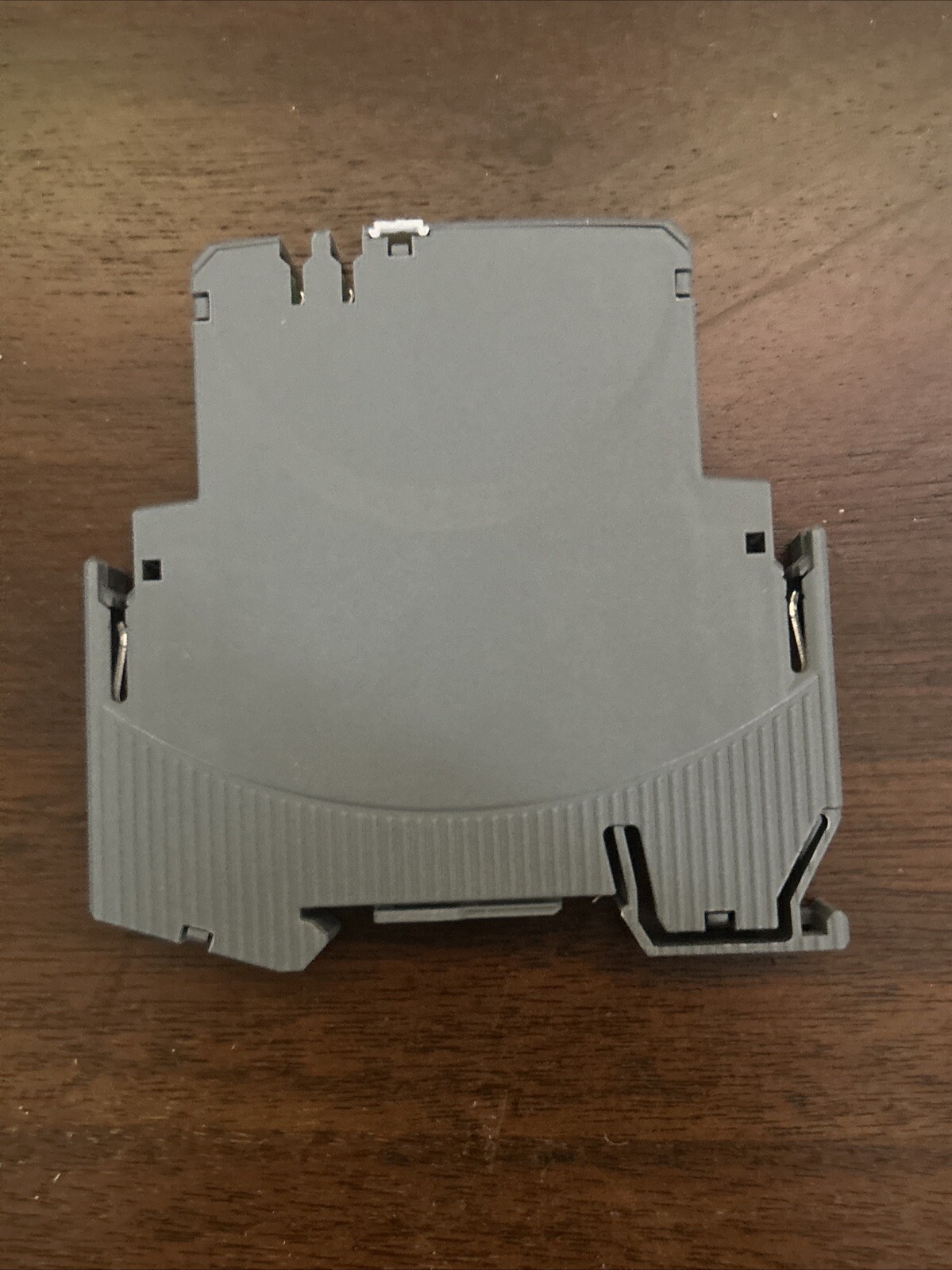

ABB EPD24TB1014A Protection Devices for DC Load Circuits

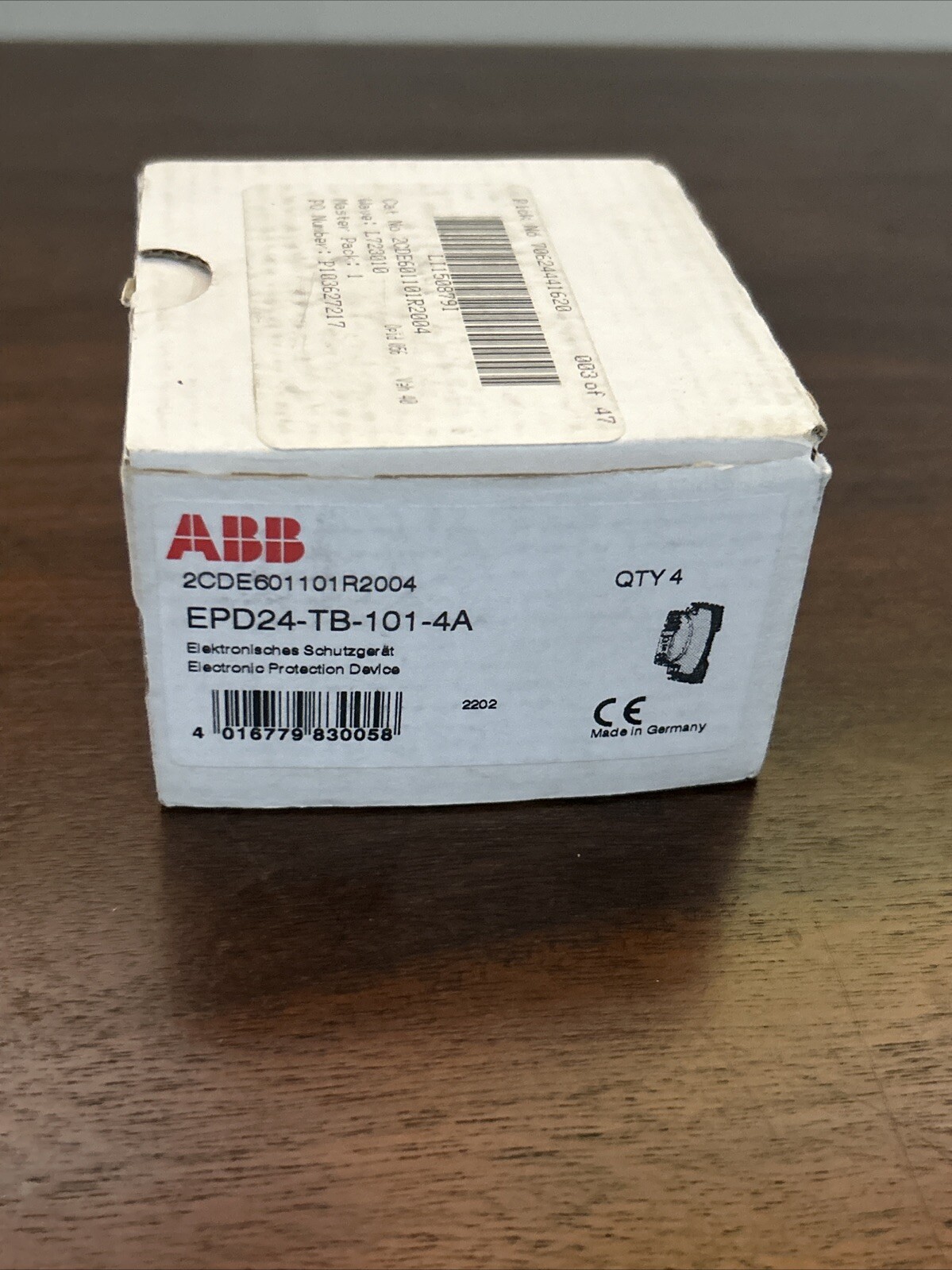

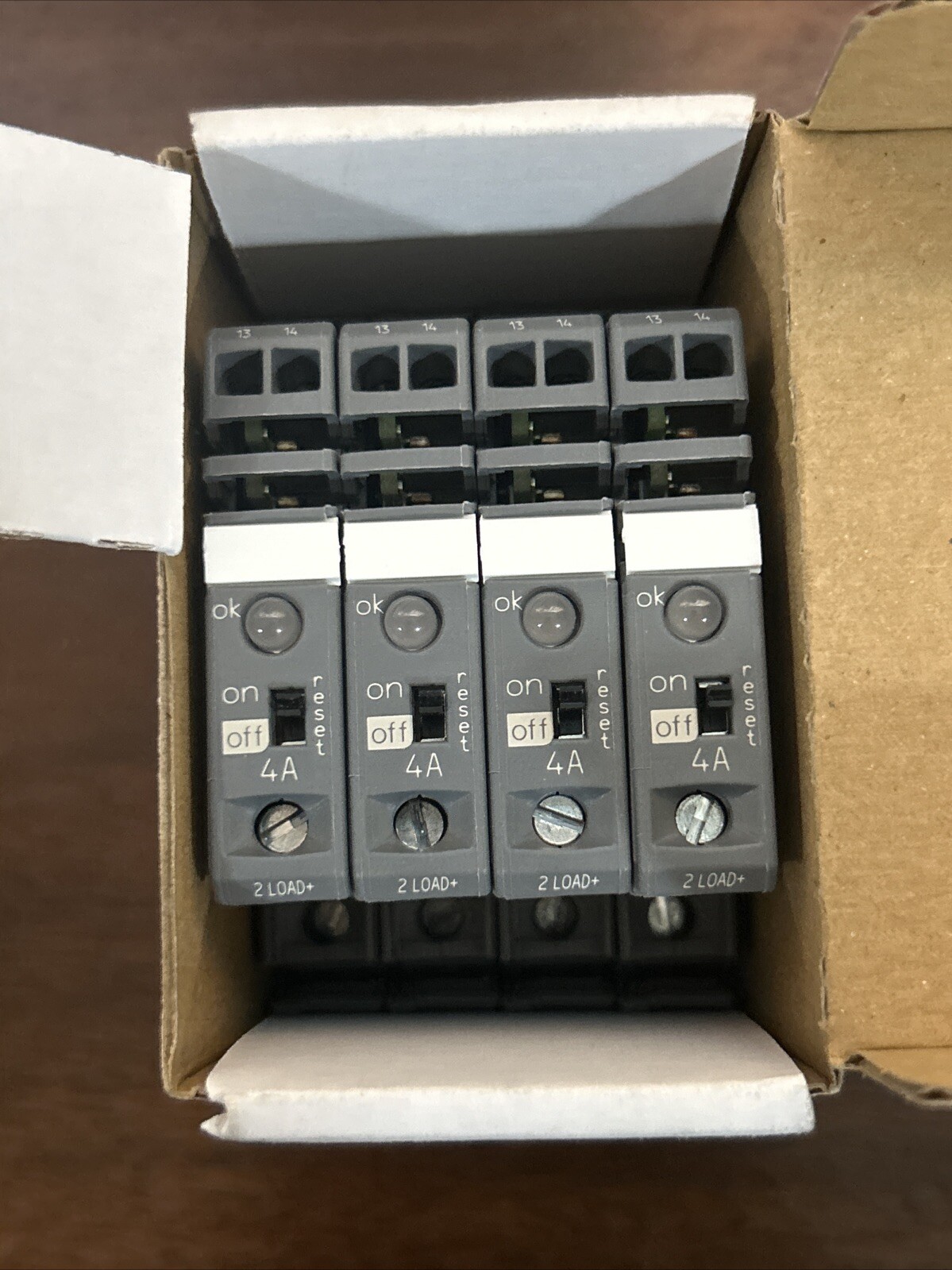

Brand New, listing is for QTY: 1 but there are 4 Available

General Information

Extended Product Type: EPD24-TB-101-4A

Product ID: 2CDE601101R2004

EAN: 4016779830041

Catalog Description: EPD24-TB-101-4A Protection Devices for DC Load Circuits

Long Description: The EPD24 protection devices expand ABB's product portfolio of DIN rail mounted devices with electronic overcurrent protection modules for selective protection of 24 V DC load circuits. Faults in individual branches caused by overload or short circuit are detected and selectively switched off so that other load current paths remain unaffected by the fault. In this way straightforward, quick troubleshooting is made possible.

Technical

Standards: UL 2367 recognized / CSA 22.2 / UL1604

Product Compatibility: Compatible with inductive load through suitable external free-wheeling circuit

Rated Voltage (Ur): 24 V DC

Operational Voltage: Maximum 18..32 V DC

Rated Current (In): 4 A

Maximum Load Capacity: 20000 µF

Power Loss: 1.12 W

Output Signal: Operating condition: 13-14 closed Fault condition: 13; Potential-free auxiliary contact max. 30 V DC/0.5 A, min. 10 V DC/10 mA.

Number of Auxiliary Contacts NO: 1

Number of Channels: 1

Signal Indication Fault (LED): Red

Tightening Torque: Auxiliary Circuit 0.5 N·m

L/N Terminals 1.5-1.8_NU N·m

Trip Type: Electronic

Housing Material: Moulded

Status Indicator: Yes

Additional Information: Backup fuse for EPD24 not required

Mounting on DIN Rail: TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Recommended Screw Driver: Screw Slot

Accessories Available: Yes

Output: Power MOSFET switching output (positive switching) without galvanic isolation

Remarks: Parallel connection of outputs not permissible

Color: dark grey, RAL 7012

Operating Humidity (RHamb): 96 hrs/95% RH/40 °C to IEC 60068-2-78, test Cab. climate class 3K3 to EN 60721

Brand	ABB
Current Type	DC
Color	Brown
MPN	EPD24-TB-101-4A

ABB EPD24-TB-101-4A Protection Devices for DC Load Circuits
