USED.

IN GOOD WORKING CONDITION.

What you see is what you get.

WARRANTY 30DAYS

If you require calibration, please contact us for a price quote.

Original description

Rigol DSG821 Product Overview

The Rigol DSG821 is a high-performance RF signal generator offering exceptional performance and reliability at an affordable price point. Covering a frequency range from 9 kHz to 2.1 GHz, it is designed to meet the demands of various applications, including wireless communication testing, RF component evaluation, research and development, and educational laboratories.

Key Features & Specifications

Frequency Range: 9 kHz to 2.1 GHz with 0.01 Hz resolution.

Signal Purity: Excellent phase noise performance, typical <-110 dBc/Hz @ 20 kHz offset.

Amplitude Accuracy: High output amplitude accuracy, typical <0.5 dB.

Output Level Range: Wide amplitude output range from -110 dBm to +13 dBm (settable up to +20 dBm).

Modulation Capabilities: Standard AM / FM / Phase (ØM) analog modulations, as well as optional pulse modulation with high ON/OFF ratio (up to 70 dB).

Reliability: All-digital amplitude and frequency design ensures high stability and repeatability over time.

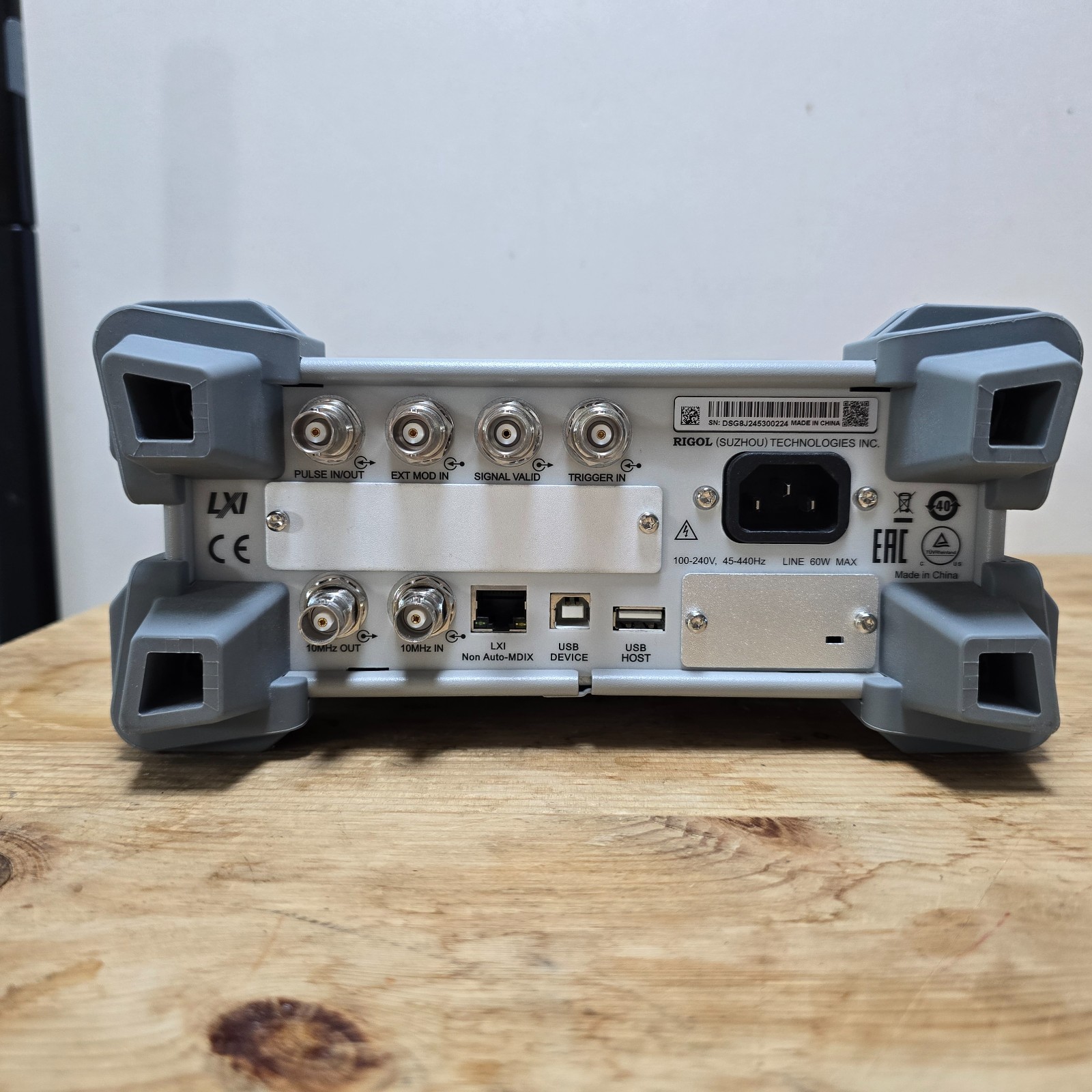

Connectivity & Control: Equipped with USB Host, USB Device, and LAN (LXI) interfaces; supports standard SCPI command set for automated test setups.

Form Factor: Compact 2U lightweight design saves valuable bench space and allows easy rack mounting.

Brand	RIGOL
MPN	DSG821
Country of Origin	China

Rigol DSG821 Signal Generator 9kHz-2.1GHz
