LitePoint 9 Slot PXI Mainframe

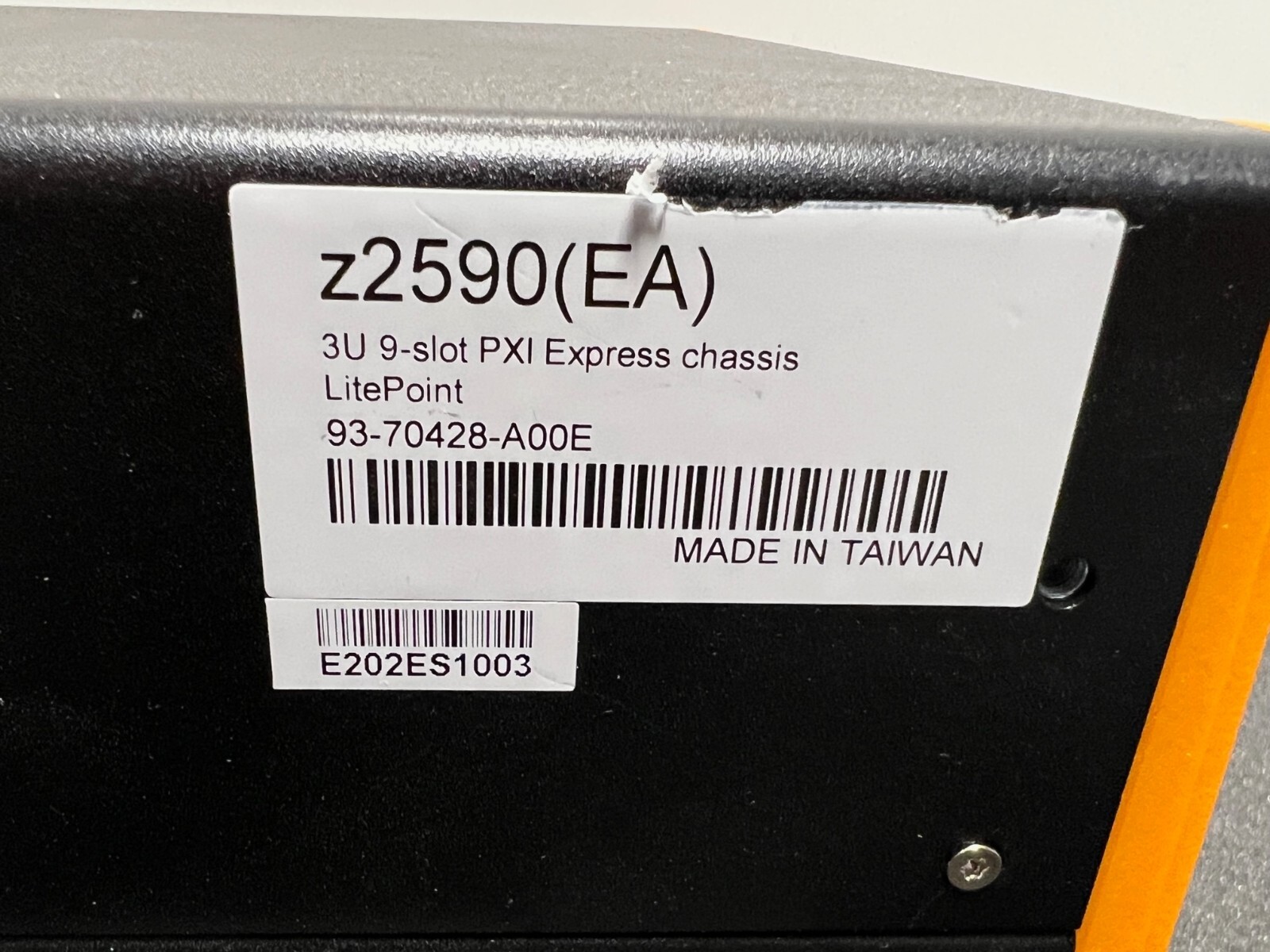

- Model: z2590 (EA)
- Description: The zSeries 9-Slot Chassis is a PXI Express chassis that is compliant with PXI Express and cPCI Express specifications. The zSeries 9-Slot Chassis offers one system slot, one system timing slot, and seven hybrid peripheral slots for versatile test and measurement applications requiring enhanced data throughput. The hybrid-slot design accepts installation of CompactPCI, PXI, CompactPCI Express, and PXI Express modules to maximize flexibility.
  The zSeries 9-Slot Chassis is built on a four-link PXI express topology with 7 GB/s system throughput, and 2 GB/s slot bandwidth for all peripheral slots. The zSeries 9-Slot Chassis is implemented with a smart system monitoring controller, reporting full chassis status, including fan speed, system voltages, and internal temperature.
  Equipped with an industrial grade AC power supply, the zSeries 9-Slot Chassis provides 400 W under 55°C, and delivers superior cooling capacity, from two 120 mm cooling fans on the rear of the chassis. Two BNC connectors for 10 MHz clock input/output on the rear panel enable synchronization with supplementary devices.
- Configuration:
- * z2590: 3U PXI Express Chassis
- * z3975: PXI Express Embedded Controller ( 160GB SSD)
- * z8651: PXI/PXIe Vector Signal Analyzer, 250 MHz to 6 GHz
- * z8751: PXI/PXIe Vector Signal Generator, 250 MHz to 6 GHz
- Unit has all the software needed to plug and play. Great System, Great price!!
- OS is Windows 7 PRO
- Excellent used Condition, Don't Miss out!!!!!

Brand	LitePoint
MPN	z2590
Number of Slots	9

LitePoint z2590 Z Series 9 Slot PXI Mainframe with z3975 / z8651 /z8751 Modules
