4130 Alloy Chromoly Round Steel Tube

Size:

O.D.: 1.50"
Wall Thickness: .058"
Length: 36"

We have the capability to cut your order to your specs upon request. If you would like this item cut, please note it as such in your order.

The images displayed for this product may not reflect the actual item for sale. The image is simply a general representation of the product and will most likely differ dimensionally from the item that is to be sold.

Product Description:

4130 Alloy Steel Tubing is Cold Drawn and Seamless. 4130 alloying elements include Chromium and Molybdenum, and for this reason, it is commonly referred to as Chromoly or Chrome Moly. It is widely used in the Aviation and Racing Industries because it has an excellent strength to weight ratio, it is very malleable and it is very easy to weld. 4130 Chromoly, Alloy Steel Tube, is resistant to scaling and oxidation and has a clean, smooth finish on both the inside and the outside of the tubing.

Properties			Chemistry
Normalized	Tensile Strength	97,200	Iron (FE)	97.33 - 98.22 %
Normalized	Yield Strength	63,100	Carbon (C)	.28 - .33 %
Normalized	Elongation	25.5%	Chromium (Cr)	.80 - 1.1 %
Normalized	Rockwell Hardness	B92	Manganese (Mn)	.40 - .60 %
Annealed	Tensile Strength	81,200	Molybdenum (Mo)	.15 - .25 %
Annealed	Yield Strength	52,200	Phosphorus (P)	.035 %
Annealed	Elongation	28,200	Sulphur (S)	.040 %
Annealed	Rockwell Hardness	B82	Silicon (Si)	.15 - .35 %

Stock Car Steel & Aluminum is a distributor of many types of metals and alloys. We have been a distributor to the NASCAR racing industry in Mooresville, NC for more than a decade. Please let us know if we can help you with any of your supply needs.

Carbon Steel HR & CR

Tubing

DOM & ERW Round Tube
1/4" OD to 3-1/2" OD (all walls)

Roll Bar Tube - CD Seamless & DOM
1-3/4" OD x .095" min wall - CD Seamless
1-3/4" OD x .090" min wall - DOM
1-3/4" OD x .090" min wall - CD Seamless, Turned, Ground, & Polished

Sheet
CR 1008 Sheets
10Ga to 30 Ga

AKDQ English Wheel Sheets
24Ga (.025) x 48" x 96"
24Ga (.025) x 48" x 120"
22Ga (.030) x 48" x 120"
Bar Stock
Round, Square, Flat
Plate
All Grades
Full or Partial Plates
Precision Ground Surface Plates
Structurals
Angle, Channel, I-Beam

Plastic
Lexan Sheets - Regular, MR10
Black ABS, HMW, HDPE Sheets (skirting)
Delrin Round Bar

Tungsten Blocks
Chassis Weights

Aluminum
2024, 3003, 6061, 5052, 7075
(All Tempers)

Tubing

Round Tube (1/4" OD to 3-1/2 OD all walls)
Rectangle Tube

Sheet

All Grades / All Tempers (.025" to .125")
Painted Aluminum Sheets (All colors)
.040" x 48" x 120"
All sheets vinyl protected on one side

Bar Stock

Round, Square, Flat

Plate

All Grades
Full or Partial Plates

Structurals

Angle, Channel, I-Beam

Chrome Moly
4130 Normalized

Tubing

Round Tube (3/16" OD to 1-3/4 OD all walls)
Rectangle Tube

Sheet, Bar, Plate

Stainless Steel

All Grades
Tubing, Sheet, Bar, Plate

Mallory Metal

Crankshaft Balances

Surface Plates

Specialty Orders

This is just a sampling of what we carry. If you don't see it listed above, please do not hesitate to call us. Chances are we have it in stock. If we don't, we will find it for you!

Brand	Stock Car Steel
Country of Origin	United States

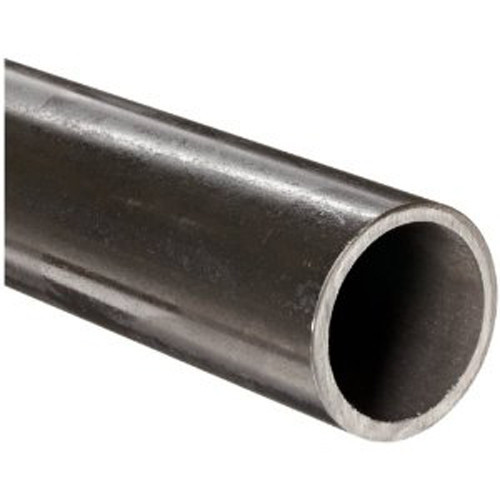

4130 Chromoly Round Steel Tube: 1.50" x .058" x 36"

Specifications

Returns Accepted
