Put the grinder down and get the right tools for the job. The all-new Evolution 9" Concrete cutting cut off saw, disc cutter, is the perfect tool for cutting masonry and metal. Compact in size but big on power - this new saw will cut safer, easier and more accurately than a grinder.

9" Diamond Blade included with high diamond concentration for efficient, clean cuts.
Electric blade brake stops the blade in seconds reducing the risk of accidents
Built-in dust port with rubber cap for easy vacuum attachment and dust collection.
Large fixed blade guard protects the user from flying debris & optimises dust suppression & collection.
Full wrap-around handle for easy horizontal and vertical cutting.
Lightweight design. No heavy petrol engine or batteries weighing you down. Weighing only 15.6 lb.
Cheap to run! No expensive petrol or batteries, no oil & no servicing.
No harmful fumes make this tool safe to use in any environment.
On-board tool storage. One multi-tool for all machine adjustments with dedicated onboard storage.
Reinforced skid plate allows you to throw the machine down on any surface with confidence. The raised angle lifts the blade away from the floor so you can put the machine down straight after the cut.
Built-in wheels give accuracy when making long, straight cuts at ground level & reduces user fatigue.
Ergonomic handle and trigger improves tool control and reduces user fatigue.

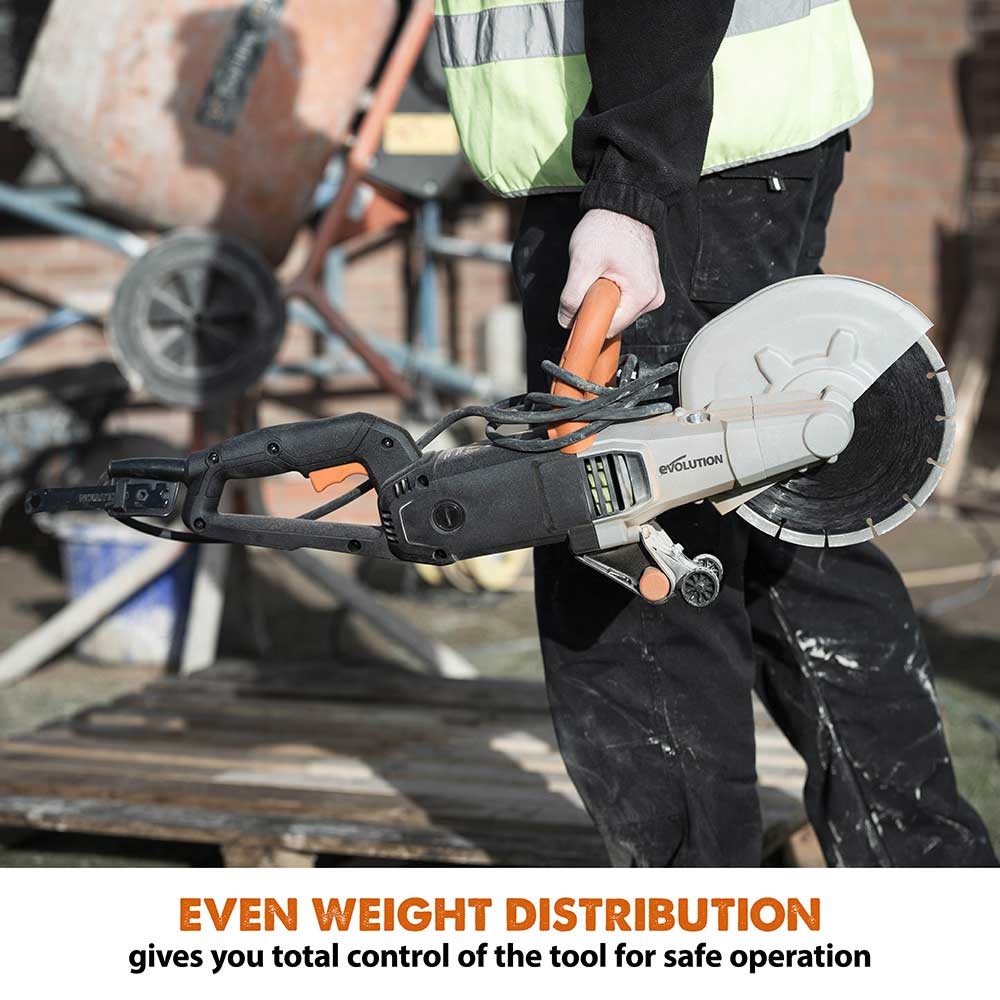

Optimized balance and even weight distribution places the center of gravity squarely between the handles for effortless use of the machine. Great for prolonged use.

All Evolution DCT models come equipped with our new Power Protect Technology to conquer the most demanding jobs and cut for years to come.

	Double insulated motor coil protects the motor from dust ingress and vastly improves motor life. Features a robust powder coating for complete protection.
	Unique aerodynamic fan system increases airflow through the motor for better cooling during heavy duty use and expels dust.
	Specially designed air vents prevent water and other debris from entering the motor housing to make it safe for use in all conditions.
	Built in drainage holes allow any water to escape from inside the machine body and prevents damage to internal parts.
	Voluntary GS certification ensures our machines exceed european standards and will excel in any environment.

Specifications

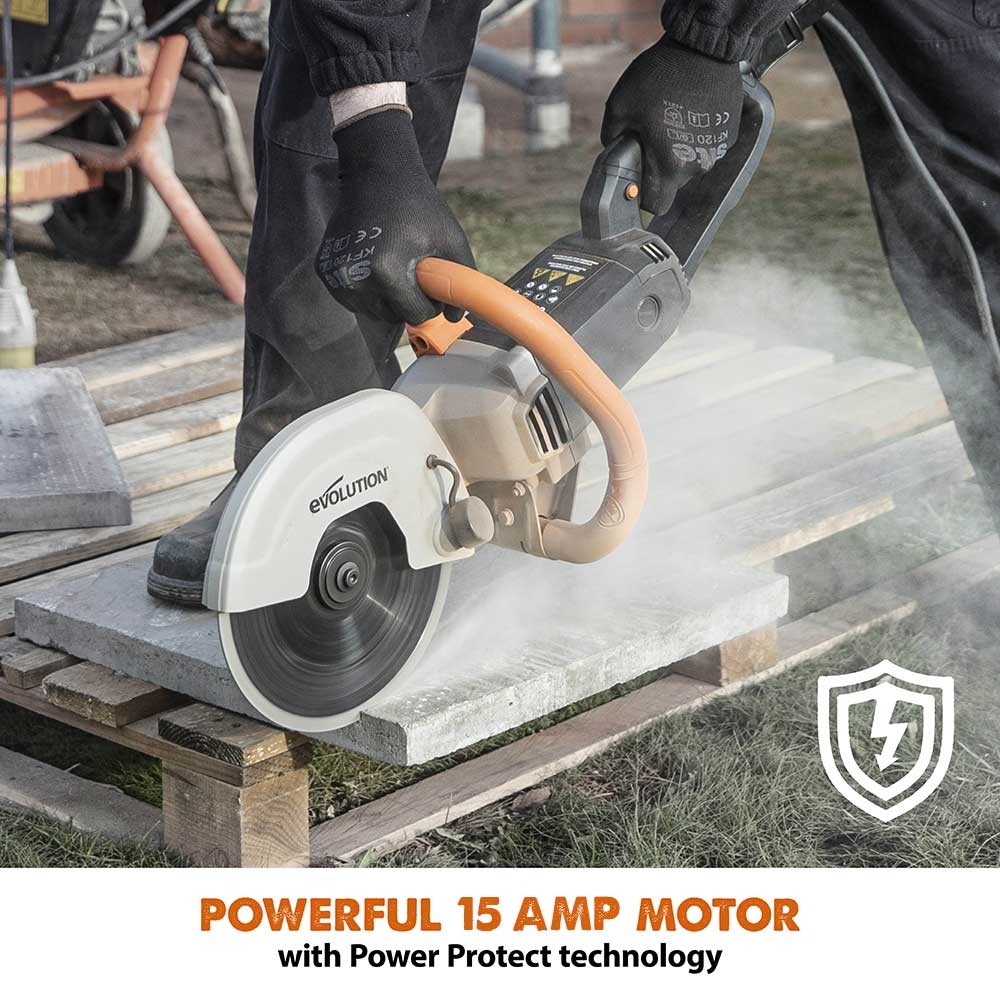

Power	15 Amp
Rated Speed	6000 RPM
Max. Duty Cycle	20 Mins
Weight	15.6 lb
Cable	9 ft 10 in. Rubber Cable
Cutting Capacity at 90˚	3-1/2 in.
Blade Supplied	General Purpose Diamond Blade (D230SEG-CS)
Blade Diameter	9 in.
Blade Bore / Arbor	7/8 in.
Sound Pressure Max. L_PA	98.0dB(A) K=3dB(A)
Sound Power Level Max. L_WA	109.0dB(A) K=3dB(A)
Handle Vibration Max. Level	6.15m/s² K=1.5m/s²

Compatible With:

Evolution 9 in., Segmented Edge, 1 in. Bore, Concrete, Stone, Brick Cutting Diamond Blade (D230SEG-CS)

Evolution 9 in., Segmented Edge with High Diamond Concentration, 1 in. Bore, Premium Diamond Blade (PD230SEG-CS)

Evolution 9 in., Segmented Edge, 1 in. Bore, Multi-Purpose, Metal Cutting Diamond Blade (MD230SEG-CS)

Evolution Soft Shell Carry Tool Bag (012-0250)

*Evolution Electric Disc Cutters are not intended to be used with 3rd party abrasive discs. These tools have not been certified for these blade types and their use could potentially result in accident or injury.

Items Included

Blade	x1 (D230SEG-CS)
Multi-Tool (Adjustments)	x1
Wheeled Undercarriage	x1
Rubber Cap (Extraction Port)	x1
Instruction Manual	x1

Documents

Download PDF Manual

Download PDF Diagrams
