EAGLE SIGNAL CONTROLS BRE7A6 – Time Delay Relay / Electronic Reset Timer

The Eagle Signal Controls BRE7A6 is a microprocessor-controlled electronic reset timer from the BRE Series. It provides an adjustable time delay between activation of the control circuit and operation of the output/load switches. The BRE7A6 is the 120 VAC, 5-minute version.

Parameter	Technical specification
Manufacturer	Eagle Signal Controls / Danaher Industrial Controls
Series	BRE Series
Model / MPN	BRE7A6
Product type	Electronic reset timer / Time delay relay
Function	Adjustable time-delay / electric reset
Supply voltage	120 VAC
Frequency	50/60 Hz
Timing range	3 sec – 5 min
Nominal maximum time	5 minutes
Timing adjustment	Front-mounted analog dial/knob
Timing principle	Microprocessor-controlled electronic timing
Output	2 SPDT relay outputs
Contact rating	10 A nominal
AC load rating	10 A, 1/4 HP at 120–240 VAC
DC load rating	0.5 A at 125 VDC; 0.25 A at 240 VDC
Power consumption	Approx. 1.5 W
Reset time	Approx. 1 ms
Repeatability	Approx. ±0.25% of full scale
Dial setting accuracy	Approx. ±3% of full scale
Minimum setting	Approx. 2% of full scale
Mounting	Surface / panel mount
Termination	9 screw terminals
Wire size	Up to approximately 16 AWG
Operating temperature	−23 to +60 °C
Enclosure material	Injection-molded Lexan®
Indicator	Timing indicator/pilot light depending on configuration
Certification	UL Recognized
Construction	Enclosed, heavy-duty industrial design

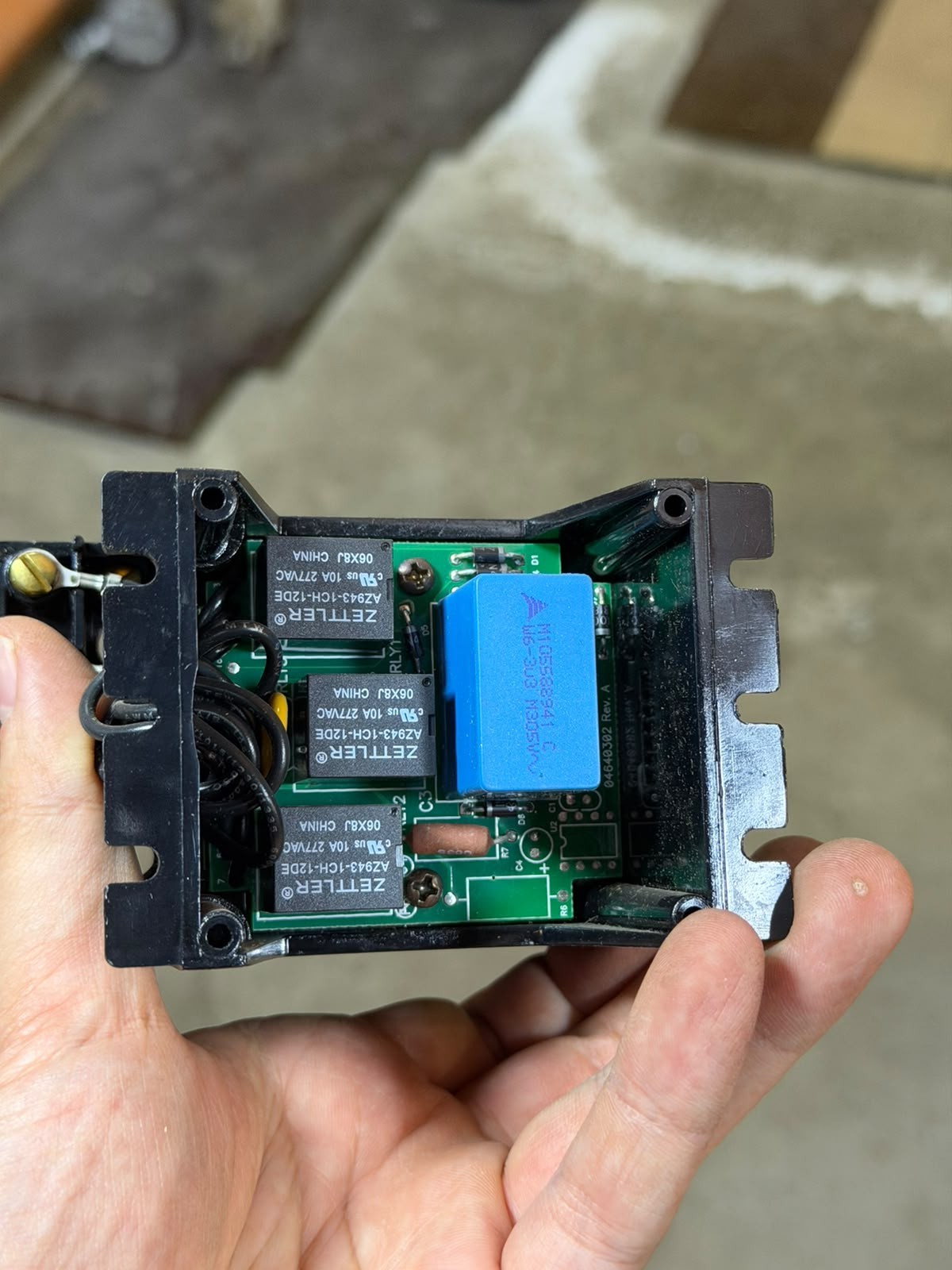

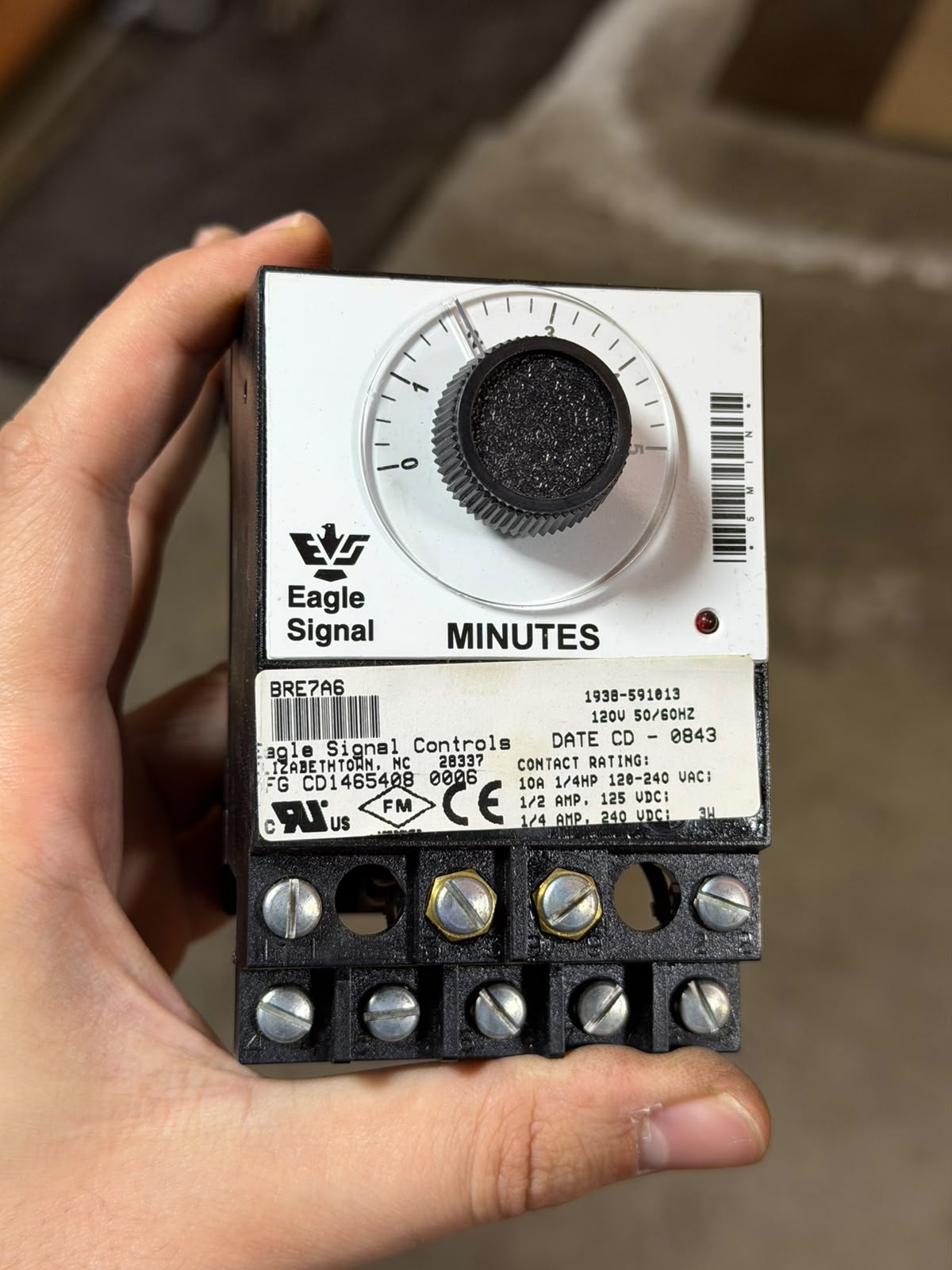

Eagle Signal Controls BRE7A6 Time Delay Relay
