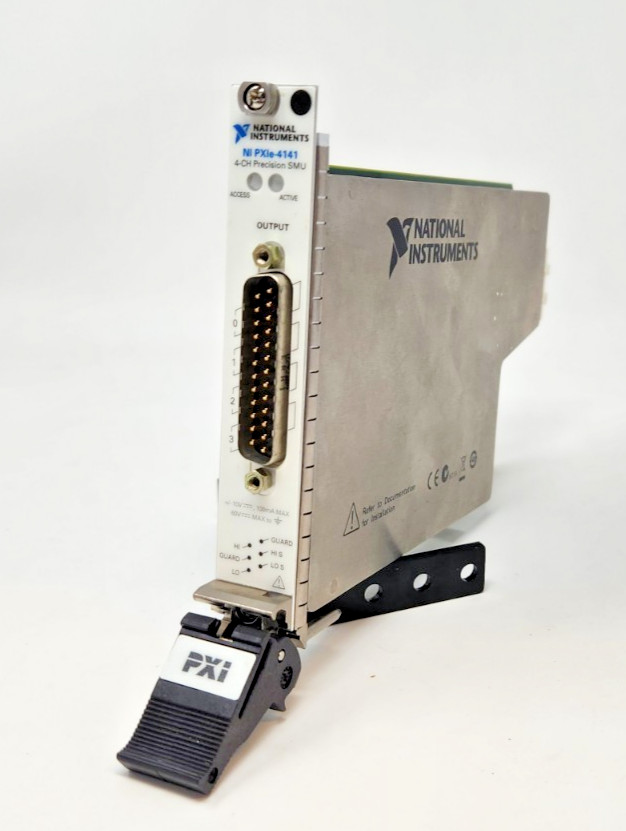

NI PXIe-4141 4-Channel Precision Source Measure Unit (SMU)
Board Assembly Part Number: 150660B-02L

National Instruments NI PXIe-4141 Precision Source Measure Unit, board assembly part number 150660B-02L, in tested working condition.

The PXIe-4141 is a high-performance, 4-channel precision Source Measure Unit (SMU) designed for applications requiring multiple synchronized voltage and current source/measure channels.

Each channel supports four-quadrant operation, allowing the module to both source and sink voltage and current. The PXIe-4141 is well suited for semiconductor characterization, I-V measurements, automated test equipment, component validation, and other precision DC source-and-measure applications.

DETAILS

Manufacturer: National Instruments / NI
Model: PXIe-4141
Board Assembly Part Number: 150660B-02L
NI Ordering Part Number: 781743-01
Platform: PXI Express
Type: Precision Source Measure Unit (SMU)
SMU Channels: 4
Operation: Four-Quadrant Source and Measure
Voltage Range: ±10 V
Current Range: ±100 mA
Current Sensitivity: 10 pA
Maximum Source Power: 1 W per channel
Maximum Sink Power: 1 W per channel
Maximum Measurement Rate: 600 kS/s per channel
Maximum Source Update Rate: 100 kS/s per channel
Remote Sense: Supported
SourceAdapt: Supported
Front Connector: 25-position male D-SUB
Form Factor: 3U, single-slot PXI Express

APPLICATIONS

Semiconductor characterization
I-V curve measurements
Power-management IC testing
Component characterization
Automated test equipment
Production test systems
Research and development
Precision DC sourcing and measurement
High-channel-count automated test systems

CONDITION

Used and tested.

The module has been verified functional and is in good working condition. Clean unit with no known functional defects.

Please review all photographs for the exact cosmetic condition, front connector, rear PXI Express connector, labels, part number, and serial number of the unit being sold.

TESTING / CALIBRATION

The unit has been tested and verified functional.

Calibration status is unknown and is not guaranteed. No calibration certificate is included.

Any calibration or certification required for the buyer's application or quality system is the responsibility of the buyer.

COMPATIBILITY

This is a PXI Express module.

Please verify chassis, slot, controller, driver, and software compatibility before purchasing.

The PXIe-4141 uses the NI-DCPower driver.

SHIPPING

Ships securely from the United States.

The module will be carefully packaged using appropriate anti-static protection, connector protection, cushioning, and a sturdy shipping box.

Ships within the USA only. No international shipping.

Serial number and item condition are documented prior to shipment.

RETURNS / WARRANTY

Returns are accepted within 30 days of the delivery date shown by eBay tracking.

The item must be returned in the same condition in which it was received, with all original packaging, accessories, labels, and serial-number identification intact.

Items returned altered, damaged, missing components, or in materially different condition may be subject to a deduction from the refund to reflect the resulting loss in value, as permitted under eBay policy.

Buyer is responsible for return shipping for compatibility issues, ordering mistakes, or other buyer-remorse reasons. Seller-paid return shipping applies when required under eBay policy.

INCLUDED

One National Instruments NI PXIe-4141, board assembly part number 150660B-02L.

Listing is for the module only. No PXI Express chassis, terminal block, cables, software licenses, adapters, or other accessories are included unless specifically shown in the photographs.
