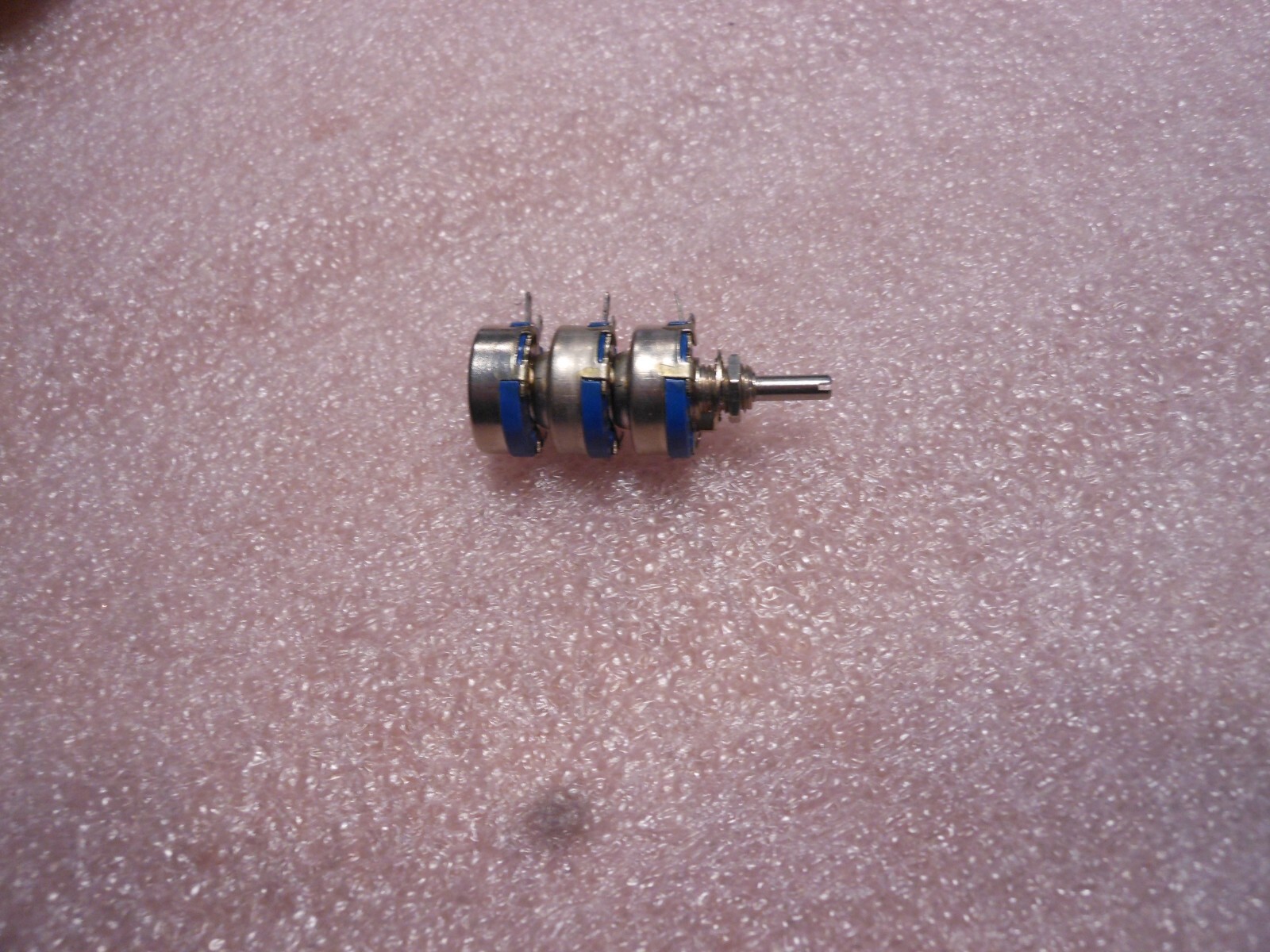

CRL / ROCKWELL RESISTOR PART # 380-3764-010 NATIONAL STOCK # 5905-00-898-0611 PART # BAS123-002

CONDITION IS NEW SURPLUS 1969 DATE CODE

WE SELL AND SHIP TO THE CONTINENTAL USA ONLY

IF YOU INTEND TO EXPORT THIS ITEM YOU ARE RESPONSIBLE FOR ALL EXPORT RULES AND REGULATIONS DOMESTIC AND FOREIGN.

Technical Characteristics

MRC	Name	Requirement	Reply
MRC	AAPN	SECTION QUANTITY	3
MRC	AAQL	BODY STYLE	CYLINDRICAL BUSHING MOUNTED
MRC	AARG	RELIABILITY INDICATOR	NOT ESTABLISHED
MRC	ABPM	BODY DIAMETER	0.672 INCHES NOMINAL
MRC	ABWV	SHAFT DIAMETER	0.125 INCHES NOMINAL
MRC	ABXF	SHAFT LENGTH	0.625 INCHES NOMINAL
MRC	ADAP	MOUNTING BUSHING LENGTH	0.250 INCHES NOMINAL
MRC	ADAQ	BODY LENGTH	1.125 INCHES NOMINAL
MRC	AEDX	SHAFT STYLE	ROUND, SLOTTED
MRC	AEFD	ACTUATOR TYPE	SINGLE SHAFT
MRC	AEFH	EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION	280.0 NOMINAL
MRC	AEFP	NONTURN DEVICE RADIUS	0.234 INCHES NOMINAL
MRC	AJYN	SCREW THREAD DIAMETER	0.250 INCHES NOMINAL
MRC	AJYP	SCREW THREAD SERIES DESIGNATOR	UNEF
MRC	AJYQ	SCREW THREAD QUANTITY PER INCH	32.0
MRC	AXGY	MOUNTING METHOD	STANDARD BUSHING
MRC	CQCC	ELECTRICAL RESISTANCE PER SECTION	10.0 KILOHMS ALL SECTIONS
MRC	CQCK	ROTARY ACTUATOR TRAVEL IN ANGULAR DEG	280.0 NOMINAL
MRC	CQGN	AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER	120.0 ALL SECTIONS
MRC	CQPH	DEVICE DESIGN TYPE	NONTURN AT 9 OCLOCK
MRC	CQTM	TERMINAL LOCATION	RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE
MRC	CRGD	POWER DISSIPATION RATING PER SECTION IN WATTS	0.2 FREE AIR ALL SECTIONS
MRC	CRSS	RESISTANCE TOLERANCE PER SECTION IN PERCENT	-10.0 TO 10.0 ALL SECTIONS
MRC	CRSX	ACTUATOR TRAVEL CONTROL FEATURE	STOPS
MRC	CSDH	AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER	70.0 ALL SECTIONS
MRC	TTQY	TERMINAL TYPE AND QUANTITY	9 TAB, SOLDER LUG

Brand	Rockwell
Tolerance Rating	±0.02 %

CRL / ROCKWELL RESISTOR PART # 380-3764-010 NSN: 5905-00-898-0611 # BAS123-002
