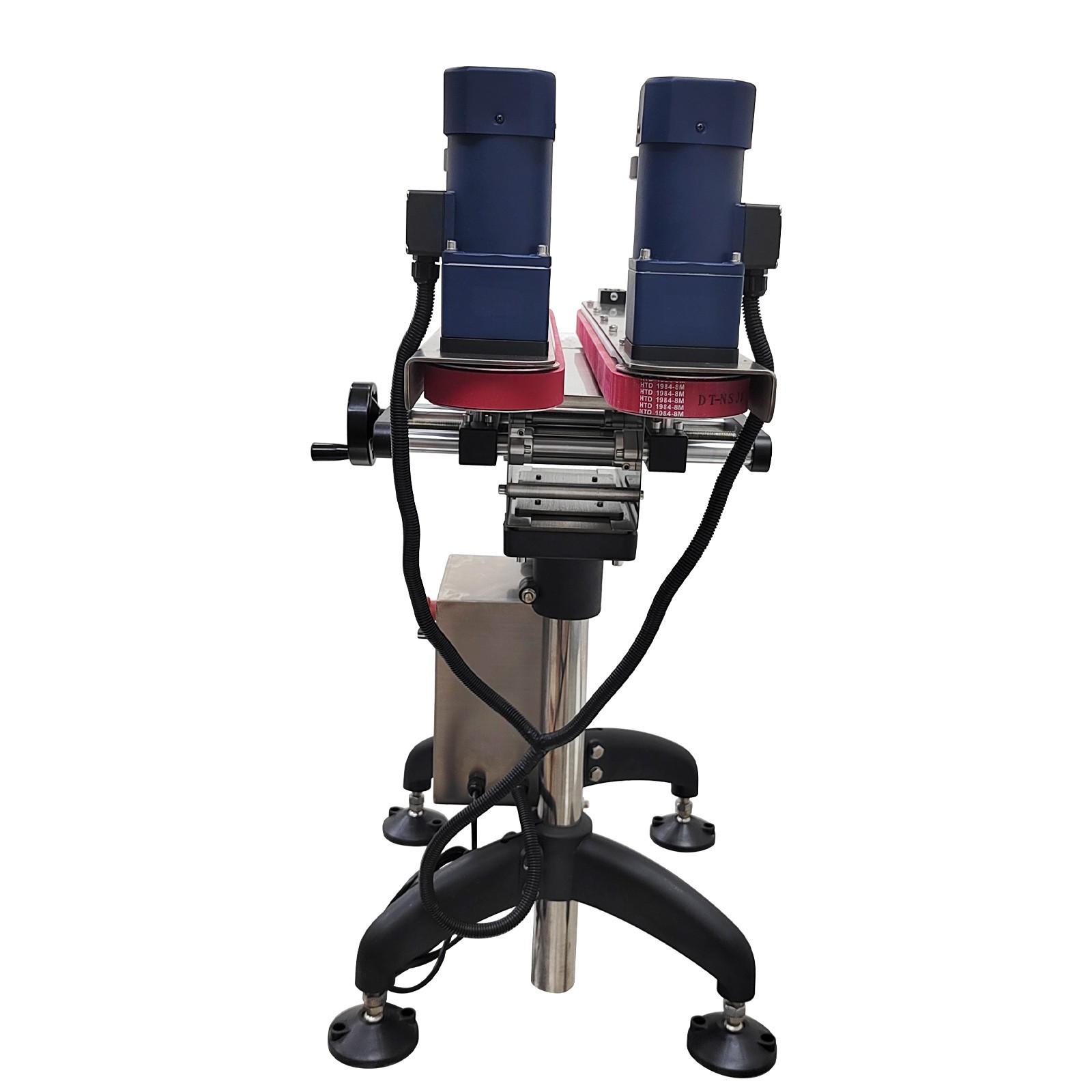

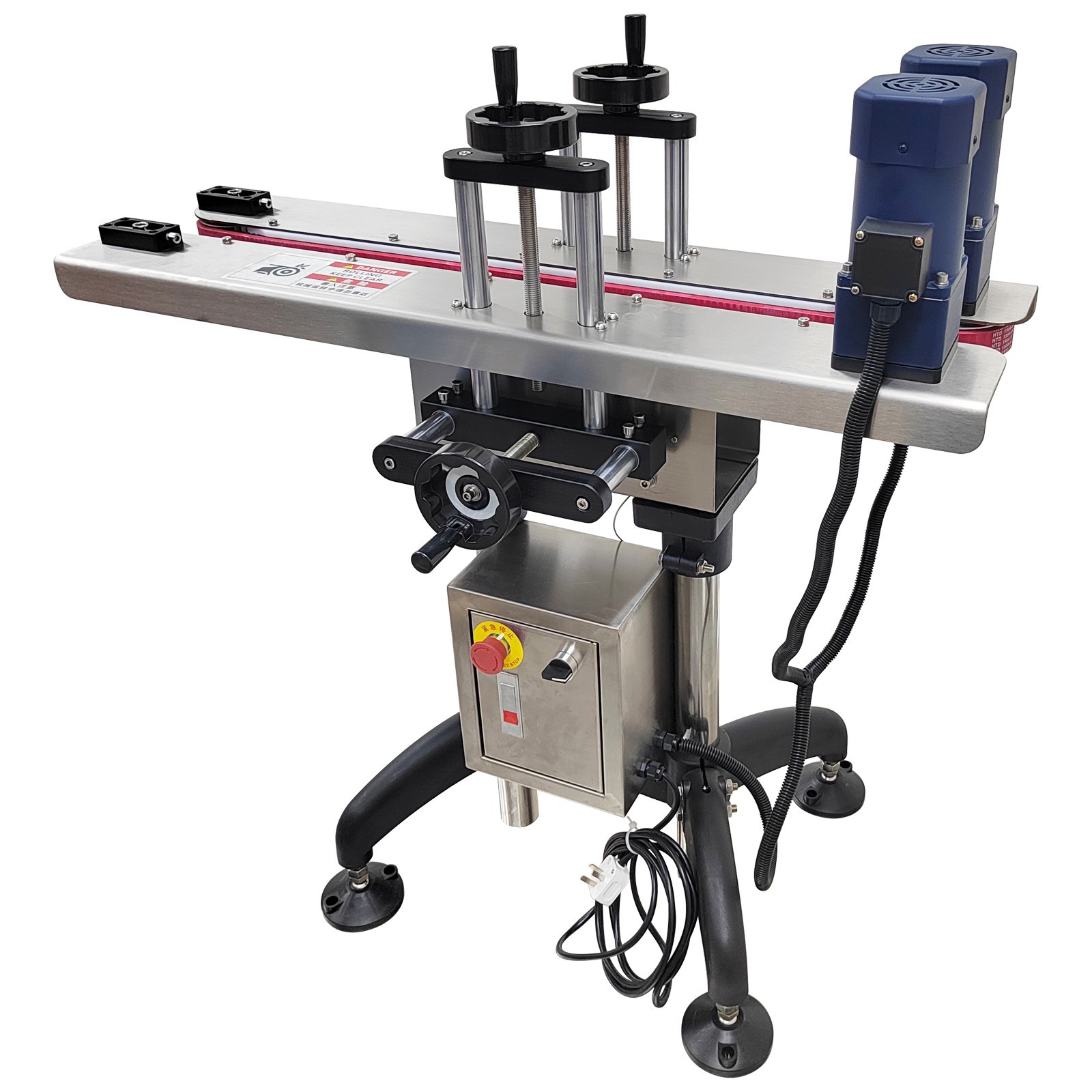

220V Bottle Clamping Conveyor

The bottle clamping conveyor is a device for lifting and conveying bottles. In the using process of the bottle clamping conveyor, the conveying space is saved, and the continuous conveying is also achieved, so that the production speed is increased to a certain extent. The bottle clamping conveyor can coordinate with the requirements of the technological processes in the production procedures of various industrial enterprises to form a rhythmic flow production conveyor line.

Product Parameters

Voltage:	220V
Motor power:	240W
Bottle clamping speed:	45.9ft/min (14m/min)
Bottle clamping range:	0.4-6.3" (10-160mm)
Workbench height:	29.9-33.1"(760-840mm)

Product Features


Stainless Steel Platform The platform is made of stainless steel, which is rust-resistant, corrosion-resistant, and durable.	Double-head Motor High-power motor, easy to use, more efficient, and longer service life.

Adjustable Handle Controls the width of the bottle clamping belt to ensure smooth transition for bottles of various sizes.	Belt Clamps the Bottle Body Securely holds the bottle in place, ensuring stable, safe, and highly efficient operation.

Product Advantages

The diversified structural performance is adopted. The machine has good compatibility, simple structure and easy maintenance, and can be applied to various common bottle types. Moreover, it can conveniently conduct programmed control and automated operation, and is easy to operate and excellent in flexibility. It can also be adjusted according to various types and heights of bottles, and the tightness can be adjusted according to the requirements of customers. The machine has the advantages of high efficiency of transition, high speed, low noise, stable operation, compatibility with transition of multiple products, good reliability, high degree of automation and so on. It is a preferred machine for factories to achieve automated production and enhance the product image.

Precautions

1. Please ensure that the clamping mechanism (such as clamps, belts) is free from deformation, wear, or loosening. Adjust the clamp spacing to match the bottle shape (error ≤ 1 mm) to prevent bottles from tipping over due to excessive looseness or being damaged by excessive tightness.
Check the tension of the conveyor belt to ensure there is no slipping or misalignment.

2. Please remove foreign objects (such as broken bottles or labels) from the conveyor track to prevent bottle jams.

3. When changing bottle types, recalibrate the clamping force (via the pressure regulator or mechanical knob) and perform an empty run for 3–5 minutes to observe conveying stability. Do not directly convey unmatched bottle types.

4. Monitor the bottle conveying posture. If tilting, collisions, or blockages occur, immediately stop the machine for adjustment. Do not manually adjust bottles while the machine is running.

5. Conveyor speed must be synchronized with upstream and downstream equipment (e.g., filling machines, labeling machines) to prevent bottle accumulation caused by excessive speed or reduced production efficiency due to slow speed. It is recommended to gradually adjust the speed via a variable frequency drive to achieve optimal performance.

https://topseller365.com/data/prd/230/493/34.jpg

Item Included (230493):220V Bottle Clamping Conveyor *1

You can make order with no worry.
Any concern just feel free to let us know, we'll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.

On Oct 7, 2025 at 20:13:55 PDT, seller added the following information:

On Dec 30, 2025 at 00:23:59 PST, seller added the following information:

On Jan 9, 2026 at 18:20:32 PST, seller added the following information:

Brand	CHONGYTTUO
MPN	230493
UPC	198462579537

Bottomless Gap Transfer Conveyor Hugger Belt 0.4-6.3" Bottle Clamping Range 220V
