Vintage Delta DP-220 Motor Control Rod Guide Bracket Assembly

This reproduction guide bracket assembly is designed for the Vintage Delta DP-220 Drill Press and supports the motor control rod used to engage and disengage the motor drive system.

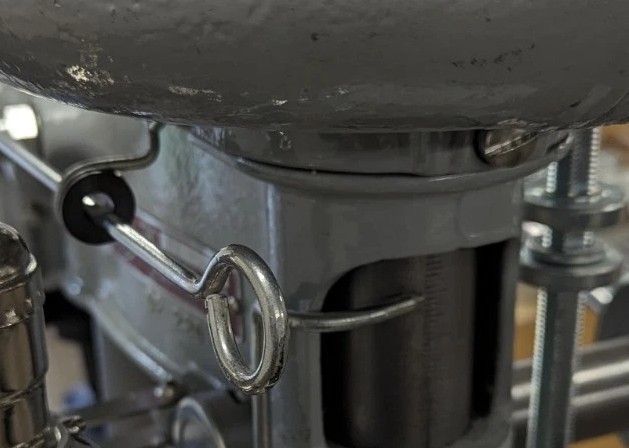

The bracket mounts to the left side of the upper pulley cover and provides a stable guide for the control rod while isolating vibration through an integrated rubber grommet. The grommet helps prevent metal-to-metal contact, reduces wear on the rod, and promotes smooth operation of the motor control mechanism.

Each bracket is fabricated from steel and zinc plated for corrosion resistance and long service life.

Features

✔ Correct reproduction of the original DP-220 guide bracket

✔ Supports and guides the motor control rod

✔ Rubber vibration-isolating grommet included

✔ Helps prevent rod wear and unwanted vibration

✔ Zinc-plated steel construction

✔ Includes zinc-plated 5/16"-18 x 1" fillister head slotted mounting bolt

Common Problems This Part Solves

Missing guide bracket
Missing or deteriorated rubber grommet
Excessive vibration of the control rod
Metal-to-metal wear on the rod
Improper alignment of the motor control mechanism

Compatibility

Designed for Vintage Delta DP-220 Drill Presses equipped with the original motor control rod system.

If you are unsure whether this bracket fits your machine, send us a photo of your drill press and we will be happy to verify compatibility before purchase.

Included

(1) Zinc-plated guide bracket
(1) Rubber vibration-isolating grommet
(1) Zinc-plated 5/16"-18 x 1" fillister head slotted mounting bolt

Manufactured by Vintage Delta Supply Co. LLC

A quality reproduction part designed to restore proper operation and appearance to your Vintage Delta DP-220 Drill Press.

Brand	Vintage Delta Supply Co.
Country of Origin	United States
