PRODUCT OVERVIEW

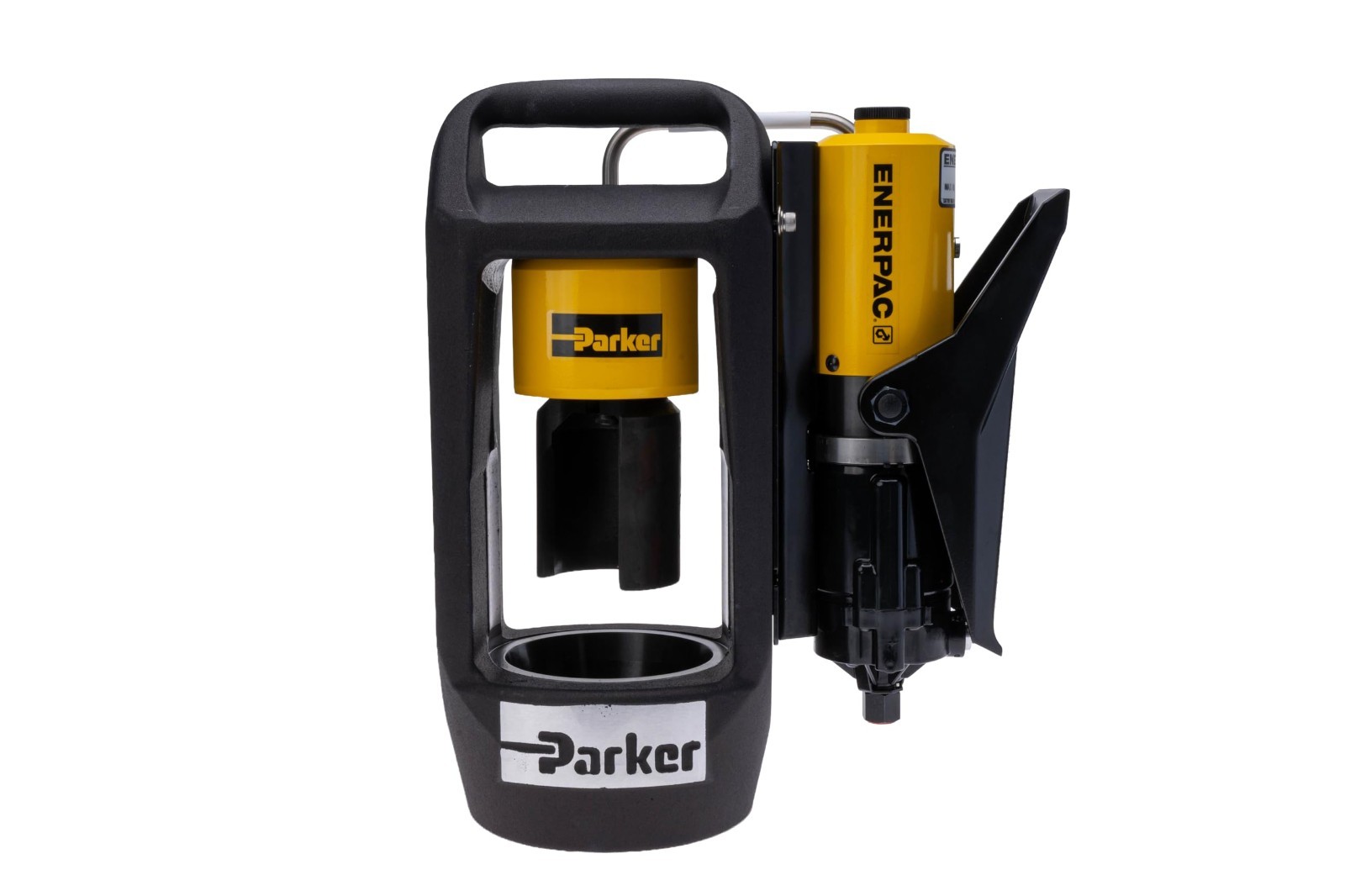

The Parker Hannifin MiniKrimp 94C-002-PFD is a portable, air-over-hydraulic hose crimping machine produced by Parker Hannifin Corporation's Parflex Division. It is designed for high-volume hydraulic hose assembly in both shop and field environments, delivering 30 tons of crimping force at a maximum of 10,000 PSI using plant air or a service truck compressor. The 94C-002-PFD is the air-powered model in the MiniKrimp family, built on the same one-piece, high-strength cast aluminum base unit (94C-080-PFD) as the hand-pump model (94C-001-PFD), with the pump replaced by an air-over-hydraulic power unit for faster, fatigue-free cycle times.

STANDARD EQUIPMENT — WHAT IS INCLUDED

This listing is for the complete 94C-002-PFD standard equipment package as defined in Parker Bulletin 4660-MiniKrimp. It contains:

MiniKrimp Portable Crimping Machine (Base Unit) — Part No. 94C-080-PFD

Air-Over-Hydraulic Pump Kit (includes tubing and adapters) — Part No. 025411

Silver Die Ring — Part No. 82C-R01-PFD

Note: Crimping dies (80C Series) are sold separately and are selected based on hose size and fitting series. The Silver Die Ring (82C-R01-PFD) is the adapter ring that accepts the dies and must be in place for operation — it is included with this unit.

KEY FEATURES

Air-Powered, No Manual Pumping: Connects to any shop air supply or service truck compressor at 60–100 PSI (9 CFM recommended). The air-over-hydraulic pump kit (025411) generates full 10,000 PSI / 30-ton crimping force without operator effort, making it ideal for high-volume hose assembly.

Fast Cycle Time: Approximately 20 seconds to crimp a standard 3/8" hose with a 20-second setup time.

Parkalign Feature: Parker's exclusive Parkalign system positions the fitting correctly in the die cavity every time, eliminating the need to manually set gauges and reducing mis-crimp risk on every assembly.

Cast Aluminum Frame: One-piece, high-strength cast aluminum construction is lightweight, durable, and designed for repeated field and shop use.

Removable Pusher Design: Allows fast die changes between hose sizes without special tools.

Upright Design: Allows easy insertion of bent-tube fittings that cannot be inserted into flat-face crimpers.

Portable and Bench-Mountable: At 45 lbs complete with pump, the 94C-002-PFD can be transported to field repair locations or permanently mounted on a workbench using available mounting accessories (upright table mount 015306, upright vise mount 015307, side vise mount 015736 — all sold separately).

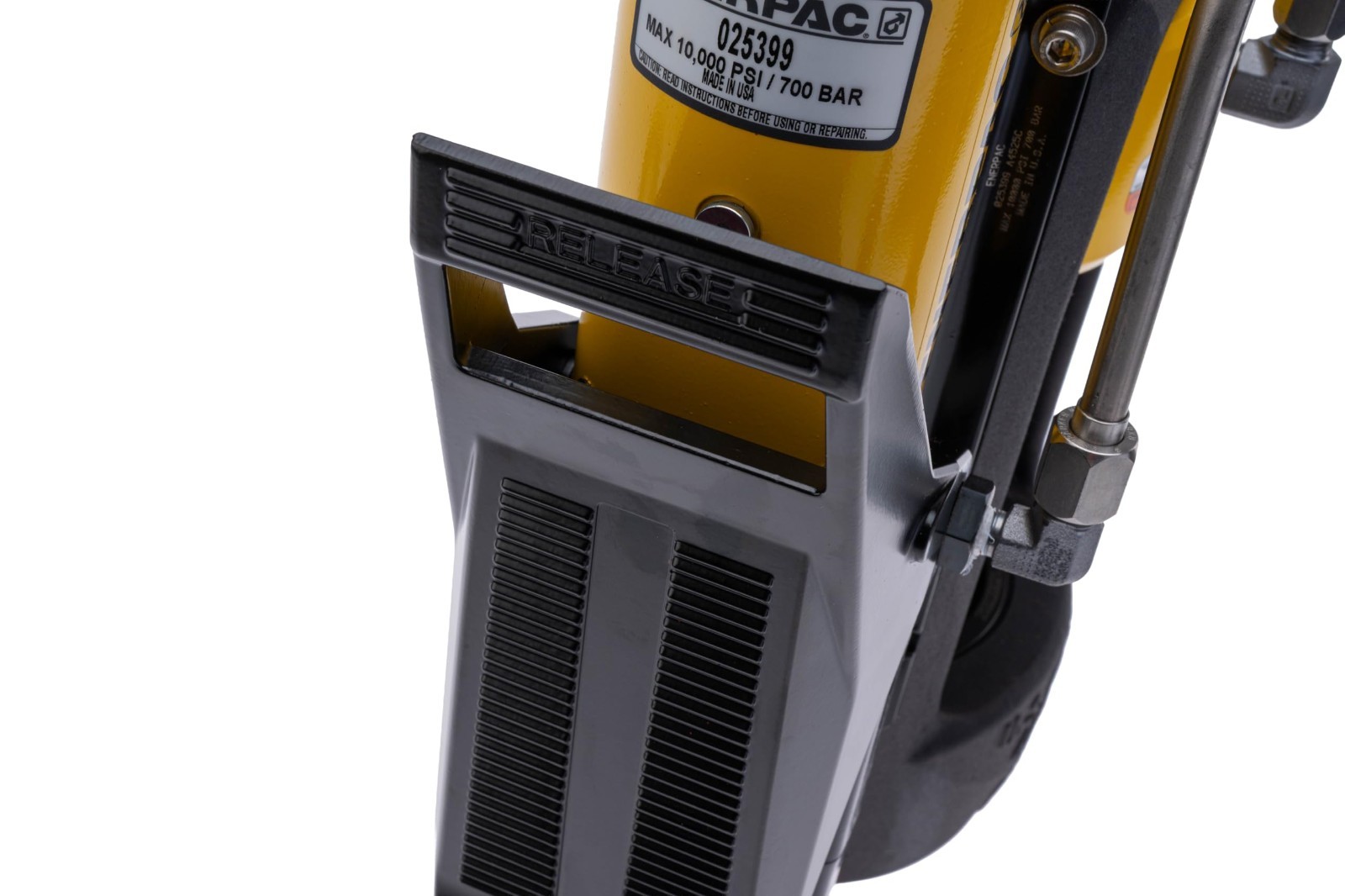

Enerpac-Sourced Pump: Parker MiniKrimp pumps are supplied by Enerpac. For pump repair or warranty service, contact Enerpac at 1-800-558-0530 or www.enerpac.com.

SPECIFICATIONS

Part Number: 94C-002-PFD

Base Unit Part Number: 94C-080-PFD

Air Pump Kit Part Number: 025411

Die Ring Included: 82C-R01-PFD (Silver)

Crimping Force: 30 tons

Maximum Operating Pressure: 10,000 PSI

Air Pressure Required: 60–100 PSI (9 CFM recommended)

Weight (with pump): 45 lbs

Dimensions (with pump): 6" W x 12" D x 15" H

Setup Time: 20 seconds

Cycle Time: Approx. 20 seconds (3/8" hose)

Hose Capacity — Steel and Brass Fittings (HY, 43, 55, 57, 58, 91N Series): Up to 1" I.D. maximum

Hose Capacity — Stainless Steel Fittings (HY, 55, 57, 58, 91N Series): Up to 3/4" I.D. maximum

SAE Hose Standards Supported: 100R1, 100R2, 100R7, 100R8, 100R12, 100R14, 100R16, 100R17, 100R18

Hose Material Types: Thermoplastic, rubber, PTFE, specialty

PART NUMBER FAMILY AND CROSS REFERENCE

94C-001-PFD — MiniKrimp Hand Pump Model (manual operation; no air required; same base unit)

94C-002-PFD — MiniKrimp Air Over Hydraulic Model (this listing)

94C-002-PFD-WS — MiniKrimp Air Over Hydraulic with Stand

94C-080-PFD — MiniKrimp Portable Base Unit (sold separately)

82C-R01-PFD — Silver Die Ring (included with this unit)

82C-R02-PFD — Black Die Ring (optional, sold separately)

025411 — Air Over Hydraulic Pump Kit (included with this unit)

015306 — Upright Table Mount (optional accessory)

015307 — Upright Vise Mount (optional accessory)

015736 — Side Vise Mount (optional accessory)

015309 — Replacement Connection Hose with Quick Coupling (optional)

025349 — Replacement Bent Tube for Air Over Hydraulic Pump (optional)

APPLICATIONS AND COMPATIBILITY

The Parker 94C-002-PFD is used for hydraulic hose crimping across a broad range of industries and field environments, including:

Agricultural equipment repair and maintenance

Construction and heavy equipment field service

Logging and mining equipment maintenance

Oil and gas field service

Industrial plant maintenance

Mobile hose repair service trucks

Military and government fleet maintenance

Fleet and dealer shop hose assembly

COMPATIBLE PARKER FITTING SERIES (Dies sold separately — 80C Series)

Parker 43 Series (most widely used rubber hose fitting; compatible with steel and brass fittings up to 1" and stainless steel up to 3/4")

Parker HY Series

Parker 55 Series

Parker 57 Series

Parker 58 Series

Parker 91N Series

Parker 26 Series [Verified in Parker HPD catalog — verify appropriate die availability before purchasing]

Parker 81 Series [Verified in Parker HPD catalog — verify appropriate die availability before purchasing]

Important: Do not use this machine to crimp 43 Series, 56 Series, 93N Series, or CG Series stainless steel fittings. A minimum 60-ton crimper is required for stainless steel in those series. Use only Parker-recommended power units with this machine. Operating the crimper with non-Parker power units voids warranty coverage.

ABOUT PARKER HANNIFIN

Parker Hannifin Corporation is a Fortune 500 global leader in motion and control technologies, founded in 1917 by Arthur Parker and headquartered in Mayfield Heights, Ohio. The company designs and manufactures precision-engineered components and systems for motion, control, filtration, and fluid handling across aerospace, industrial, mobile, and commercial markets worldwide. The MiniKrimp product line is produced by Parker's Parflex Division, located at 1300 N. Freedom Street, Ravenna, OH 44266, which specializes in thermoplastic hose, fittings, and hydraulic crimping equipment. For technical support, contact Parflex Division at (330) 298-4066.
