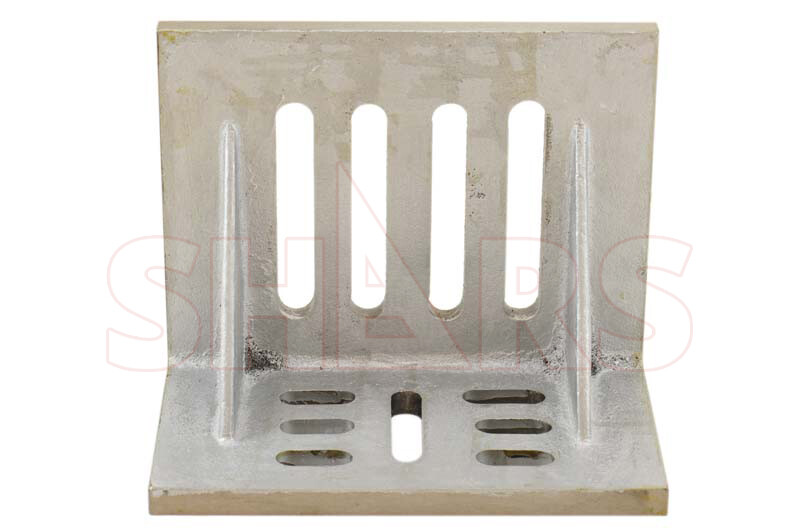

Shars Precision Ground .0005" per 6" Slotted Angle Plate 10 x 8 x 6 Webbed New

Precision finish square and parallel within .0005" per 6"

Founded in 1978, Shars Tool Company has been serving the industrial community and machine shops in the USA for over 30 years. We carry high quality angle plates, with 100% test before shipping.

For cheaper one, we have all ends machined square and parallel within .002" per 6". Please click the following number. 202-4456

Product Code

202-4373

Product description

Dimension L: 10"
Dimension H: 8"
Dimension W: 6"

Product features

Made of high grain cast iron and stress relieved
Clamping slots for easy mounting on workspaces
Webbed type-2 faces
Precision square finish square and parallel within .0005" per 6"
Only ground finished angle plate comes with inspection report by mfg

Shars Dimension

Precision square finish square and parallel within .0005" per 6"

Order No.

Finish

A

B

C

D

E

F

# of Webs

Slots

WT (lbs)

Length of Slots

Distance between Slots

202-4367

Ground

3.5"

3"

2.5"

9/16"

1-3/4"

1/2"

1

(4) 0.3937"

2.205

1.378"

0.787"

202-4368

Ground

4.5"

3.5"

3"

9/16"

2-1/4"

1/2"

1

(4) 0.472"

2.866

1.968"

1.181"

202-4369

Ground

6"

5"

4.5"

11/16"

3"

9/16"

1

(4) 0.5512"

7.716

3.149"

1.378"

202-4370

Ground

7"

5.5"

4.5"

11/16"

3-1/2"

9/16"

1

(4) 0.5512"

8.818

3.543"

1.771"

202-4371

Ground

8"

6"

5"

3/4"

2"

5/8"

2

(4) 0.5906"

12.125

3.543"

1.771"

202-4372

Ground

9"

7"

6"

3/4"

2-1/4"

5/8"

2

(4) 0.6299"

17.637

4.724"

1.575"

202-4373

Ground

10"

8"

6"

7/8"

2-1/2"

11/16"

2

(4) 0.6299"

24.251

5.108"

1.771"

202-4374

Ground

12"

9"

8"

1"

3"

3/4"

2

(11) 0.7874"

35.274

5.906"

1.771"

If you like pick another angle plates which are listed on above table, please click order numbers.

Suburban Dimension

Precision square finish square and parallel within .0005" per 6"

Finish	A	B	C	D	E	F	# of Webs	Slots	WT (lbs)	Price
Ground	3.5"	3"	2.5"	9/16"	1-3/4"	1/2"	1	(4) 7/16"=0.4375”	4	$ 137.00
Ground	4.5"	3.5"	3"	9/16"	2-1/4"	1/2"	1	(4) 9/16"=0.5625”	5	$ 140.00
Ground	6"	5"	4.5"	11/16"	3"	9/16"	1	(4) 11/16"=0.6875”	13	$ 173.00
Ground	7"	5.5"	4.5"	11/16"	3-1/2"	9/16"	1	(4) 11/16"=0.6875”	14	$ 249.00
Ground	8"	6"	5"	3/4"	2"	5/8"	2	(4) 9/16"=0.5625”	22	$ 311.00
Ground	9"	7"	6"	3/4"	2-1/4"	5/8"	2	(4) 11/16"=0.6875”	28	$ 382.00
Ground	10"	8"	6"	7/8"	2-1/2"	11/16"	2	(4) 11/16"=0.6875”	37	$ 425.00
Ground	12"	9"	8"	1"	3"	3/4"	2	(11) 11/16"=0.6875”	63	$ 682.00

If you like you can also purchase these different types of angle plates, please visit my Ebay store:

L×H×W	Weight(lbs)	Webbed Order No.	Open-end Order No.
3-1/2 x 3 x 2-1/2"	3	202-4450	202-4460
4-1/2 x 3-1/2 x 3	7	202-4451	202-4461
6 x 5 x 4-1/2	8	202-4452	202-4462
7 x 5-1/2 x 4-1/2	10	202-4453	202-4463
8 X 6 X 5	12	202-4454	202-4464
9 x 7 x 6	17	202-4455	202-4465
10 X 8 X 6	22	202-4456	202-4466
12 X 9 X 8	44	202-4457	202-4467

All Available to Ship NOW! at Fixed Prices

If you need to speak to a sales person feel free to call. We are open Monday through Friday 8:30 to 5:00 central. Phone: 1-630-443-3244
Email: DISCOUNT_MACHINE@AOL.COM

SHIPPING: UPS Ground

Buyer pays ACTUAL UPS shipping & insurance, and a $3.00 handling fee for this item to be shipped to all states within the continental United States. Hawaii, Alaska & and other United States Territories will ship via UPS BLUE. Canada will pay actual shipping costs plus duty fees via UPS.
We can combine other auctions or store items to save on shipping. You may ask for freight cost before buying tools. Shipment will be made the same day as your payment is received and an UPS tracking number will be email to you. If your order is being shipped to an address outside of the United States, local consumer tax and/or customs duty , brokerage charges may apply and the package's recipient may need to pay these to clear customs.

PAYMENT:

We accept VISA, Master, Discover, American Express and E-Check on PayPal.com
Illinois resident adds 8% sales tax.

RETURNS:

If the item stated as brand new is found defective on arrival or incorrect item was shipped, buyer understands that the product will be repaired or replaced at seller's discretion, and be given a reasonable amount of time. Buyer is responsible for return shipping costs and insurance. Warranties are offered by the manufacturer and will be honored by the manufacturer. All shipping and handling fees will not be returned in any case.

Any questions regarding our tools, feel free to email us at DISCOUNT_MACHINE@AOL.COM

click here to visit my Ebay store now

MPN	202-4373
Brand	Shars Tool
Country of Origin	China

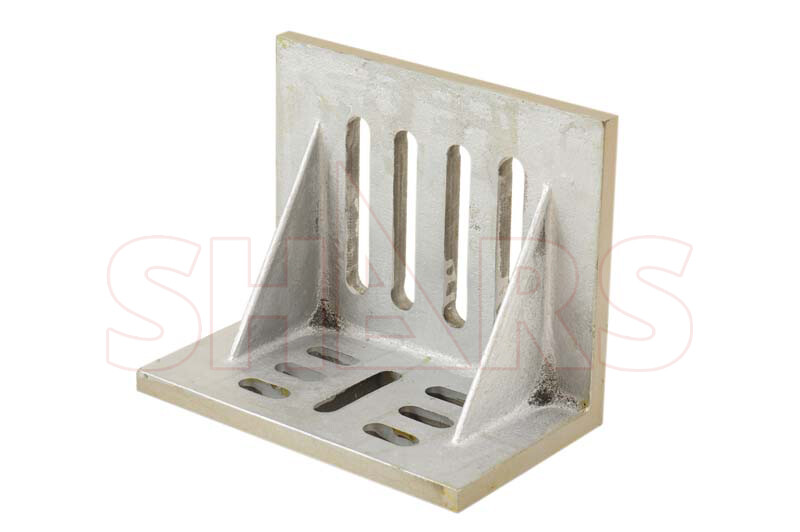

Ground .0005" Webbed Slotted Angle Plate 10 x 8 x 6" High Tensile Cast Iron R
