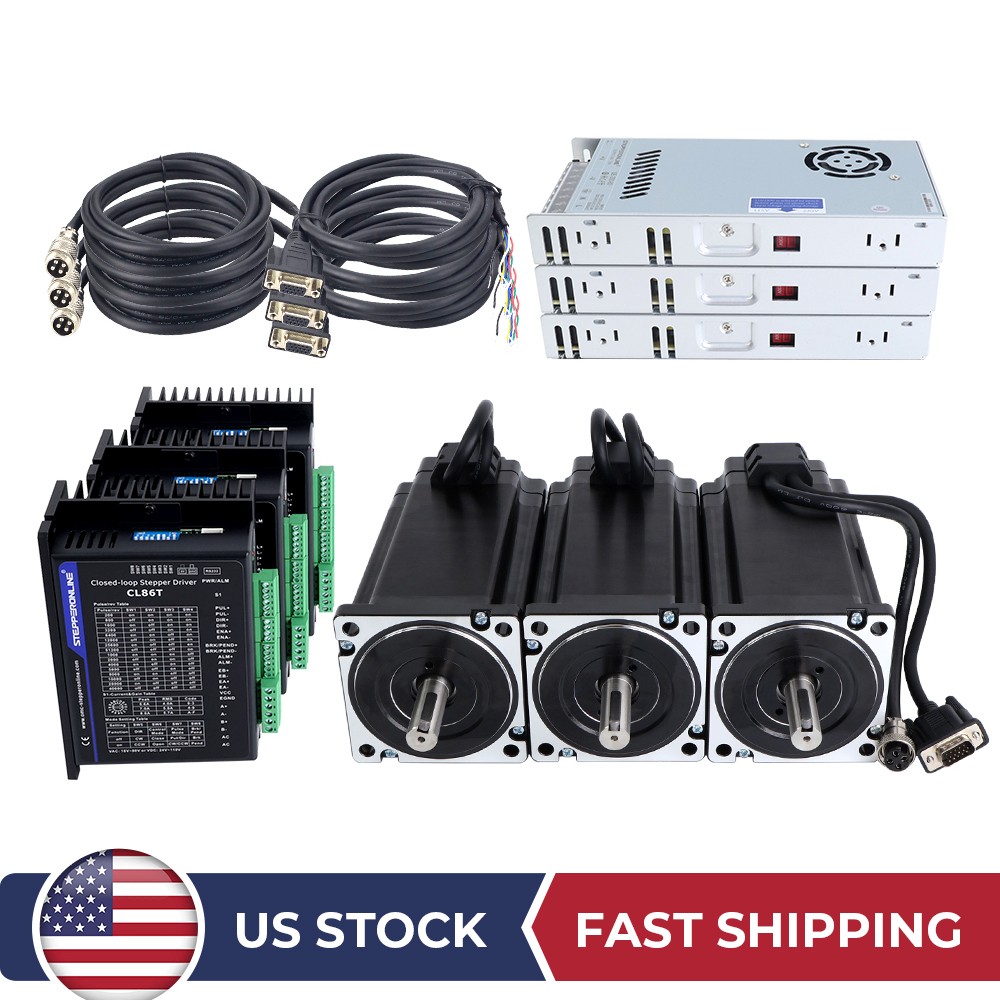

STEPPERONLINE 3 Axis 12Nm Nema 34 Closed Loop Stepper Motor Driver CL86T Kit
USD
$515.00
Seller:
stepperonline
100.0% positive
(13,903 reviews)
Perth Amboy, US
Only 7 left
US
Shipping
Standard Shipping
FREE
Request Quote
View on eBay
As an eBay Partner Network Affiliate, I earn from qualifying purchases.
Secure Transaction
Fast Response
Quality Guarantee
Specifications
| Country of Origin | China |
|---|---|
| Actual Rated Input Voltage | 24-80VDC |
| Full Step Angle | 1.8° (200 Steps) |
| Rated Current per Phase | 6A |
| Microstep | 800-40000(Steps/rev.) |
| Shaft Type | Keyway Shaft |
| Shaft Diameter | 0.55 in (14mm) |
| Package Content 5 | 350W 60V 5.9A Switching Power Supply |
| MPN | 3-CLTS120-V41 |
| Control Modes | Pulse Mode |
| Package Content 2 | 3 x Closed Loop Stepper Driver |
| Package Content 1 | 3 x Nema 34 Closed Loop Stepper Motor |

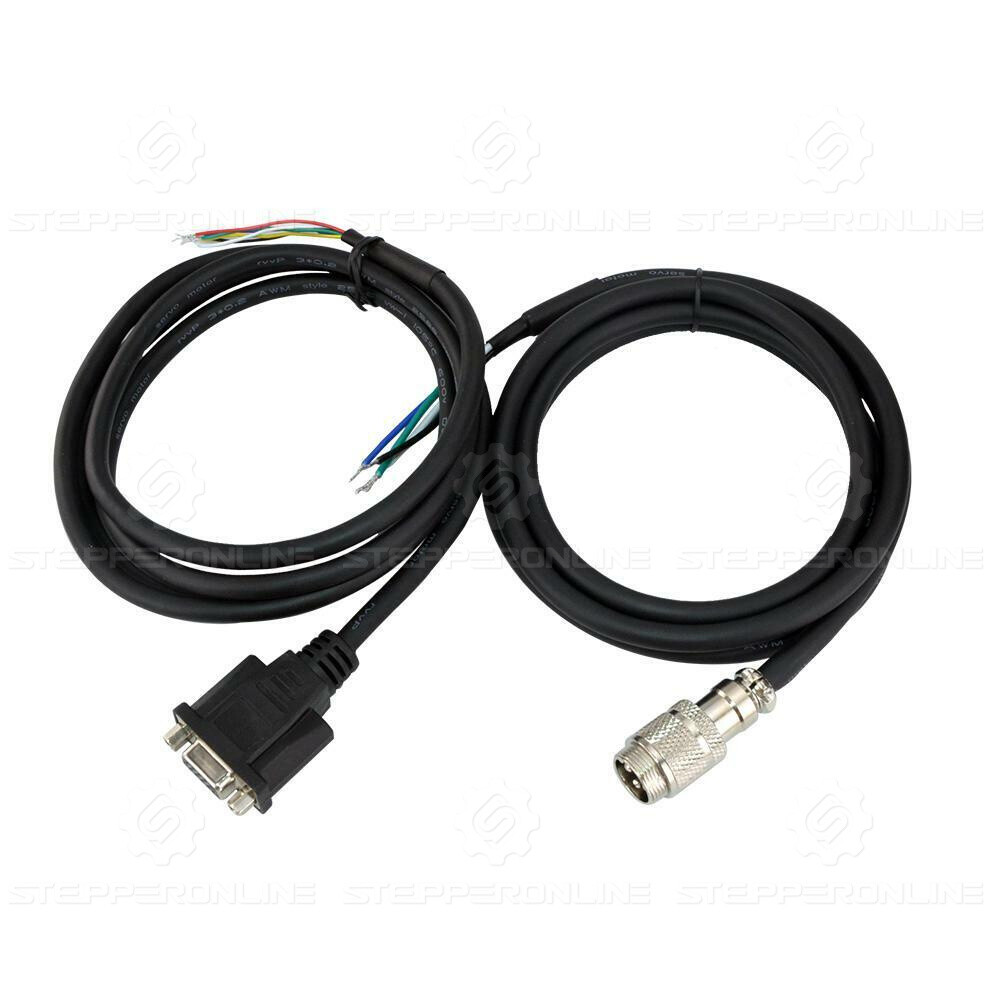

| Package Content 4 | 3 x AWG18 1.7m Long Motor Extension Cable |
| Package Content 3 | 3 x 1.7m Long Encoder Extension Cable |
| Holding Torque | 12Nm(1699.68oz.in) |
| Brand | STEPPERONLINE |
| Current Type | DC |
| Number of Axes | 3 |
| Product Type | Closed Loop Kit |
| Nominal Rated Input Voltage | 24 V, 48 V, 24-80VDC |
| Resistance per Phase | 0.7 ohms± 10% |
| Wiring Configuration | 4-Wire Bipolar |
| Max. Pulse Input | 200(kHZ) |
| No. of Phase | 2 |
| UPC | 750226819992 |
