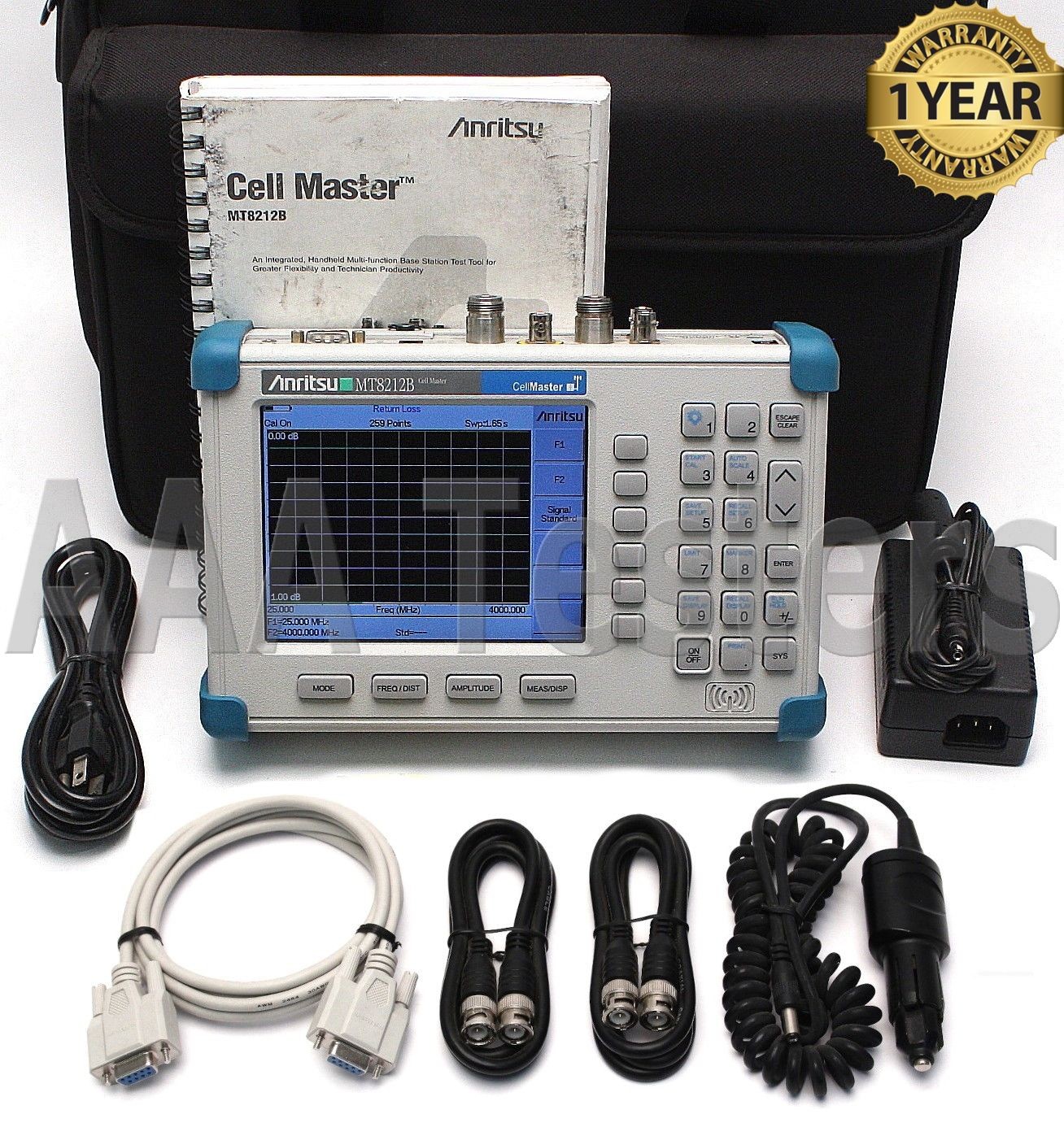

The Following Items Are Included:

Anritsu CellMaster MT8212B Cable, Antenna and Base Station Analyzer (BC# 32713-L/T*) w/ Options
- Option 21: Transmission Measurement
- Option 25: Interference Analyzer
- Option 27: Channel Scanner
- Option 31: GPS
- Option 33: cdmaOne/ CDMA2000 1xRTT (OTA)
- Option 34: EVDO Over The Air
- Option 42: CDMA - RF Measurements
- Option 43: cdmaOne/ CDMA2000 1xRTT Demodulator
- Option 62: EVDO - RF Measurements
- Option 63: EVDO Demodulator
(2) BNC Cables
DC Car Charger
AC Adapter/Charger
Power Cord
RS232 PC Interface Cable
Hard Copy User Manual
Carrying Case (G)

BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS!

This Item Has A Current Calibration!

Anritsu CellMaster MT8212B Cable, Antenna and Base Station Analyzer

Installed Options:
- Option 21: Transmission Measurement
- Option 25: Interference Analyzer
- Option 27: Channel Scanner
- Option 31: GPS
- Option 33: cdmaOne/ CDMA2000 1xRTT (OTA)
- Option 34: EVDO Over The Air
- Option 42: CDMA - RF Measurements
- Option 43: cdmaOne/ CDMA2000 1xRTT Demodulator
- Option 62: EVDO - RF Measurements
- Option 63: EVDO Demodulator

Includes Carrying Case & Accessories As Listed Above!

Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY

Anritsu MT8212B Cell Master - Base Station Test Tool

The Anritsu Cell Master MT8212B is a hand held cable and antenna analyzer power meter and spectrum analyzer that includes a keypad to enter data and a color lcd to provide graphic information of various measurements.

The Cell Master is capable of up to 1.5 hours of continuous operation from a fully charged field-replaceable battery and can be operated from a 12V dc source. Built-in energy conservation features can be used to extend battery life.

The Anritsu MT8212B is designed for measuring SWR, return loss, cable insertion loss and locating faulty RF components in antenna systems, and includes spectrum analysis capabilities with carrier-to-interference analysis.

The displayed trace can be scaled or enhanced with frequency markers or limit lines. A menu option provides for an audible "beep" when the limit value is exceeeded. The LCD brightness can be adjusted for optimum visibility in varying environments.

Anritsu MT8212B Cable and Antenna Analyzer

Frequency Range	25MHz to 4GHz
Frequency Accuracy	± 75ppm @ + 25 °C
Frequency Resolution	100kHz
Output Power	< 0 dBm (-10 dBm nominal)
Immunity to Interfering Signals	on channel +17 dBm; on frequency -5dBm
Measurement Speed	≤ 3.5msec / data point (CW ON)
Number of data points	130, 259, 517
Return Loss	Range:	0.00 to 60.00 dB
	Resolution:	0.01 dB
VSWR	Range:	1.00 to 65.00
	Resolution:	0.01
Cable Loss	Range:	0.00 to 30.00 dB
	Resolution:	0.01 dB
Measurement Accuracy	>42dB corrected directivity after calibration
DISTANCE-TO-FAULT
Vertical Range	Return Loss:	0.00 to 60.00 dB
	VSWR:	1.00 to 65.00
Horizontal Range	0 to (# of data pts –1) x Resolution to a maximum of 1197 m (3929 ft), # of data pts = 130, 259 or 517

Anritsu MT8212B Spectrum Analyzer

Frequency Range	100 kHz to 3.0 GHz (tuneable to 9 kHz)
Frequency Reference (Internal Timebase)	Aging:	±1 ppm/yr
	Accuracy:	±2 ppm
Frequency Span	10 Hz to 2.99 GHz in 1, 2, 5 step selections in auto mode, plus zero span
Sweep Time	≤1.3 sec full span; ≤50 µsec to 20 sec zero span
Resolution Bandwidth (–3 dB)	100 Hz to 1 MHz in 1-3 sequence ±5% Accuracy
Video Bandwidth (–3 dB)	3 Hz to 1 MHz in 1-3 sequence
SSB Phase Noise (1 GHz) @ 30 kHz Offset	≤–75 dBc/Hz
Spurious Responses Input Related	≤–75 dBc/Hz
Spurious Residual Responses	≤–90 dBm, ≥10 MHz
	≤–80 dBm, <10 MHz
	(10 kHz RBW, pre-amp on)
AMPLITUDE
Total Level Accuracy	±1 dB typical (±1.5 dB max), ≥10 MHz to 3 GHz
	±2 dB typical <10 MHz for input signal levels –60 dBm, excluding input VSWR mismatch
Dynamic Range	>65 dB, typical
Display Range	1 to 15 dB/division, in 1 dB steps, 10 divisions displayed
Scale Units	dBm, dBV, dBmV, dBµV, V, W
RF Input VSWR	(with ≥20 dB atten.) 1.5:1 typical, (10 MHz to 2.4 GHz)
