The Following Items Are Included:

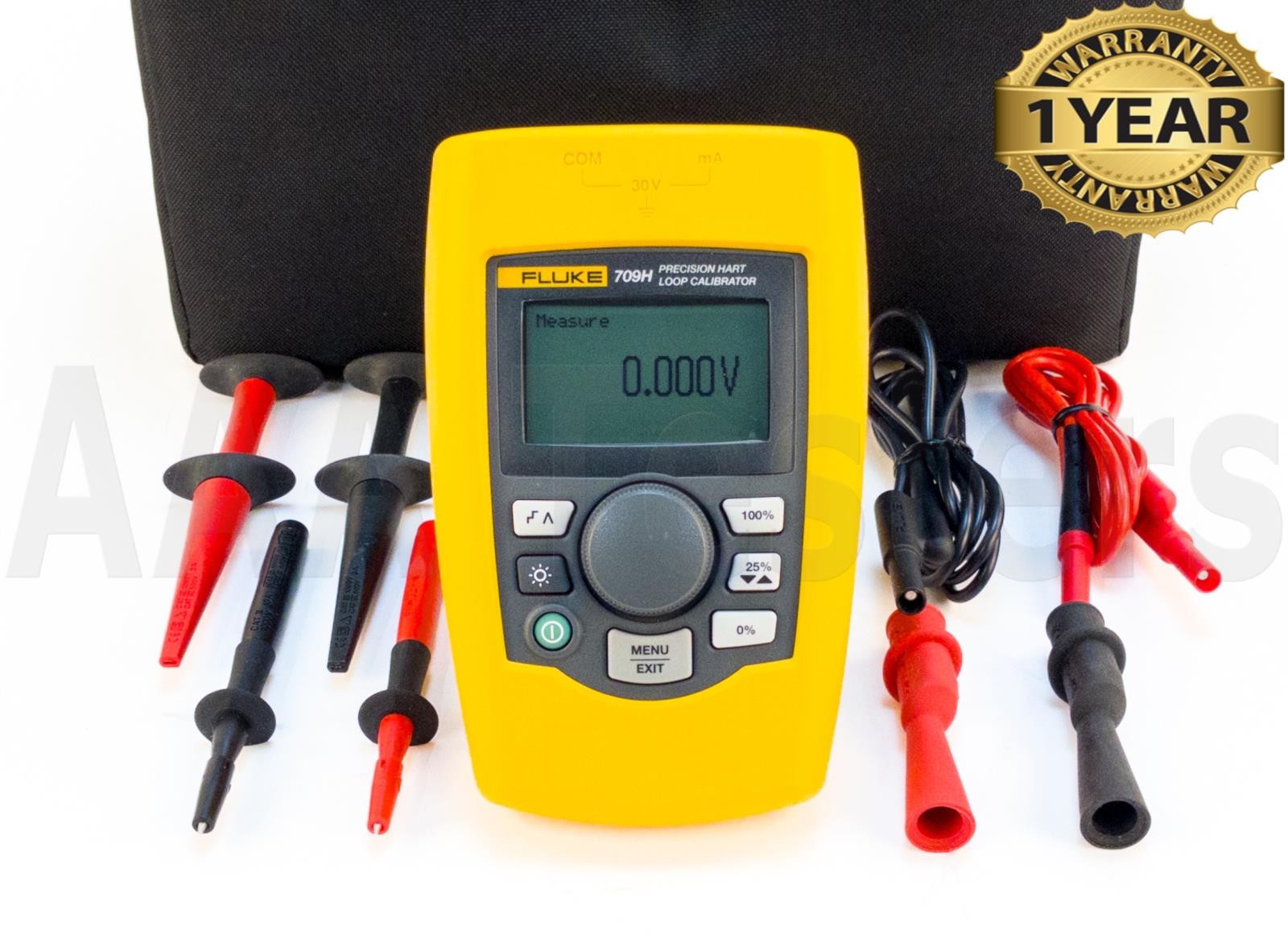

Fluke 709H Precision Loop Calibrator
(2) Fluke Stackable Test Lead Cables
(2) Test Leads
(2) Alligator Clips
(2) Hook Clips
Carrying Case

BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS!

This Item Has A Current Calibration!

Fluke 709H Precision Loop Calibrator

Best-in-class accuracy at 0.01% reading

Includes Carrying Case & Accessories As Listed Above!

Working Condition: Excellent
Condition: Refurbished
Warranty: 1 YEAR WARRANTY

Fluke 709H Precision Loop Calibrator

Hart communications

The 709H adds HART communications and supports a select set of the HART universal and common practice commands. This makes the 709H unique as both an affordable, compact loop calibrator and powerful HART communication troubleshooting tool.

In the communicator mode the user will be able to read basic device information, perform diagnostic tests, and trim the Ma output on most HART enabled. In the past, this could only be done with a dedicated communicator, a high-end multifunction calibrator, or a laptop computer with HART modem.

Fluke 709H will allow virtually technician to service and support HART devices.

Saving time, getting answers

In addition, the 709H offers:

Logging of HART data in the field. Once recorded by the 709H in the field, the 709H/ TRACK software can upload the HART configuration of up to (20) HART devices in your and output data in either (.csv) or (.txt) format.
Data logged mA loop measurements and HART data can be recorded from a particular transmitter for troubleshooting and loop tuning. The data log feature offers selectable capture with recording intervals of 1 to 60 seconds and a logging capacity of 9800 records or 99 individual sessions.

Each data sample contains the709H mA measurement, all four process variables, and the standard status conditions.

Key features

mA precision loop calibrator that communicates with and tests HART smart instruments
Features best-in-class accuracy at 0.01% reading
Provides intuitive user interface with Quick-Set knob for fast setup
Includes built in selectable 250 Ω resistor for HART communication
Features 24 V DC loop power with mA measure mode (-25% to 125%)

Specifications:

Functions	mA source, mA simulate, mA read, mA read/loop power, and volts read.
Ranges	mA (0 to 24mA) and Volts (0 to 30VDC)
Resolution	1uA on mA ranges and 1mV on voltage range
Accuracy	0.01% +/- 2 counts all ranges (@23° +/- 5°C)
Operating temperature range	-10 °C to 55 °C (14 °F to 131°F)
Humidity range	10 to 95% non-condensing
Stability	20ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C
Display	128 x 64 pixels, LCD Graphic w/backlight, .34” high digi
Power	6 AAA alkaline
Battery Life	≥ 40 hours continuous use (measure mode using alkaline)
Loop Compliance Voltage	24VDC @ 20mA
Over-Voltage Protection	240VAC
Overload Current Protection	28mA DC
EMC	EN61326 Annex A (Portable Instruments)
Dimensions (L x W x D)	15 cm x 9 cm x 3 cm (6” x 3.6” x 1.3”)
Weight	0.3 kg (9.5 ounces)
