Brand new. Manufacture date between 05/2020 and 07/2020

PALL OEM Specs - https://shop.pall.com/us/en/microelectronics/graphic-arts/ink-filtration/zidgri78lpk

High Performance Point-of-Use Filters Ensure Printhead Protection from Contamination and Optimum Printer Performance

The Acro® Last Chance Filter (LCF) is a self-contained filter assembly for point-of-use filtration in digital printing systems. It is designed to be used together with any of Pall's larger capsules in large systems or as a stand-alone filter in smaller systems. A laboratory-size filter is also available for testing new ink formulations and conducting printing trials.

HDC® II and Rigimesh® media options are available for the Acro LCF. HDC II media is all polypropylene and has a tapered pore structure. It provides good flow rates, long service life, and excellent gel retention. Rigimesh media is a sintered woven stainless steel wire mesh structure that provides excellent chemical compatibility across a wide range of ink chemistries.

Features

Economical and compact point-of-use filter for digital printers
Specially selected connections for fast filter changes
Available in three sizes, for a wide range of applications
Housing material optimized for maximum blockage of UV light
Media selected for maximum performance in ink jet systems
Designed to be used together with another Pall capsule or as a stand-alone filter

Features	Advantages	Value
Manufactured using Pall's Premium Syringe Filter technology (Acro 25 LCF)	Large effective filter area in a compact design	Can handle a wide range of flow rates without printhead starvation
UV-light-resistant housing materials (Acro 25 LCF, Acro 37 LCF)	Negligible UV light penetration into the filter assembly (<0.02%)	Helps prevent curing of UV-sensitive materials
Low internal ink hold-up volume	Minimal ink required for flow	Rapid ink system priming cycles
Economical construction	Minor impact on initial build and maintenance costs	Performance improvement with minimal impact on cost
All versions feature all–polypropylene construction	Good compatibility across a wide range of ink jet ink chemistries	One filter design can be applied universally across multiple printer families
Luer-Lok1 compatible and compression fitting connectors on both inlet and outlet	Secure inlet and outlet connections with positive sealing architecture	Minimal chance for leakage; fast filter changes
No binders, glues, or mold release agents used	Low extractables	Good chemical compatibility; economical disposal

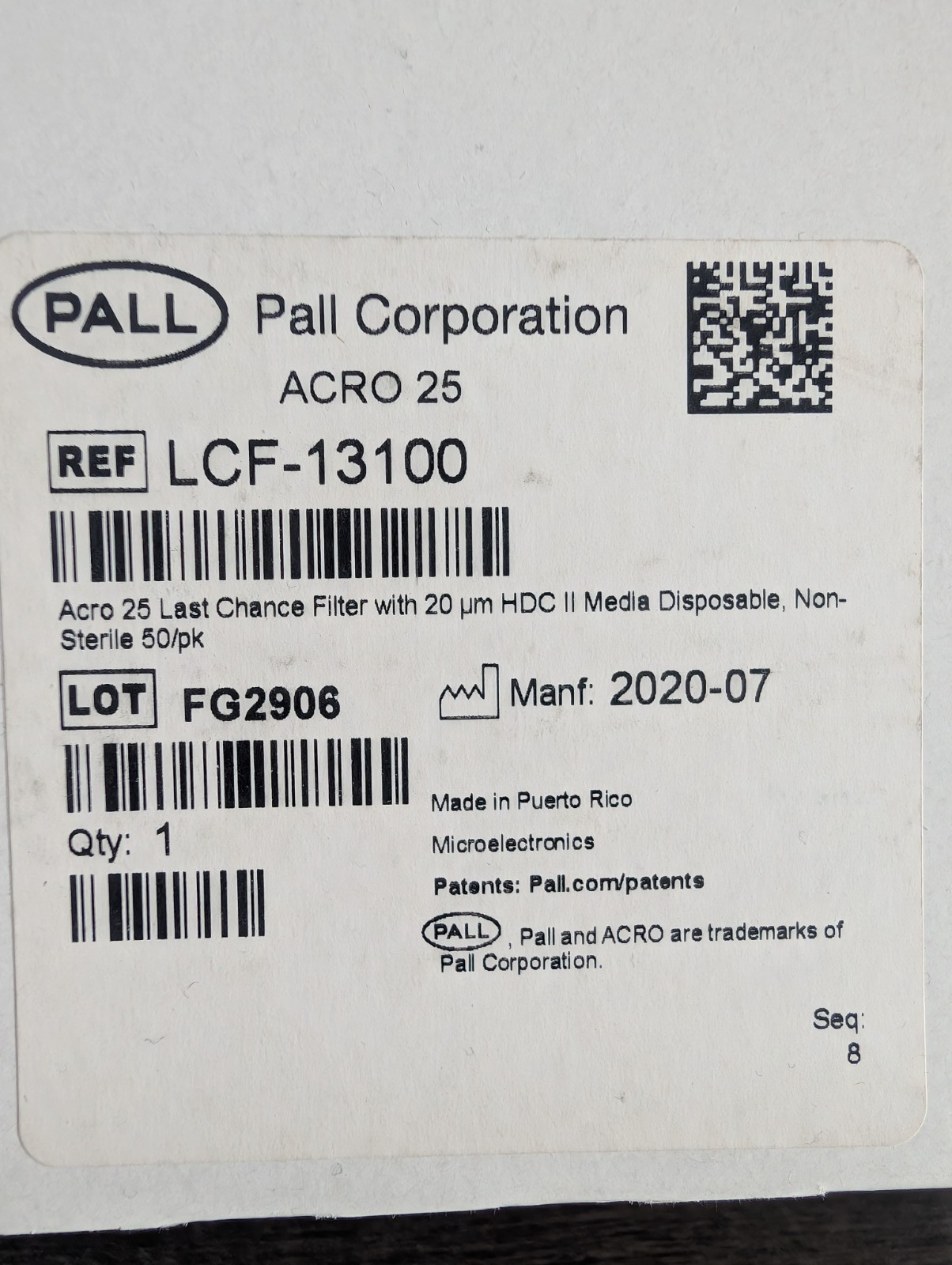

Pall LCF-13100 - Acro 25 - Last Chance Filterer with 20 um HDC II Media
