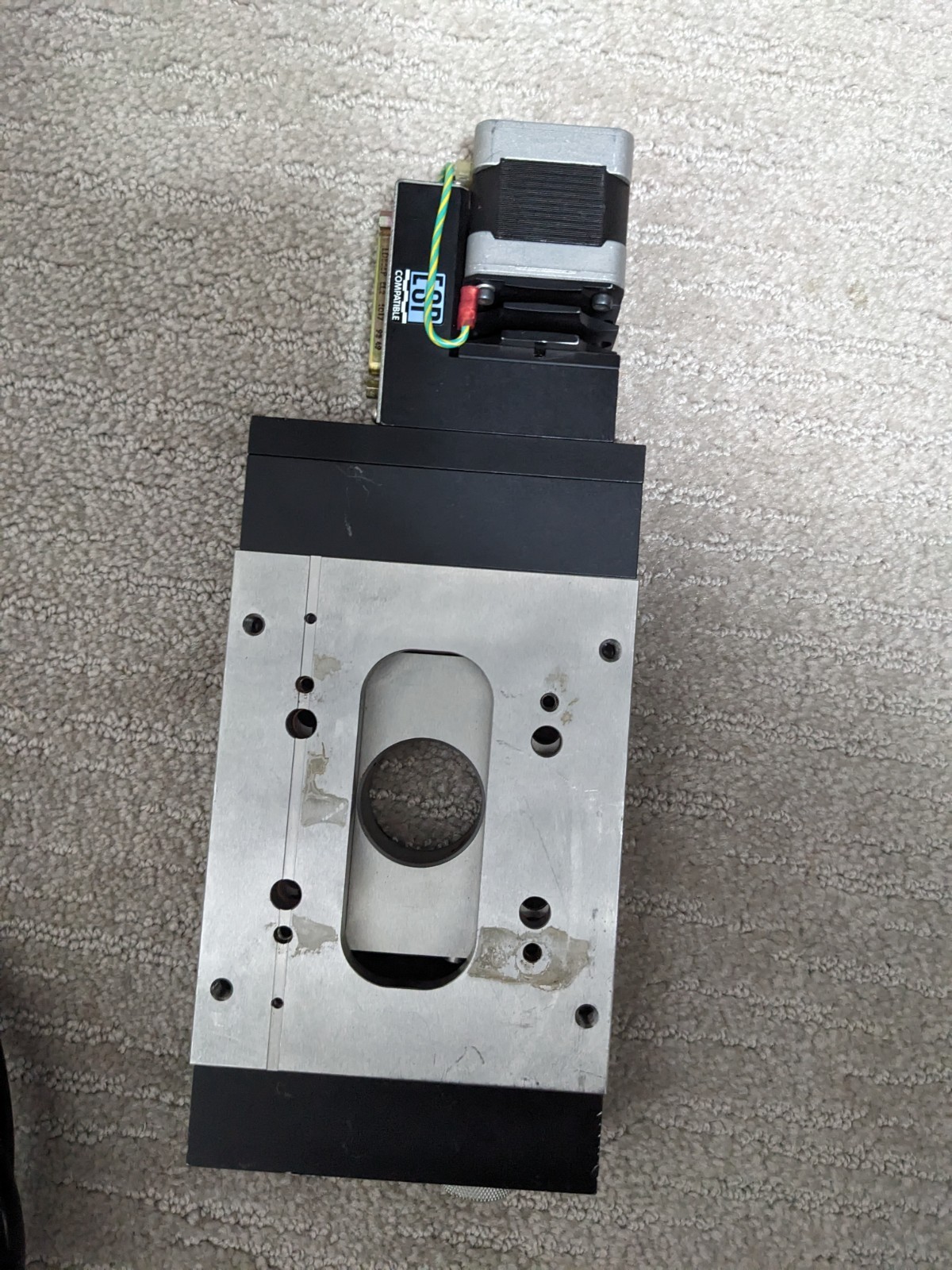

NEWPORT M-UTM50PP1HL 50mm LINEAR TRANSLATION STAGE + UE41PP STEPPER MOTOR

Used Newport motorized linear translation stage with UE41PP stepper motor and Newport 25-pin cable.

This stage has been TESTED and is confirmed to move through its travel. I tested the actual unit using a National Instruments NI-9512 motion card and an NI SMD-7610 stepper motor driver. A video is included showing the actual stage moving.

MODEL / IDENTIFICATION

Newport M-UTM50PP1HL

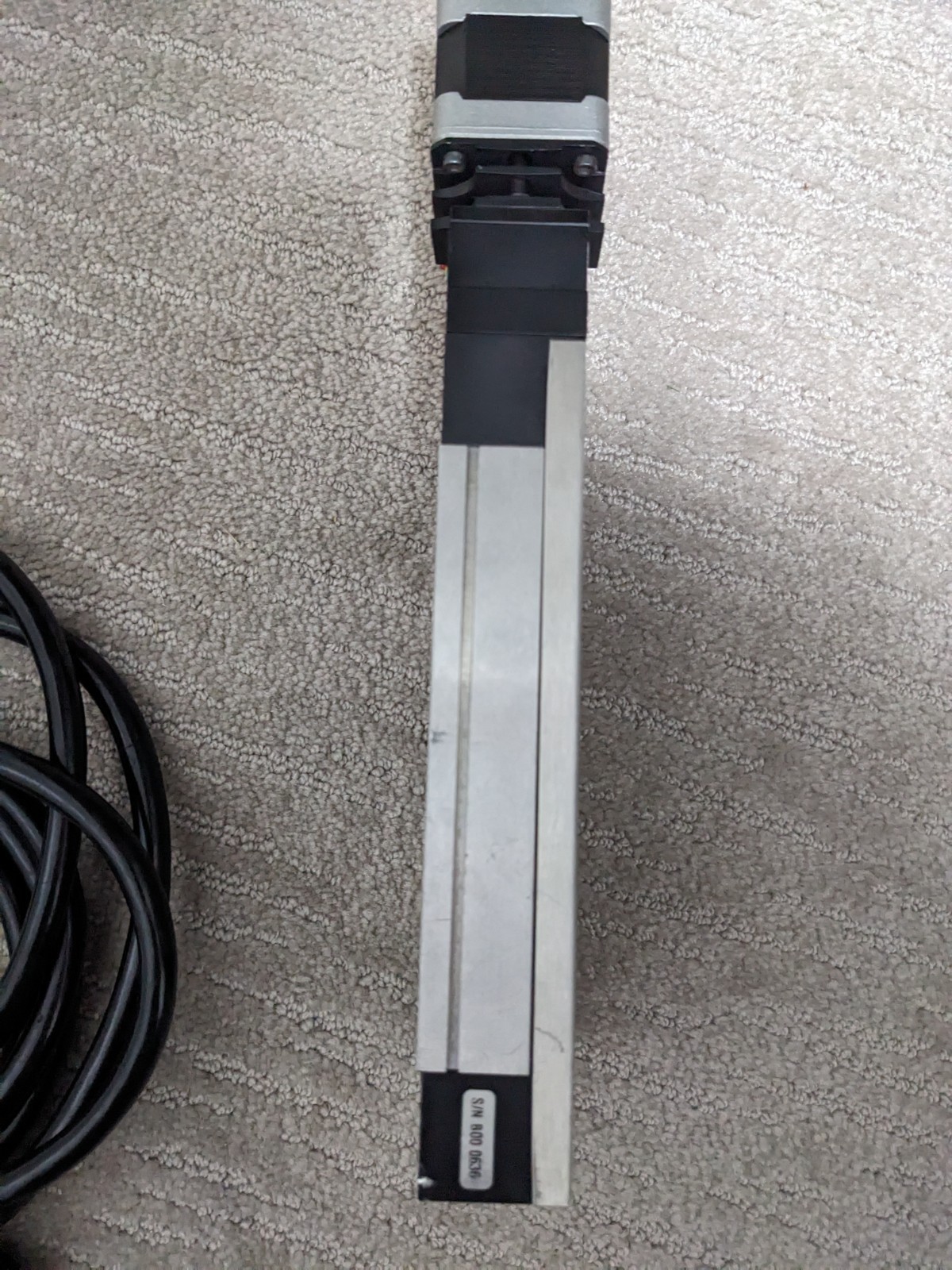

Serial Number: 800 0636
Additional Newport marking: 08SI80083

The exact model identification is based on the stage configuration, dimensions, travel, UE41PP motor, and metric mounting-hole pattern. The model number is not printed on the visible stage label.

STAGE SPECIFICATIONS

Newport M-UTM50PP1HL
Linear translation stage
50 mm (2") nominal travel
UE41PP stepper motor
1 µm resolution
Maximum speed: 20 mm/s
Metric version
M4 threaded mounting holes
Manual adjustment knob on the end opposite the motor
Steel stage construction

The stage has approximately 2" of usable movement when operated with the manual adjustment knob. The mechanical limit switches account for the small difference between the measured total movement and the published 50 mm travel specification.

PHYSICAL DIMENSIONS

Stage body approximately:

7.5" long
4.125" wide
1.25" high

The attached motor adds approximately 3.125" to the overall length.

INCLUDED

Newport M-UTM50PP1HL linear stage
Newport UE41PP stepper motor
Newport 25-pin cable

TESTING

The stage was successfully operated through its travel using:

National Instruments NI-9512 motion card
National Instruments SMD-7610 stepper motor driver

A video showing the actual stage moving is included with the listing.

Testing confirms basic powered operation and movement. I am not representing this unit as recently calibrated, and this testing does not guarantee positioning accuracy, repeatability, or performance under a particular load.

CONDITION

Used industrial automation equipment. The unit shows normal signs of previous use and handling.

The actual item shown in the photos is the item you will receive.

The NI-9512, SMD-7610, and any other equipment used to test the stage are NOT included.

SHIPPING

Actual packed size:
12.5" × 3.5" × 11"

Actual packed weight:
7 lb 11 oz

Shipping will be calculated by eBay and paid by the buyer.

No local pickup.

Please verify compatibility with your application before purchasing.

Brand	Newport
Stroke Length	50mm (2 in)

Newport M-UTM50PP1HL 50mm Linear Stage UE41PP Stepper Tested

Specifications
