Ixia Optixia XM12 Chassis

Optixia XM12

High Performance · Windows 10 · IxOS 8.0 · 102 permanent licensed features

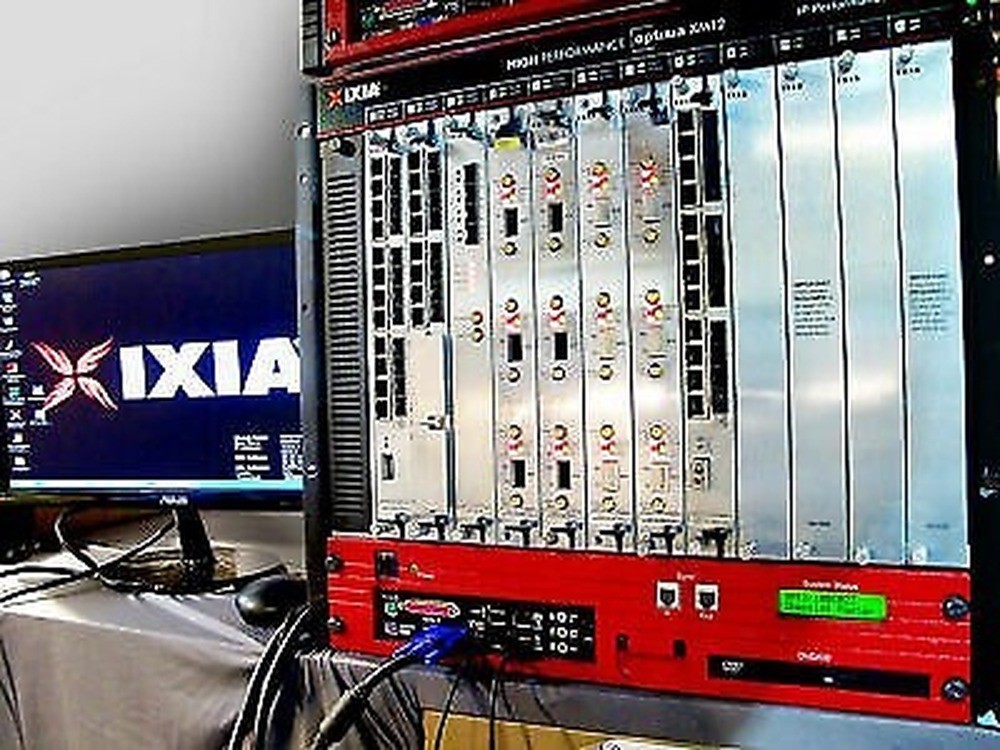

IXIA XM-12 Chassis, Windows 10 +IxOS 8.0 +102 IxNetwork Licensed features

12-slot Optixia XM12 High Performance chassis with a Windows 10 chassis controller, IxOS 8.0 installed, and 102 permanent licensed features (100 IxNetwork, plus Analyzer and IxServer), itemised below.

The operating system has been upgraded to run on an SSD, which dramatically improves performance.

Chassis only; load modules are sold separately.

Condition

Seller refurbished: repaired, refurbished; 90 day warranty; operating system upgraded to run on an SSD, which dramatically improves performance; chassis only, modules sold separately.

Specifications

Parameter	Value
MPN	Optixia XM12
Chassis	Ixia Optixia XM12, 12-slot XM form factor
Load module slots	12, single-wide, hot-swappable
Version	High Performance (upgraded XM12)
Power supplies	Two 2.0 kW
Power input	200-240 VAC, 50/60 Hz, two IEC 60320-C19 inlets (upper cord 15 A, lower cord 11 A); both cords must be connected
Controller operating system	Windows 10, on SSD
IxOS installed	8.0
Licences	102 licensed features, permanent: IxNetwork 100, Analyzer 1, IxServer 1 (listed below)
Management port	RJ-45 10/100/1000 Mbps Ethernet
Front panel I/O	PS/2 keyboard and mouse, HD-DB15 Super VGA, DB25 parallel, IEEE 1394, DB9 serial, 4x USB, Sync In / Sync Out (RJ11), line in / line out / mic
Front panel display	Per-slot Power and In Use LEDs; LCD showing chassis name, IxOS version, IP address, master/subordinate and status
Dimensions	19.25 in W x 17.5 in H x 21 in D (48.9 x 44.45 x 53.34 cm)
Weight, empty	83 lb (37.65 kg)
Operating temperature	41 to 104 F (5 to 40 C); lowered to match any installed load module with a lower rating
Noise	Up to 84 dB(A) at maximum fan speed

Permanent licensed features: 102

#	CATEGORY	FEATURE	DESCRIPTION	EXPIRATION
1	ANALYSER	932-0101	Analyzer Server, Base Software, Chassis Component,	permanent
2	IXNETWORK	895-0100	IXNETWORK, FRAMEWORK	permanent
3	IXNETWORK	922-0006	SW-DCE-MIM, Data Center Encapsulation (DCE) MAC-in-	permanent
4	IXNETWORK	930-2004	IxNetwork, Optional Software, Multicast Emulation	permanent
5	IXNETWORK	930-2005	IxNetwork, Optional Software, BGP4 Emulation	permanent
6	IXNETWORK	930-2006	IxRouter/IxNetwork, BGP4 w/VPN support	permanent
7	IXNETWORK	930-2007	IxRouter/IxNetwork, BGP4 w/IPv6 support	permanent
8	IXNETWORK	930-2008	IxNetwork, Optional Software, OSPFv2 Emulation	permanent
9	IXNETWORK	930-2009	IxNetwork, Optional Software, OSPFv3 Emulation	permanent
10	IXNETWORK	930-2010	xNetwork, Optional Software, IS-IS Emulation	permanent
11	IXNETWORK	930-2011	IxNetwork, Optional Software, IS-IS Emulation with	permanent
12	IXNETWORK	930-2012	IxNetwork, Optional Software, RIPv2 Emulation	permanent
13	IXNETWORK	930-2013	IxNetwork, Optional Software, RIPng IPv6 Emulation	permanent
14	IXNETWORK	930-2014	IxNetwork, Optional Software, MPLS RSVP-TE Emulatio	permanent
15	IXNETWORK	930-2015	IxNetwork, Optional Software, MPLS LDP Emulation in	permanent
16	IXNETWORK	930-2017	IxNetwork, Optional Software, STP/RSTP Emulation	permanent
17	IXNETWORK	930-2018	IxNetwork, Optional Software, MSTP Emulation	permanent
18	IXNETWORK	930-2019	IxNetwork, Optional Software, PVST+/RPVST+ Emulatio	permanent
19	IXNETWORK	930-2020	IxNetwork, Optional Software, EIGRP Emulation	permanent
20	IXNETWORK	930-2021	xNetwork, Optional Software, Application Traffic Su	permanent
21	IXNETWORK	930-2022	IxNetwork, Optional Sftw, RFC 2544,Custom Integrate	permanent
22	IXNETWORK	930-2023	IxNetwork, Optional Software, BFD emulation for use	permanent
23	IXNETWORK	930-2024	IxNetwork, Optional Software, PPPoX and L2TPv2 emul	permanent
24	IXNETWORK	930-2024-01	IxNetwork, Optional Software, PPPoX and L2TPv2 emul	permanent
25	IXNETWORK	930-2025	IxNetwork, Optional Software, 802.1x emulation; Ope	permanent
26	IXNETWORK	930-2026	IxNetwork, Optional Software, Layer 2/3 Cisco NAC e	permanent
27	IXNETWORK	930-2027	IxNetwork, Optional Software, Control Plane Tests f	permanent
28	IXNETWORK	930-2028	IxNetwork, Optional Software, Web Authentication em	permanent
29	IXNETWORK	930-2031	IxNetwork, SW Option, Device Configuration	permanent
30	IXNETWORK	930-2032	IxNetwork, Optional Software, Ethernet CFM IEEE 802	permanent
31	IXNETWORK	930-2033	IxNetwork, Optional Software, PBB-TE Emulation	permanent
32	IXNETWORK	930-2035	IxNetwork, Optional Software, LACP IEEE 802.3ad Pro	permanent
33	IXNETWORK	930-2036	IxNetwork, MPLS P2MP RSVP-TE Emulation	permanent
34	IXNETWORK	930-2037	IxNetwork, Optional Software, ANCP Protocol Emulati	permanent
35	IXNETWORK	930-2038	IxNetwork, Software Option, RADIUS attributes for L	permanent
36	IXNETWORK	930-2039	IxNetwork, Optional Software, Fibre Channel over Et	permanent
37	IXNETWORK	930-2040	IxNetwork, Software Option, Ethernet Link OAM (IEEE	permanent
38	IXNETWORK	930-2041	IxNetwork, Software Option, Two Way Active Measureme	permanent
39	IXNETWORK	930-2042	IxNetwork, Optional Software, Cisco FabricPath Emul	permanent
40	IXNETWORK	930-2043	IxNetwork, Optional Software, DCBX Emulation	permanent
41	IXNETWORK	930-2045	IxNetwork, Optional Software, DHCPv4/v6 Server Emul	permanent
42	IXNETWORK	930-2046	IxNetwork, Optional Software, DHCPv4/v6 Client and	permanent
43	IXNETWORK	930-2047	IxNetwork, Optional Software, Dual-stack PPPoX emul	permanent
44	IXNETWORK	930-2049	IxNetwork, Optional Software, FCF Emulation; REQUIR	permanent
45	IXNETWORK	930-2051	IxNetwork, Optional Software, Protocol emulation ov	permanent
46	IXNETWORK	930-2052	IxNetwork, Optional Software, LDP extension to supp	permanent
47	IXNETWORK	930-2053	IxNetwork, Optional Software, BGP Extension for NG	permanent
48	IXNETWORK	930-2055	IxNetwork, Optional Software, Spanning Tree protoco	permanent
49	IXNETWORK	930-2061	IxNetwork, Optional Software, MPLS-TP emulation; RE	permanent
50	IXNETWORK	930-2062	IxNetwork, Optional Software, MPLS-TP APS Protocol	permanent
51	IXNETWORK	930-2065	IxNetwork, Optional Software, Dual-stack PPPoX over	permanent
52	IXNETWORK	930-2066	IxNetwork, OPT SW, RFC 2889 over	permanent
53	IXNETWORK	930-2067	xNetwork, Optional Software, IGMP/MLD Emulation	permanent
54	IXNETWORK	930-2068	IxNetwork, Optional Software, PIM-SM/SSM Emulation	permanent
55	IXNETWORK	930-2070	IxNetwork, Optional Software, IEEE 1588v2 (PTP) Pro	permanent
56	IXNETWORK	930-2073	IxNetwork, Optional Softwar e, ITU-T SyncE (ESMC) P	permanent
57	IXNETWORK	930-2074	IxNetwork, Optional Software, FC N_Port Emulation;	permanent
58	IXNETWORK	930-2075	IxNetwork, Optional Software, ELMI (MEF 16) Emulati	permanent
59	IXNETWORK	930-2077	IxNetwork, OpenFlow Emulation, Optional Software, R	permanent
60	IXNETWORK	930-2078	IxNetwork, Optional Software, VIC Client Emulation	permanent
61	IXNETWORK	930-2079	IxNetwork, Optional Software, Session Aware Traffic	permanent
62	IXNETWORK	930-2080	IxNetwork, Optional Software, MPLS mLDP Emulation R	permanent
63	IXNETWORK	930-2081	IxNetwork, Optional Software, BGP Extensions for NG	permanent
64	IXNETWORK	930-2084	IxNetwork, Software Option, Shortest Path Bridging	permanent
65	IXNETWORK	930-2085	IxNetwork, Optional Software, LTE EPC eNodeB and MM	permanent
66	IXNETWORK	930-2086	IxNetwork, Optional Software, LTE EPC SGW Simulatio	permanent
67	IXNETWORK	930-2087	IxNetwork, Optional Software, LTE EPC PGW Simulatio	permanent
68	IXNETWORK	930-2089	IxNetwork, Optional Software, LTE EPC SGW Simulatio	permanent
69	IXNETWORK	930-2093	IxNetwork, OPT SW, VEPA (Virtual	permanent
70	IXNETWORK	930-2094	IxNetwork, OPT SW, Licensed per	permanent
71	IXNETWORK	930-2095	IxNetwork optional software, BFD over MPLS LSP	permanent
72	IXNETWORK	930-2096	IxNetwork optional SW. Requires	permanent
73	IXNETWORK	930-2097	IxNetwork, Optional Software, Licensed per Chassis,	permanent
74	IXNETWORK	930-2098	IxNetwork, TRILL (Transparent Interconnect of Lots	permanent
75	IXNETWORK	930-2099	IxNetwork, FC F_Port Emulation; Designed for FCoE/F	permanent
76	IXNETWORK	930-2100	IxNetwork, Automatic Multicast Tunneling (AMT) Emul	permanent
77	IXNETWORK	930-2101	IxNetwork, TRILL OAM emulation; Supports functional	permanent
78	IXNETWORK	930-2102	IxNetwork SW, Licensed per chassis, PBB eVPN and eV	permanent
79	IXNETWORK	930-2103	IxNetwork, VXLAN Emulation, Optional Software	permanent
80	IXNETWORK	930-2104	IxNetwork, OpenFlow Controller Emulation	permanent
81	IXNETWORK	930-2105	IxNetwork, OpenFlow Switch Emulation	permanent
82	IXNETWORK	930-2108	IxNetwork Protocol Emulation over EoGRE	permanent
83	IXNETWORK	930-2109	IxNetwork, Optional Software, OVSDB VTEP Emulation;	permanent
84	IXNETWORK	930-2110	IxNetwork, Services over MPLS Emulation	permanent
85	IXNETWORK	930-2401	IxNetwork, Optional Software, RFC 2889 QuickTest	permanent
86	IXNETWORK	930-2403	IxNetwork, IP Multicast RFC 3918 QuickTests	permanent
87	IXNETWORK	930-2404	IxNetwork, Optional Software UPGRADE from IxAutomat	permanent
88	IXNETWORK	930-2405	IxNetwork, Optional Software; FCoE/FC Performance Q	permanent
89	IXNETWORK	930-2406	IxNetwork, Optional Software UPGRADE from IxAutomat	permanent
90	IXNETWORK	930-2407	IxNetwork, Optional Software, IPTV QuickTests	permanent
91	IXNETWORK	930-2408	IxNetwork, Optional Software, ITU-T Y.1564 QuickTes	permanent
92	IXNETWORK	930-2409	IxNetwork, Optional Software, Asymmetric Data Perfo	permanent
93	IXNETWORK	930-2410	IxNetwork, 1588v2 (PTP) QuickTest	permanent
94	IXNETWORK	930-2411	IxNetwork, IxCloudPerf QuickTest	permanent
95	IXNETWORK	930-2412	IxNetwork, OpenFlow QuickTest	permanent
96	IXNETWORK	930-2600	IxNetwork, Network Impairment Software for ImpairNe	permanent
97	IXNETWORK	930-2601	IxNetwork, Extended Delay for ImpairNet	permanent
98	IXNETWORK	930-2602	IxNetwork, Packet Modification for ImpairNet	permanent
99	IXNETWORK	930-2603	IxNetwork, Optional Software, Accumulate and Burst	permanent
100	IXNETWORK	930-3460	IxNetwork AppLib Slot Subscription	permanent
101	IXNETWORK	930-3462	IxNetwork AppLibrary Slot Feature	permanent
102	IXSERVER	922-0001	FRAMEWORK (IxServer), IXOS SOFTWARE, NODE-LOCKED, S	permanent

Ixia client software

The chassis carries the server software only; IxServer and IxExplorer are the desktop applications on the chassis. The licensed features are used through Ixia client applications (IxNetwork, HLTAPI and others) running on a separate PC, or on an application server in a multi-user setup. One client session can use the licensed features of several chassis at once.

Client applications are downloaded from Ixia with a customer login and are typically free. We can supply a selection of client installers at no charge on request, but that selection is incomplete and is not part of this listing. This listing guarantees the server software and licences itemised above.

Included

Optixia XM12 High Performance chassis with Windows 10 controller on SSD, IxOS 8.0 installed, and the 102 permanent licences listed above.

Not included:
Load modules shown in the photo (sold separately)
Monitor, keyboard and mouse shown in the photo
Ixia client applications
Any accessory not shown in the photos and not listed as included

Testing: what we do, and to what standard

Ixia load modules are tested in our own lab, in an Ixia chassis, with a version-matched IxOS. Every port runs traffic at full line rate with 64-byte frames, the highest frame rate and the hardest case, on all ports at once. Error counters are zeroed at the start, monitoring is read-only, and the traffic runs undisturbed for a window long enough to prove the bit-error limit below statistically, not for a fixed time.

Ixia and Keysight publish no acceptance criteria for load modules, so we apply our own written standard, ZC-AC rev 2. Each criterion is benchmarked to IEEE 802.3 or RFC 1242/2544 and set tighter, so that a module we pass adds no measurable error, loss or rate deviation to the data its user collects. Where the industry sets no number, nothing is tolerated.

Check	Industry reference	Our acceptance limit
Boot	IxServer power-on record (no industry limit)	Zero FAIL records; the card reaches Board Ready
Link	IEEE 802.3 link status	Up on every port in every sample; zero link drops for the whole window
Line rate	IEEE 802.3 PHY rate	Nominal speed in every sample; no downshift or renegotiation
Throughput	IEEE 802.3 ±100 ppm clock tolerance; RFC 2544 §26.1	Within ±100 ppm of the theoretical frame rate at 64-byte frames, all ports at once
Frame loss	RFC 1242 §3.17 / RFC 2544: throughput = highest rate with zero loss	Zero loss at full line rate on every port simultaneously
Bit errors	IEEE 802.3 BER objective: 10^-12 (1000BASE-X, 10G to 100G), 10^-10 (1000BASE-T)	Zero errors over enough bits to prove a BER at least 5× better than the objective at 95% confidence (beyond the 4:1 test-uncertainty ratio of ANSI/NCSL Z540.3)
Temperature	Commercial silicon rated to 85 °C	Every sensor below 75 °C for the whole window; drift within ±5 °C
Stability	IxServer event log (no industry limit)	Zero card hardware events during the window

Our test reports state, for every section, the criterion, the value measured and the result, and print every error counter per port for the whole window. Where the Ixia software does not expose a reading (fan speed, supply voltage, optical DDM), the report says so; nothing is inferred. A unit that fails is diagnosed, not written off. Testing to this standard, with a signed written report, is available as a service.

Items outside this test capability are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description.

Troubleshooting, repairs, and test plans

We are here to help after the sale.

Troubleshooting and failure analysis. When a chassis or load module misbehaves (a card that will not enumerate, drops link, resets, or fails at start-up), we diagnose it from the evidence, down to the board:

Step	What we do
1. Evidence first	We pull the IxServer logs from the chassis, including the boot record of the failing card. Every finding in our report traces to a log line or a numbered bench run.
2. Boot analysis	The failing card's start-up is compared step by step against a healthy initialization recorded on the same chassis model and IxOS with a known-good card of the same model: insertion, EEPROM identity, slot power, FPGA loads, port card enumeration, fabric training. The first step that goes missing localizes the fault.
3. Varied conditions	Cold boot against hot insert, repeated runs, and a check that the card reports the same identity every time; an identity that changes between runs is itself evidence of a damaged management path.
4. Hardware-level verification	We swap cards. With several hundred load modules and dozens of chassis in stock, a suspect slot, carrier board, port daughter card or chassis is confirmed by substituting a known-good part and re-running, one change per numbered run, and by retesting on an isolated chassis.
5. Root cause and report	Board-level attribution on multi-board assemblies, ranked root-cause hypotheses, and a written engineering failure report with an evidence index, the disposition and the next steps.

Repairs. We repair Ixia chassis and load modules in our lab, verify the repair against the same acceptance standard used for testing, and document the evidence, the cause, and what was done.

Resource library. We maintain a 600 GB Ixia resource library: platform reference guides and user manuals across IxOS releases, product compatibility matrices, and IxOS, IxNetwork and IxLoad software builds across versions. It lets us answer compatibility, configuration and version questions from the manufacturer's own documentation.

Test plans. We can build test plans to satisfy your engineering needs. We take what you test today (a manual procedure, a legacy Spirent or Xena configuration, or nothing yet), map it onto IxNetwork and IxLoad, work out the licences, modules and ports it needs, and quote each step before any work starts.

Contact us through eBay messages to discuss any of these.

Shipping

Orders may take up to 3 business days to ship from payment; weekends are not counted. Palletized items may take up to 5 business days. If you need faster service, contact us before ordering so we can adjust priorities. We reserve the right to change the selected shipping method to an equivalent or better service that fits the item.

We ship worldwide. USPS may not be an acceptable choice for international shipping due to size, weight, and export documentation restrictions; you may be asked to select FedEx, UPS, or DHL at a higher price. Confirm your shipping choice with us before ordering if in doubt.

Export compliance. Our products are subject to the U.S. Export Administration Regulations (EAR), overseen by the Bureau of Industry and Security (BIS) and the U.S. Census Bureau. We do not ship to Country Group E. Determining the Export Control Classification Number (ECCN) can take up to 30 days; where an export license is required, licensing can take a further 30-90 days. For international orders we require a written statement of the ultimate end user, the intended end use of each product, and the buyer's agreement to comply with the EAR. You will receive an email with the documentation; the order cannot be processed until it is complete.

Returns, warranty, and money-back guarantee

This listing carries a 60 day money back guarantee: return your purchase for any reason within 60 days for a full refund or exchange. Returned items must be in the condition received and in the original packaging.

This unit also carries a 90 day warranty: within 90 days, a warranty claim is returned at our expense for a refund, repair, or replacement. Longer warranty terms can be arranged at the time of purchase.

All items are guaranteed to be as described. Any item not as described can be returned at our expense for a full refund, regardless of any as-is marking.

If you are dissatisfied for any reason, contact us first and give us a chance to work things out; if we cannot fix it, you receive 100% of your purchase price back.

Data privacy

We do not keep or share your information anywhere. Your information resides only on eBay and is available to us only for a limited time while we interact with you on an inquiry, order, or return, per eBay usage policies.

Zombie Components LLC · 13177 Foothill Boulevard, Sylmar, CA 91342, United States · TIN 934147673 · www.zombiecomponents.com

Seller contact details above are published under eBay's Contact information sharing policy, which permits links and contact information that facilitate a transaction on eBay in Business and Industrial categories, and as information required by law under the INFORM Consumers Act, 15 U.S.C. 45f.

IXIA XM-12 Chassis, Windows 10 +IxOS 8.0 +102 IxNetwork Licensed features

Specifications

Returns Accepted
