Canberra 8701 ADC 8K Wilkinson Analog-to-Digital Converter (NIM)

Condition:

This unit is used but remains clean with no visible signs of excessive wear or damage. All switches are intact and functional. It was working before storage but has not been tested recently.

Here's what we know about it:

ADC type: 100 MHz Wilkinson
Channel resolution: 8192 channels
Digital offset adjustment: In 128 channel steps
Linearity performance: Differential <±0.7%, Integral <±0.025%
Functionality:
- Pulse Height Analysis with automatic peak detection
- Pulse pileup rejection and live time correction
- Compatible with Loss Free Counting Systems
Input/output specifications:
- ADC IN: Unipolar/bipolar pulses (0 to +10 V, +12 V max)

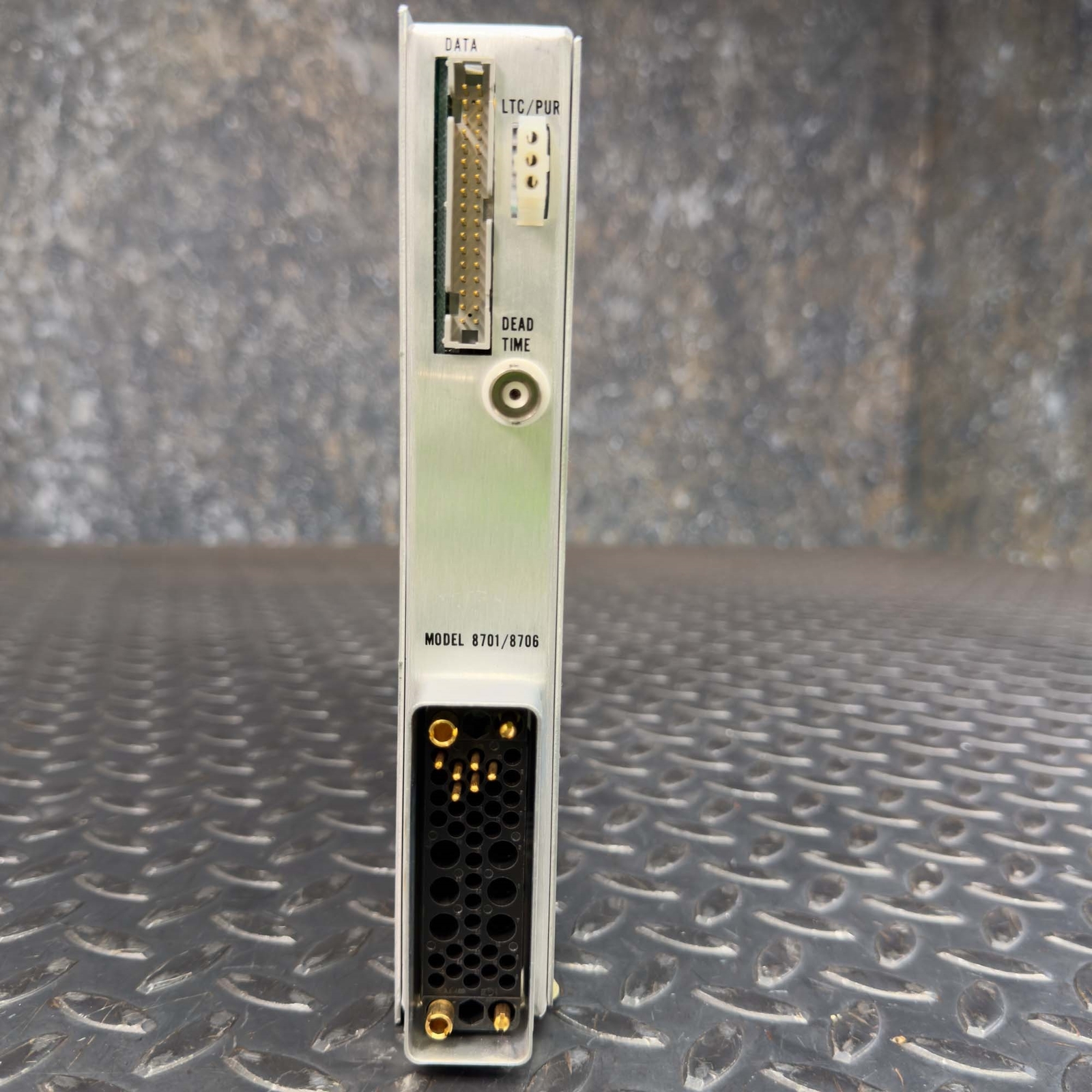

- DATA OUT: 13 TTL-compatible binary output lines
Control features:
- Concentric Gain/Range
- Upper/Lower Level Discriminators
- Adjustable ADC Zero
Integration: Works with CANBERRA MCAs, multiplexers, and Ethernet-based acquisition systems.

This module is highly suitable for advanced nuclear spectroscopy applications, offering precise measurement and control.

"The Model 87 I 3, Fixed Dead Time analog-to-digital converter is designed for high resolution nuclear spectroscopy. Its fast conversion time allows it to process a full scale input pulse in less than 6 µs. Fast throughput combined with 16K Gain Range make the 8713 the best choice when speed and resolution are both critical."

MPN: 8701

Brand	Canberra
MPN	8701

NIM BIN Module Canberra 8701 ADC Analog to Digital Converter
