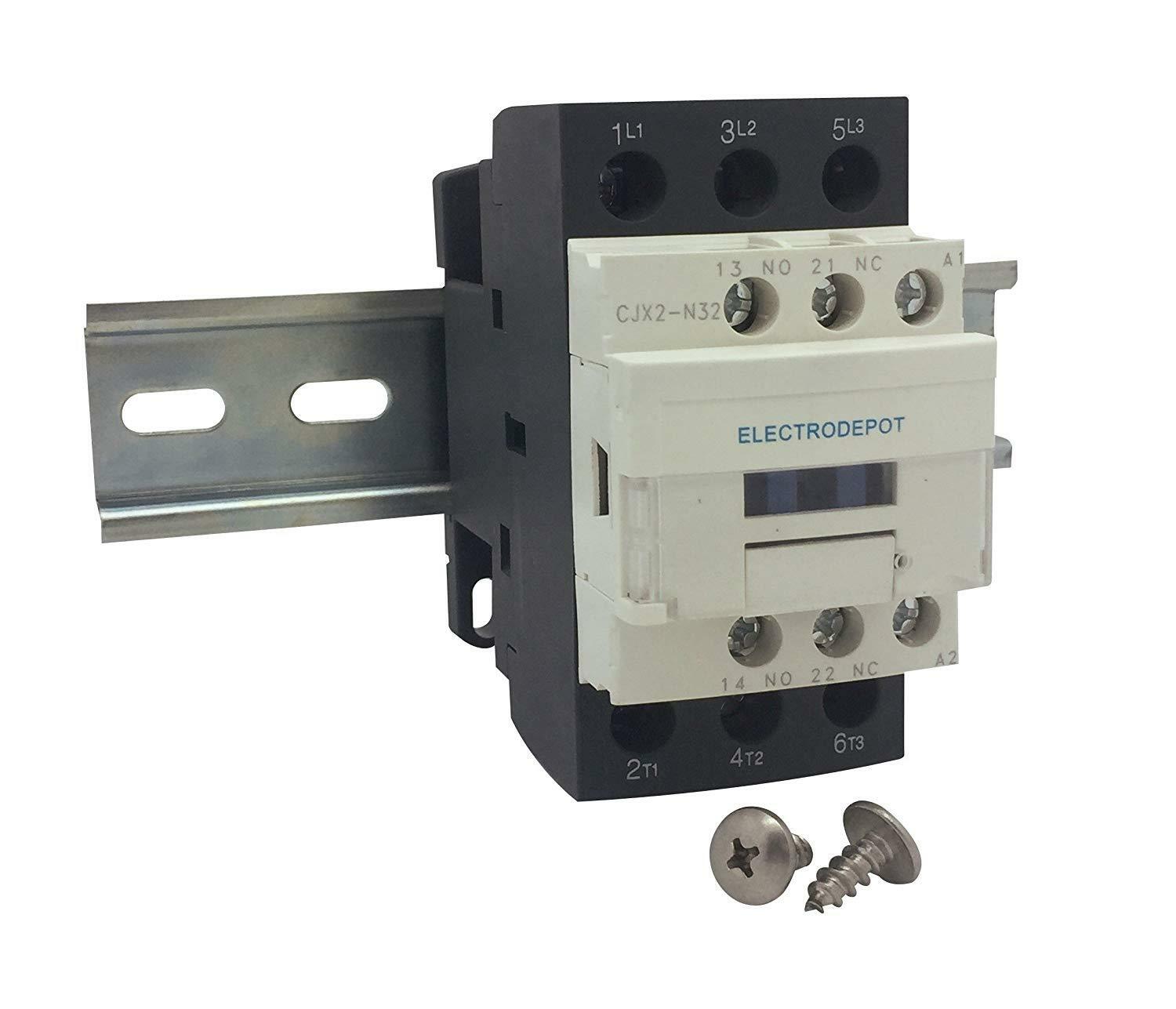

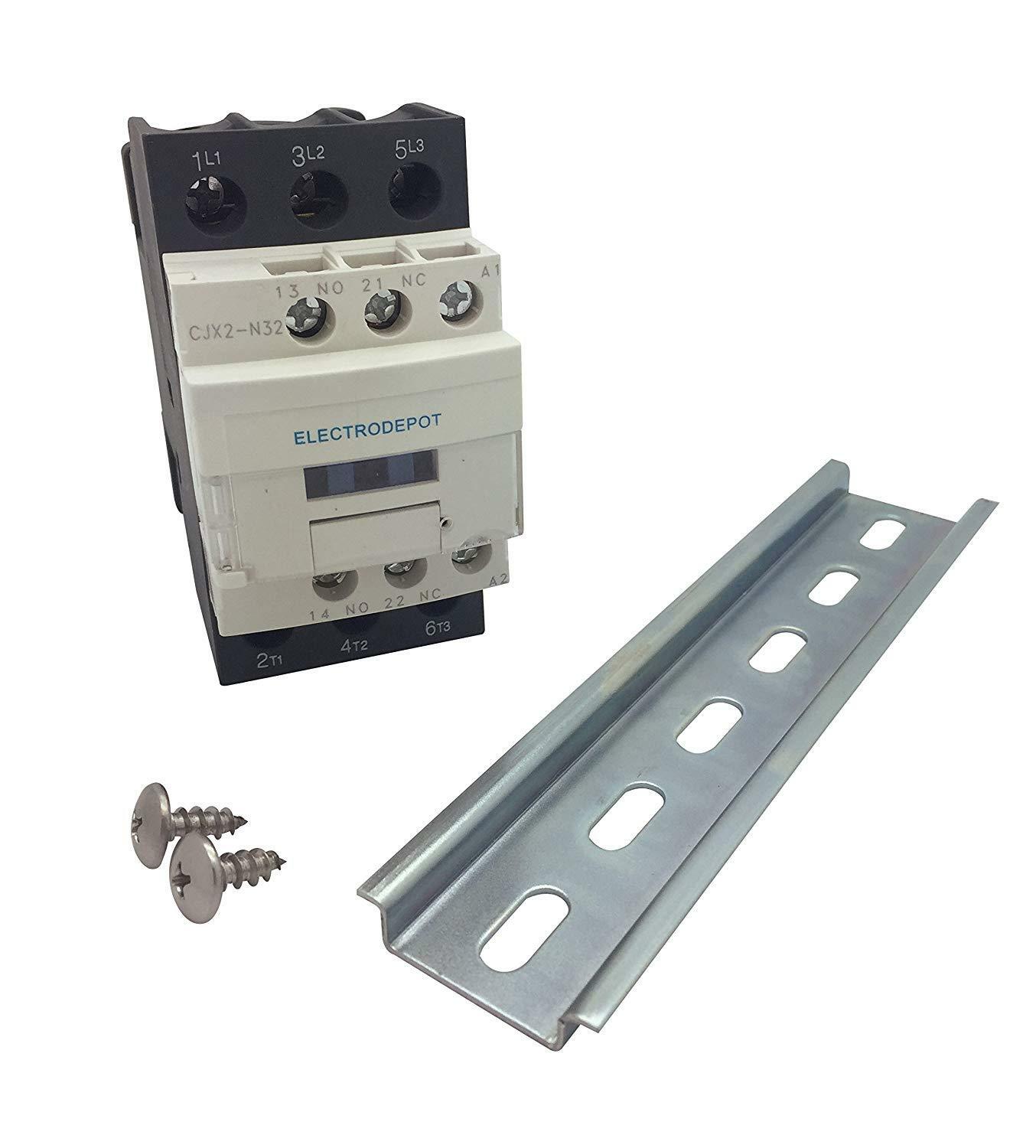

BUNDLE CONTENT: The bundle includes one (1) 30Amp 3 Pole Normally Open (NO) Ballast Contactors for home and industrial uses, with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, and one (1) compatible Slotted Steel Zinc Plated DIN Rail with two (2) drive stainless steel truss head screws (#10, 1/2") for immediate installation

APPLICATIONS - Lighting, motor or switching. AC-1 for resistance furnaces, incandescent lamps or electric heaters; and AC-3 for air conditioners, compressors or fans

FULL AMP LOAD - Inductive/Motor Load: 32Amp. Resistive/Incandescent Load: 50Amp. Power Lug Terminal Capacity AWG # 4

COIL VOLTAGE AND LOAD - Voltage: AC 110V/120V, 50/60Hz. Load: 70VA Inrush and 7.5VA Sealed

DIMENSIONS (approx.) - 56.4 x 88.9 x 88.9 mm / 2.22'' x 3.50'' x 3.50'' (Width x Height x Depth)

Product description
About 30A Contactor

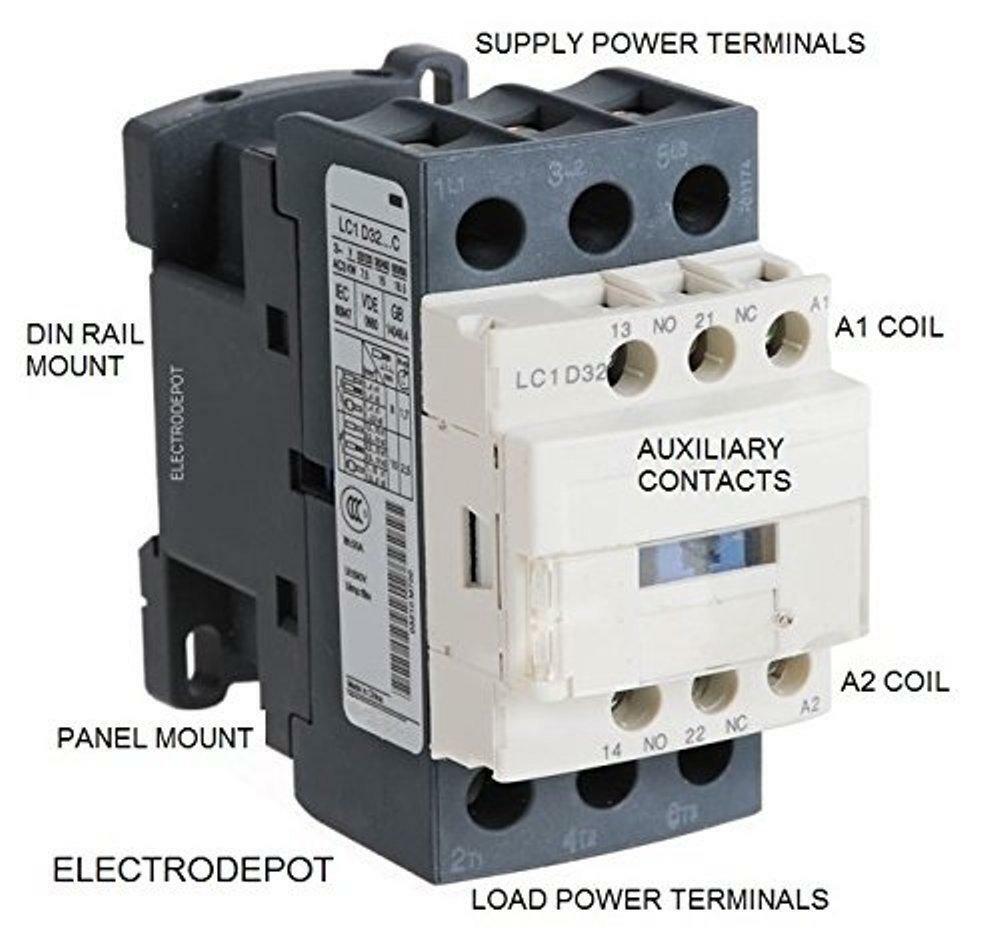

30 Amp 3 Pole Normally Open IEC 660V Contactors for home or industrial uses. Perfectly compatible with DIN rail mounting. It features 1 Normally Open and 1 Normally Closed auxiliary contacts. With applications in lighting, motor and switching.

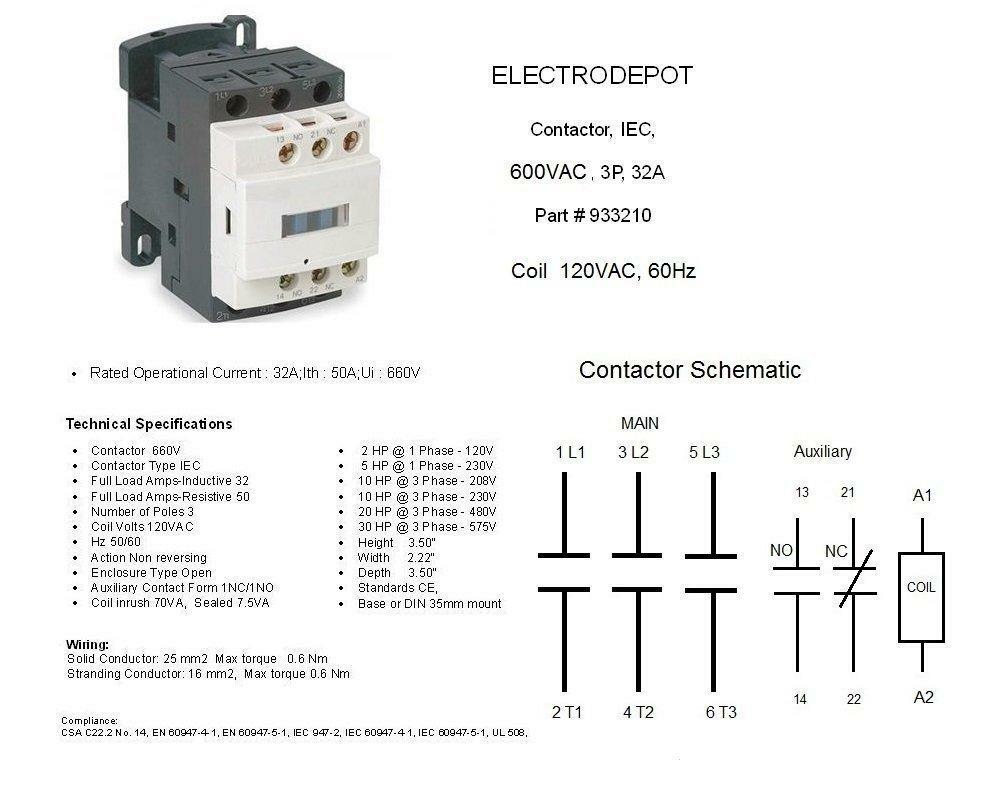

Technical Specifications

Contactor 660V

Contactor Type IEC

Full Load Amps-Inductive 32

Full Load Amps-Resistive 50

Number of Poles 3

Coil Volts: 120VAC

Hz 50/60

Action: Non-reversing

Enclosure Type Open

Auxiliary Contact Form 1NC/1NO

Coil inrush 70VA, Sealed 7.5VA

2 HP @ 1 Phase - 120V

5 HP @ 1 Phase - 230V

10 HP @ 3 Phase - 208V

10 HP @ 3 Phase - 230V

20 HP @ 3 Phase - 480V

30 HP @ 3 Phase - 575V

Standards CE

Base or DIN 35mm mount

Wiring

Solid Conductor: 25 mm2 Max torque 0.6 Nm

Stranding Conductor: 16 mm2, Max torque 0.6 Nm

Compliance

CSA C22.2 No. 14, EN 60947-4-1, EN 60947-5-1, IEC 947-2, IEC 60947-4-1, IEC 60947-5-1, UL 508

About DIN Rail
DIN Rails are the standard mounting support for any electromechanical component, device or equipment designed using the DIN specifications adopted by European (EN) and international (IEC) standards. The rail features conveniently placed slots through out its length making it easy to attach to a panel, wall or equipment. Used for support of mini circuit breakers, contactors, auxiliary relays, terminal blocks, low voltage apparatuses, etc. Standard width of 34.925mm (1.375”) length of 152.40mm (6”) and thickness of 5mm (0.2”).

Brand	Undisclosed
UPC	705595753903

ELECTRODEPOT Contactor 30A 3 Pole Normally Open IEC 660V, Auxiliary 1NO/1NC - 11
