Product Description

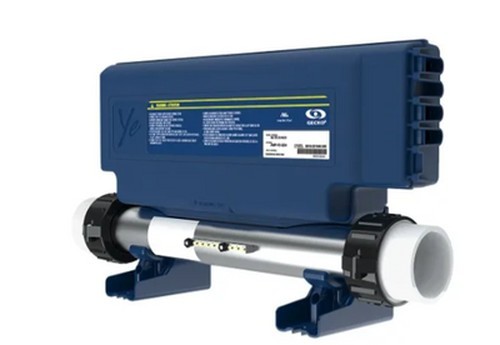

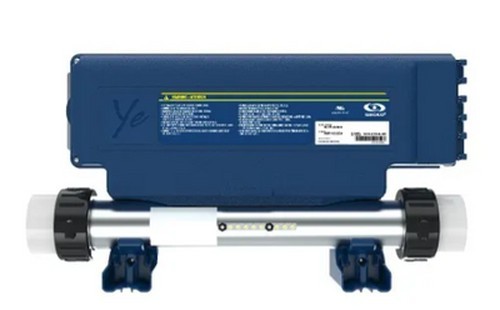

The Gecko 0610-300016 IN.YE-5 Version 3 Bundled Control System is a complete spa control pack featuring an integrated 4.0 kW heater, K800 topside keypad, and the Gecko in.touch2 Wi-Fi module for convenient remote monitoring and control. The system supports a heater, topside control, circulation pump, and up to five configurable relays, making it suitable for a wide range of spa and hot tub applications. With a preloaded configuration and selectable 115V or 230V operation, installation and setup are simplified. Solid-state water flow detection eliminates the need for pressure switch adjustments while the IPX5-rated enclosure provides dependable protection in demanding environments.

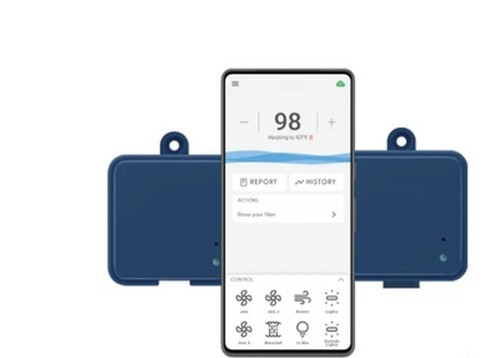

Includes Gecko in.touch2 Wi-Fi module for remote monitoring and control
Includes K800 color touchscreen topside control
Integrated 4.0 kW heater with selectable 1.0 kW operation at 115V
Supports topside control, heater, circulation pump, and five configurable relays
Solid-state water flow detection eliminates pressure switch adjustments
Preloaded configuration for simplified installation
Selectable 115V or 230V power input
IPX5-rated waterproof enclosure

Product Highlights

The Gecko IN.YE-5 Version 3 control system delivers reliable spa management with an integrated heater, K800 touchscreen keypad, and the included Gecko in.touch2 Wi-Fi module, allowing users to monitor and control compatible spa functions remotely using a smartphone or tablet.

Product Information

Standard Information

Brand: Gecko
Manufacturer Part Number: 0610-300016
Model: IN.YE-5 Version 3
Product Type: Spa Control System Bundle

Technical Specifications

Supply Voltage: 115/230 VAC
Frequency: 60 Hz
Heater Output: 1.0 kW (115V), 4.0 kW (230V)
Topside Control Included: K800 Touchscreen Keypad
Wi-Fi Module Included: Gecko in.touch2
Remote Connectivity: Smartphone and Tablet Compatible
Circulation Pump Ready: Yes
Auxiliary Topside Ready: Yes
Configurable Relays: 5
Water Flow Detection: Solid-State
Enclosure Rating: IPX5
Application: Spa and Hot Tub Control System

Brand	GECKO
MPN	0610-300016

GECKO 0610-300016 IN.YE-5 Control System 4.0kW Heater K800 Wi-Fi 115/230V
