Product Description

The PHOENIX CONTACT 1415544 SAC-4P-M 8MS/5,0-PVC is a sensor/actuator cable with a 4-position design, featuring a straight M8 plug and a free cable end. This cable has a length of 5 meters and is constructed from black PVC material. It is designed for standard applications in industrial environments.

4-position sensor/actuator cable
Plug straight M8, coding: A, on free cable end
Cable length: 5 m

Product Highlights

This sensor/actuator cable is 100% electrically tested, ensuring safe and easy installation. Suitable for various industrial applications.

Product Information

Standard Information

Brand: PHOENIX CONTACT
Manufacturer Part Number: 1415544
Country of Origin: DE

Technical Specifications

Product type: Sensor/actuator cable
Application: Standard
Number of positions: 4
No. of cable outlets: 1
Shielded: no
Coding: A
Overvoltage category: II
Degree of pollution: 3
Flammability rating according to UL 94: HB
Material of grip body: TPU, hardly inflammable, self-extinguishing
Contact material: CuSn
Contact surface material: Ni/Au
Contact carrier material: TPU GF
Material for screw connection: Zinc die-cast, nickel-plated
Insulation resistance: 100 MΩ
Nominal voltage U N: 48 V AC 60 V DC
Nominal Voltage: 48V AC / 60V DC
Nominal current I N: 4 A
Output Current: 4A
Insertion/withdrawal cycles: 100
Status display: no
Status display present: no
Connection 1 Type: Plug straight M8
Connection 1 Number of positions: 4
Connection 1 Coding type: A
Connection 2 Type: free cable end
Cable length: 5 m
Length: 16.40' (5.00m)
Cable type: PVC black [PVC]
Cable weight: 33 kg/km
UL AWM Style: 2464 / 1729 (80°C/300 V)
Cable Shielded: no
Conductor structure signal line: 14x 0.15 mm
AWG signal line: 24
Conductor cross-section: 4x 0.25 mm² (Signal line)
Wire diameter incl. insulation: 1.17 mm ±0.05 mm
External cable diameter: 4.40 mm ±0.15 mm
Outer sheath, material: PVC
External sheath, color: black RAL 9005
Conductor material: Bare Cu litz wires
Material wire insulation: PVC
Single wire, color: brown, white, blue, black
Thickness, insulation: 0.23 mm (Core insulation) 0.76 mm (Outer cable sheath)
Overall twist: 4 wires, twisted
Max. conductor resistance: max. 79 Ω/km (at 20 °C)
Nominal voltage, cable: ≤ 300 V
Test voltage: 3000 V
Minimum bending radius, fixed installation: 5 x D
Smallest bending radius, fixed installation: 22 mm
Flame resistance: As per UL-Style 2464
Resistance to oil: EN 60811-2-1
Ambient temperature (operation): -25 °C ... 80 °C (cable, fixed installation) -10 °C ... 80 °C (Cable, flexible installation)
Degree of protection: IP65 IP67 IP68
Ingress Protection: IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof
Ambient temperature (operation) (male connector/female connector): -25 °C ... 90 °C (Plug / socket)
Standard designation: M8 connector
Standards/specifications: IEC 61076-2-104
Cable Number of Positions: 4-Position
Cable Coding: A - Standard
Cable Knurl Material: Nickel-Plated
Cable Head 1 Design: Plug Straight M8
Cable Head 2 Design: Free Cable End
Manufacturer: Phoenix Contact
Component: Sensor-Actuator Cable
Cable Material: Polyvinyl Chloride (PVC)
Assembly Type: Single End Cordset
Connector Type: Male
Angle: Straight
Poles: 4P
Wire-Pin Code: A-Std. Color Code
Wire-Pin Colors: Brown, White, Blue, Black
Connector Material: TPU Body, Nickel Plated Die Cast Zinc
Cable Type: Black PVC, 4x24 AWG
Connector Mating Size: M8x1
Application/Rating - IEC: IP 65/IP 67/IP 68
UNSPSC Code: 26120000
Alternate Mfr Part Number: SAC-4P-M 8MS/5 0-PVC
Brand: PHOENIX CONTACT
Connector Angle Cable end 1: Straight
Number of Conductors: 4
Series: M8 Cordset Series
Usage: Industrial Environments
RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)

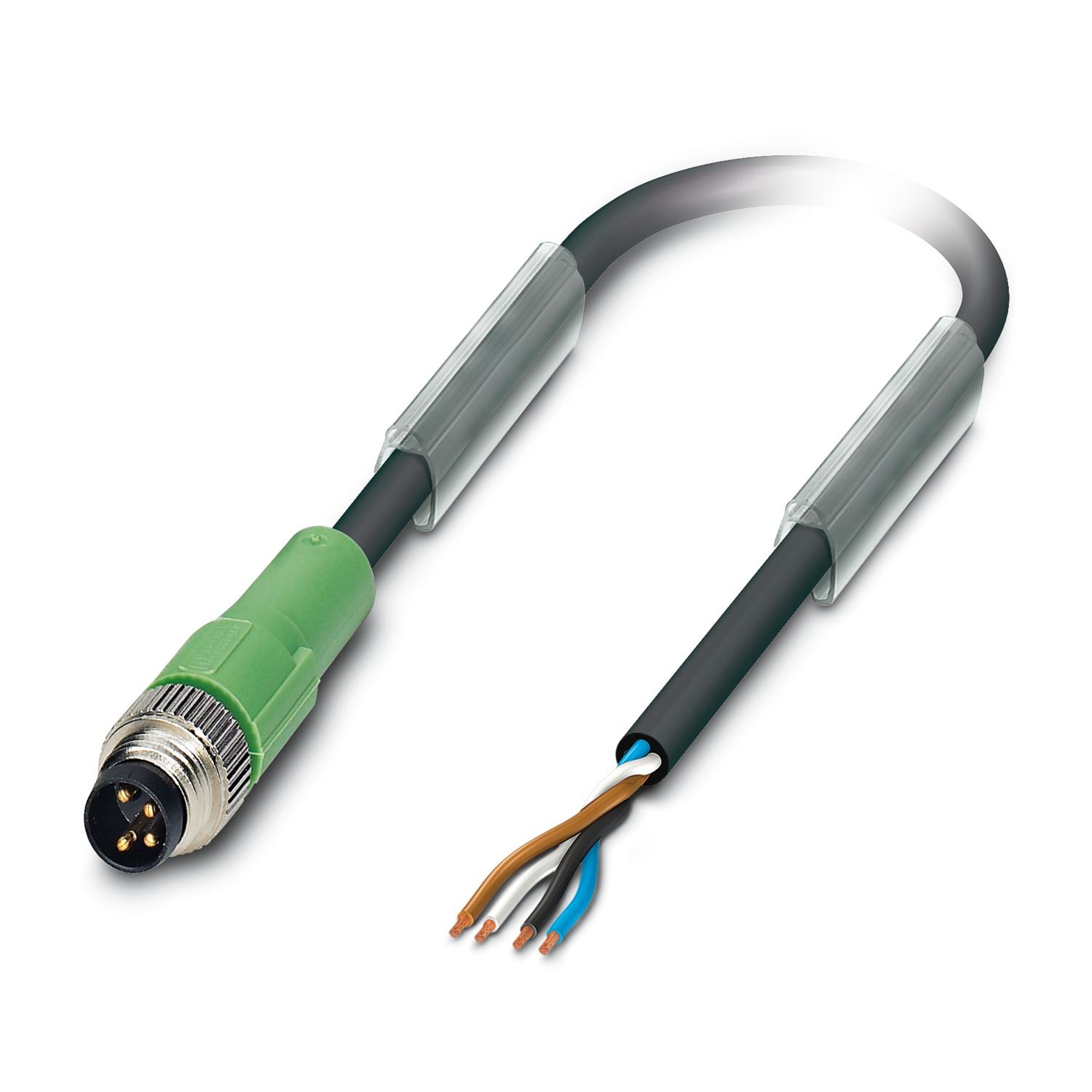

PHOENIX CONTACT 1415544 SAC-4P-M 8MS 5m PVC Sensor Cable
