Product description

1/4" NPT Compressed Air Filter Regulator Combo, Air Filter Pressure Regulator Gauge Kit Water Separator w/Pressure Gauge, 150PSI

Regulator With 150 psi Gauge,Oil & Water Separator,Semi-Auto Drain
Air Inlet and Outlet: 1/4" NPT
Max Pressure : 145 psi; Operate Pressure Range: 0-145 psi
5 Micron Element Standard
Temperature Range: 40-140℉

3/8" NPT Compressed Air Filter Regulator Combo, Air Filter Pressure Regulator Gauge Kit Water Separator w/Pressure Gauge, 150PSI

Regulator With 150 psi Gauge,Oil & Water Separator,Semi-Auto Drain
Air Inlet and Outlet: 3/8" NPT
Max Pressure : 145 psi; Operate Pressure Range: 0-145 psi
5 Micron Element Standard
Temperature Range: 40-140℉

1/2" NPT Compressed Air Filter Regulator Combo, Air Filter Pressure Regulator Gauge Kit Water Separator w/Pressure Gauge, 150PSI

Regulator With 150 psi Gauge,Oil & Water Separator,Semi-Auto Drain
Air Inlet and Outlet: 1/2" NPT
Max Pressure : 145 psi; Operate Pressure Range: 0-145 psi
5 Micron Element Standard
Temperature Range: 40-140℉

SFR200 1/4"NPT

SFR300 3/8"NPT

SFR400 1/2"NPT

Installation and Operating:

Preparation

The assembly of all calibration shall meet the maximum flow requirement.

Please clean the port and fitting before installation, it will effectively avoid bring dust to the air path.

Pay attention to direction of air flow and arrow pointing on product body if correct, minding port and thread size if match.

Pressure Adjustment

Pull up the knob of pressure gauge, rotate:

If you do clockwise rotation, pressure will rise steadily.Pressure will down when you rotate counterclockwise.

Stop turning after reaching the required index and lock down the knob,forget this step you may face leakage problem.

Dial Reading

Make sure that the pressure gauge is tightly installed on the main body, and pay attention to whether the reading rises and falls smoothly while adjusting pressure.

Drainage

Drainage column will automatic excrete if there is no pressure,and it will close during the air flow passing. When the water level is beyond upper limit, drainage is necessary, otherwise that will cause poor dehumidification.

Please be careful to use a wrench to tighten the fitting.

The first installation may have an excretion reaction(Not leakage, for the first time the internal pressure is different from the outside, it is necessary to discharge the excess air first). In this case, please wait for a while.

TECHNOLOGY CHANEGS LIFE & TECHNOLOGY CHANGED BY

- Support Your Pneumatic World

At Pneumatic, we believe clean, reliable air power is the foundation of efficient industrial performance. With years of experience and a dedicated engineering team, we specialize in designing and manufacturing air treatment solutions—Air Filters, Regulators, Lubricators, and integrated FRL systems—that help protect your equipment and optimize output. Trusted by professionals across industries, fvproducts are built for precision, durability, and easy integration. Whether you're outfitting a single workstation or an entire production line, we offer tailored solutions to meet your exact air management needs. Empower your pneumatic system with —Engineered for Clean Air. Built for Performance.

Regulator With 150 psi Gauge, Water Separator,Semi-Auto Drain

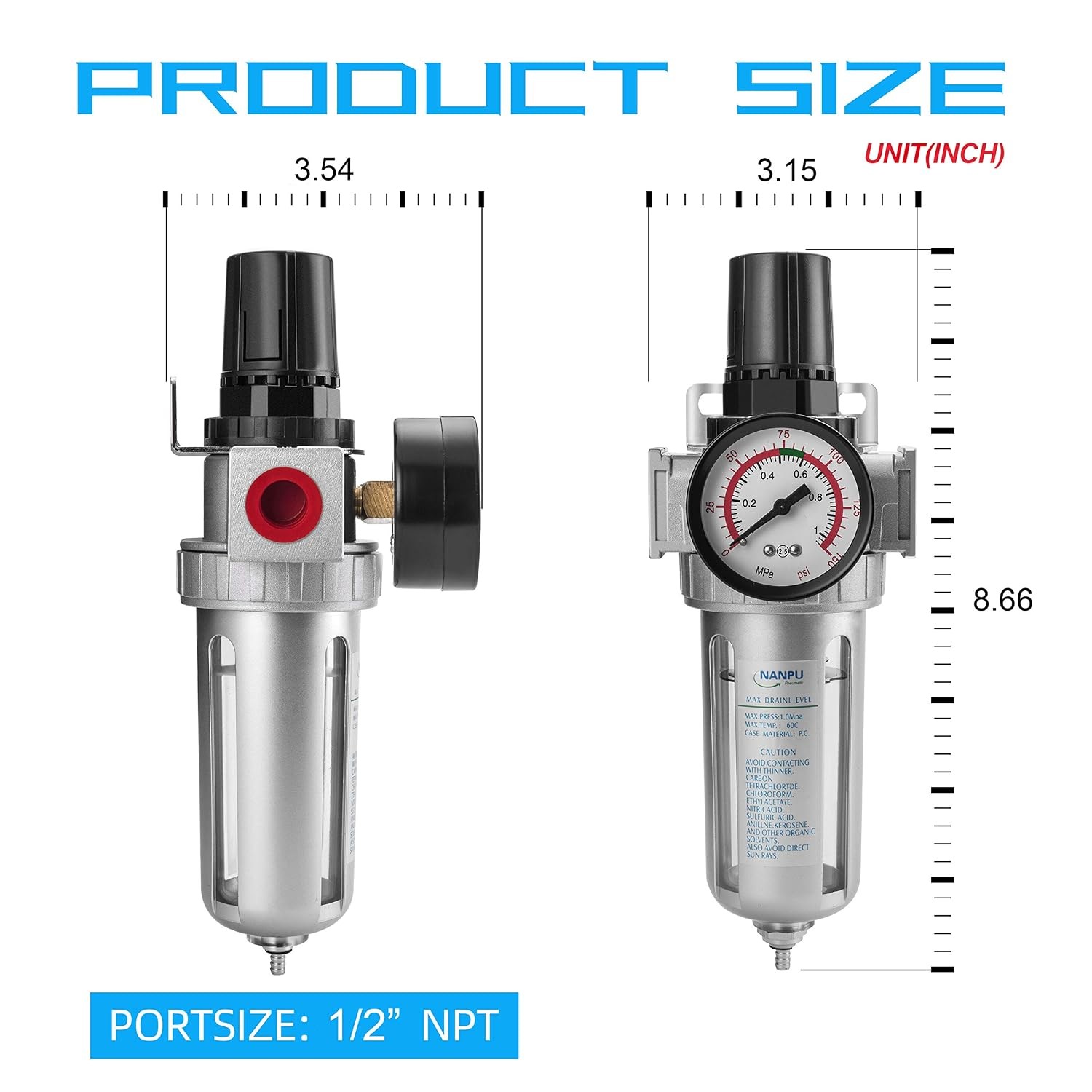

Air Inlet and Outlet: 1/2" NPT
Max Pressure : 145 psi; Operate Pressure Range: 0-125 psi；Temperature Range: 40-140℉
5 Micron Brass Filter Element, Excellent Filtering Performance, Much Longer Life and Reuse Feasibility

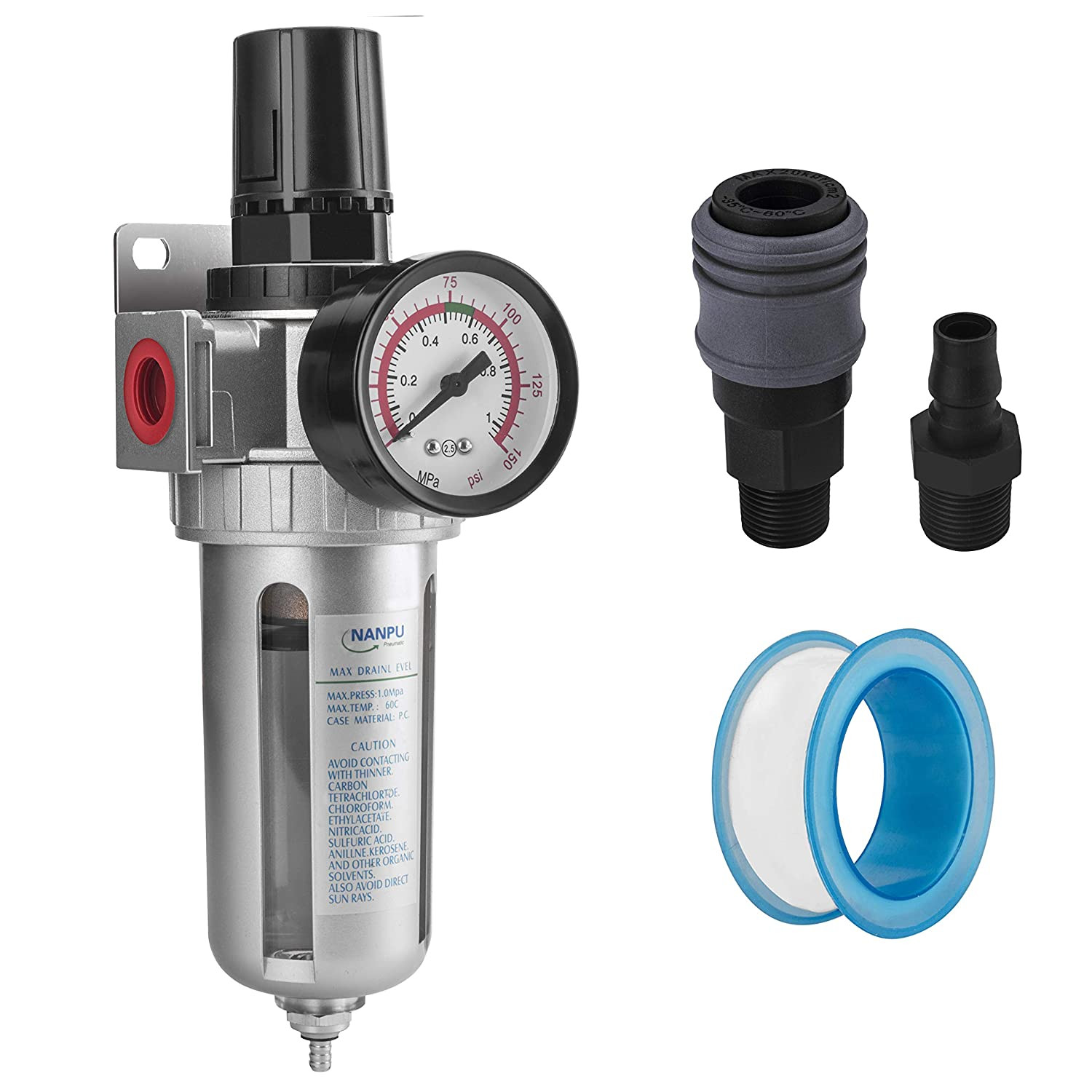

A pair of Air Coupler＆ Plug Kit, 1 x Thread Seal Tape included.

Item Weight	1.3 pounds
Item model number	SFR400
UPC	313023262240

1/2 NPT Compressed Air Filter Regulator Combo
