CONDITION / TESTING

Pre-owned Listen Technologies ListenTALK system in good overall cosmetic condition with normal signs of previous commercial use.

Please note: The system is being sold as untested. The power supply and power cable are included; however, the LA-481 docking station’s DC power connection is located underneath the docking station tray. The docking station is secured inside the carrying case, and I have not removed or disassembled the tray to access the power connection. Because of this, I have not been able to power on or fully test the docking/charging station or the included transceivers.

I am not aware of any specific defect with the system, but because I have not been able to fully test it, no guarantee is being made regarding functionality or battery condition.

Included:

8 Listen Technologies ListenTALK LK-1 transceivers
LA-481 Docking Station Case 16 with 16-position docking station
Leader clip
Power supply/power cables
Headsets, earpieces, cables and accessories shown in photos
Original ListenTALK documentation shown
Hard carrying case

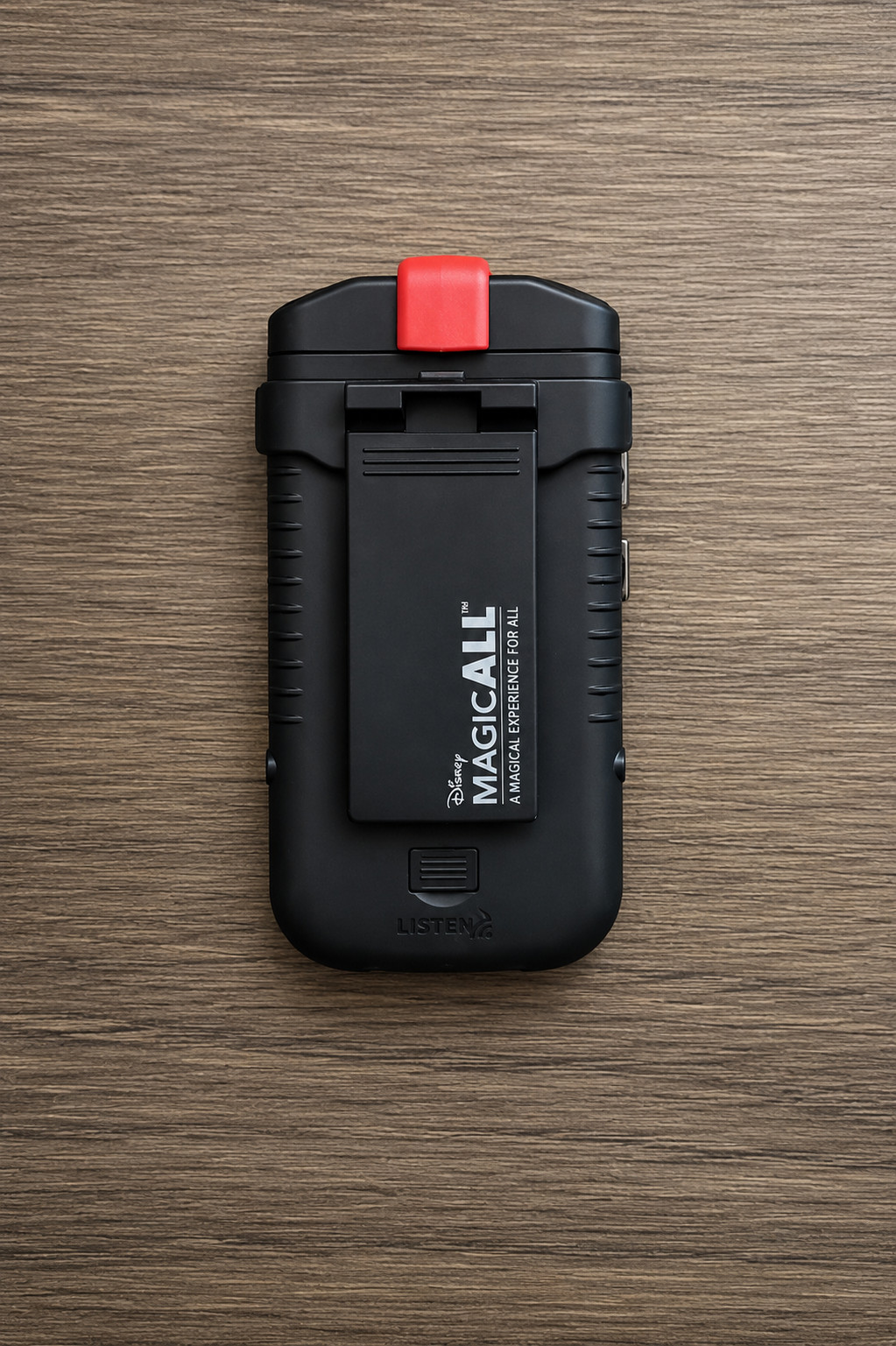

Some transceivers have Disney MagicALL identification/branding from their previous commercial application.

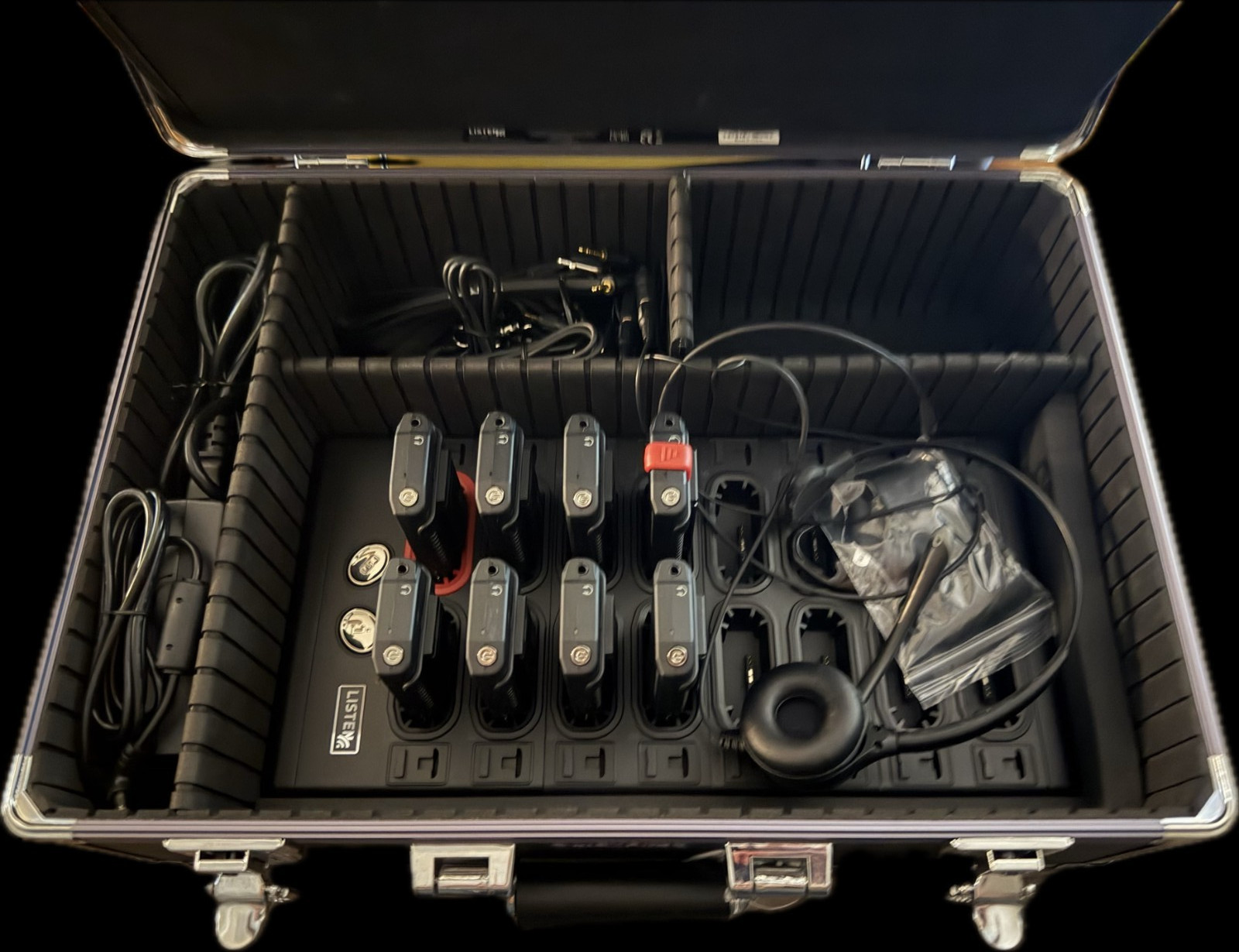

Please review all photographs carefully. Everything shown is included, and the system is being sold in its current, untested condition.

SPECIFICATIONS

ListenTALK LK-1 Transceivers

Quantity Included: 8
Model: LK-1
System Type: Two-Way Wireless Group Communication
Configuration: Leader/Participant capable
Operating Frequency: 1920–1930 MHz (North America)
Modulation: GFSK / FHSS
Duplex/Access: TDD / TDMA / DCA
Encryption: 64-bit
Typical Range: Up to 100 m (328 ft) indoors / 200 m (656 ft) outdoors, depending on conditions
Audio Connection: 3.5 mm TRRS headset/microphone jack
USB Connection: Micro USB for control, charging, and programming
Display: 64 × 128 OLED
Controls: Volume Up/Down, Talk, Power/Status, Talk Modes & Pairing
Enclosure: PC/ABS plastic
Dimensions: Approx. 3.93" H × 2.13" W × 0.63" D without belt clip
Weight: Approx. 2.79 oz (79 g) each

Battery / Power

Battery Type: Removable rechargeable lithium-ion
Battery Capacity: 1200 mAh
Typical Runtime – Participant Mode: Up to 12 hours
Typical Runtime – Leader Mode: Up to 7 hours
Typical Recharge Time: Approx. 4 hours
Optional Battery Capability: Compatible with optional 3-AAA battery compartment

Wireless Security

Subscription Security: 40-bit
Authentication: 32-bit
Encryption: 64-bit
NFC Frequency: 13.56 MHz

Environmental

Operating Temperature: 14°F to 104°F (-10°C to 40°C)
Storage Temperature: -4°F to 122°F (-20°C to 50°C)
Operating Humidity: 0–95% relative humidity, non-condensing
Compliance: FCC Part 15, ICES-003, CE, RCM, MIC, RoHS & WEEE

LA-481 Docking Station Case 16

Model: LA-481
Capacity: Up to 16 ListenTALK units
Functions: Charging, storage, transport, pairing and programming
Included in This System: 8 transceivers
Docking Positions: 16
Computer Connection: USB Type-B
Power Connection: Barrel-type DC connector
Power Supply Input: 100–240 VAC, 50–60 Hz
Case Dimensions: Approx. 7.48" H × 13.78" W × 18.31" D
Case Weight: Approx. 11.3 lb (5.13 kg)
Case Color: Gray/chrome
Docking Tray: Black with chrome buttons and red Leader pocket
Compliance: UL, CE, RCM & RoHS

SYSTEM FEATURES

Professional two-way wireless group communication system
Supports Leader and Participant configurations
Eight LK-1 transceivers included
Expandable using the 16-position LA-481 docking station
Docking station simultaneously stores and charges compatible units
Quick group pairing directly from the docking station
Status button allows information from docked transceivers to be viewed
USB connectivity allows programming through the ListenTALK Software Suite
Suitable for guided tours, training, corporate facilities, manufacturing environments, museums, educational facilities, houses of worship, events and other group communication applications

Model	ListenTALK 8 LK-1
Brand	Listen Technologies
MPN	LKS-1-A1
Country of Origin	United States

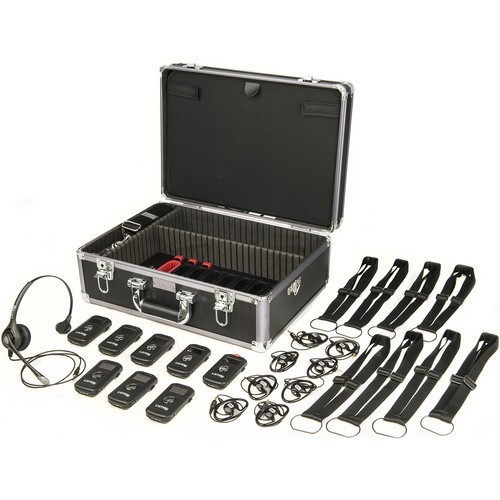

Listen Technologies ListenTALK 8 LK-1 Transceivers LA-481 Docking Station Case
