Low Pass Filter LPF2000M (LTCC Construction) Pass Band DC-2000 MHz

Part Number: LPF2000M is a low pass filter with pass band from DC to 2000 MHz.

Features

Operational Temperature: -55 ~ 100C
Temperature Stable
Cut Off Frequency: 2000 MHz
RF Power Input: 9W max. at 25C, derate linearly to 0.25W at 100C

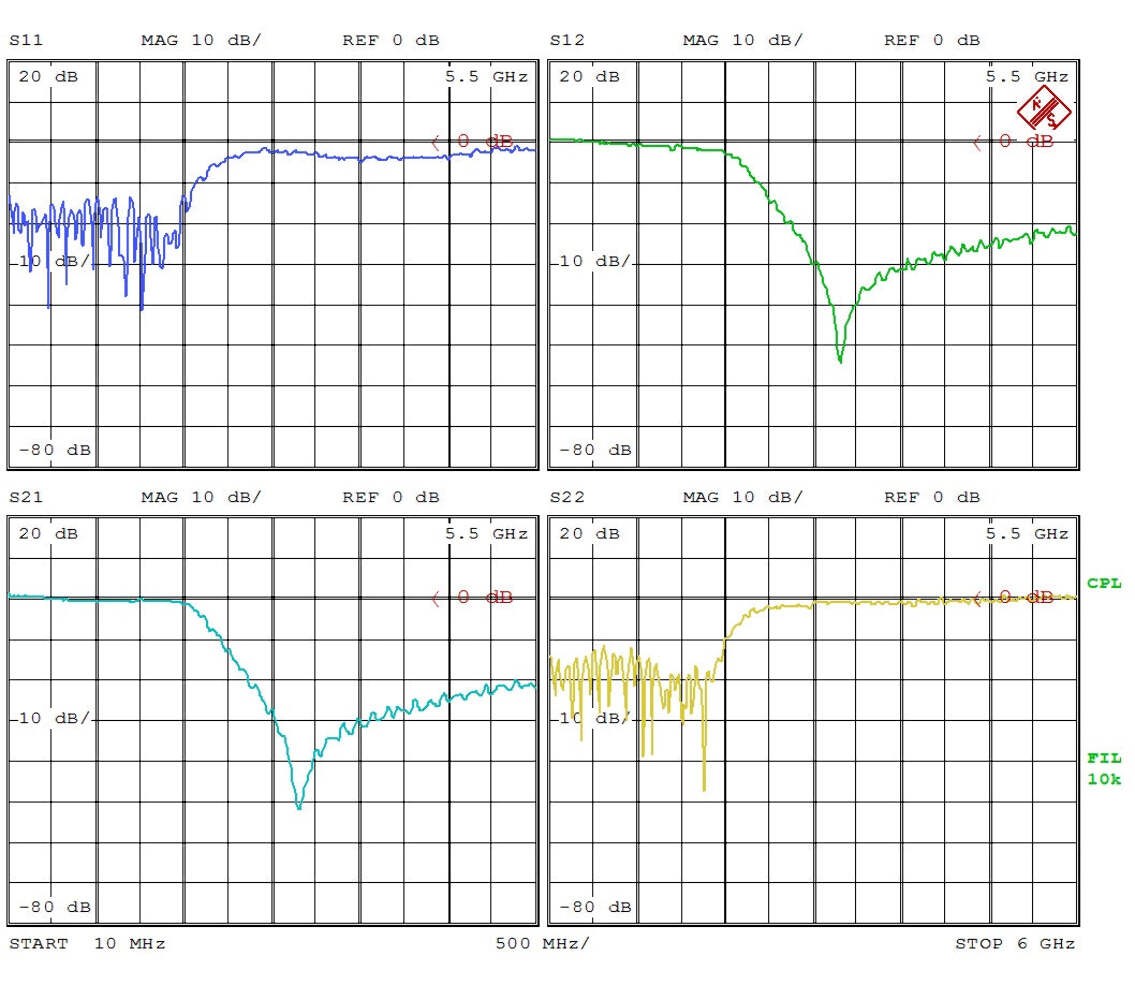

Insertion Loss in Pass Band: (1.5dB Max)
High Quality RF Rogers RO4350 PCB
ROHS Compliant

Applications

Harmonic Rejection
Transmitters / Receivers / SDR
Test Instrumentation

Resources

LPF2000M Datasheet
