Technical specification:

The Edwards FL20K (FL-20-K) foreline inlet trap has been developed for use in clean pumping systems, to prevent the back-migration of rotary pump oil mist into the system. This trap contains activated alumina sorbent. The activated alumina sorbent has the following benefits; Exceptional trapping properties for oil mist (99.7%), A very long life before it is saturated, and Can be rejuvenated by baking the basket containing the sorbent for 2 hours at 250 °C – 300 °C. The FL20K is most useful with two-stage rotary pumps, operating below 1 mbar. To maximize sorbent life, install the FL20K near the vacuum system. In common with other types of sorbent, activated alumina absorbs water. This does not affect the oil vapor trapping properties but may tend to prolong the roughing time on successive pump downs. To minimize vapor absorption, we recommend you fit a valved by-pass line. The trap body is made of aluminum and is fitted with a removable basket containing the sorbent. Extra sorbent activated alumina is available on this website. This Edwards FL20K foreline trap is supplied and a can of activated alumina sorbent.

Edwards FL20K (FL20K) Foreline Trap Specifications:

Fits Pump Models: RV3, RV5, RV8, RV12, E2M2, E2M5, E2M8, E2M12, E1M18, E2M18, E2M28 and E2M30

Inlet & Exhaust Flanges: ISO KF25 (NW25)

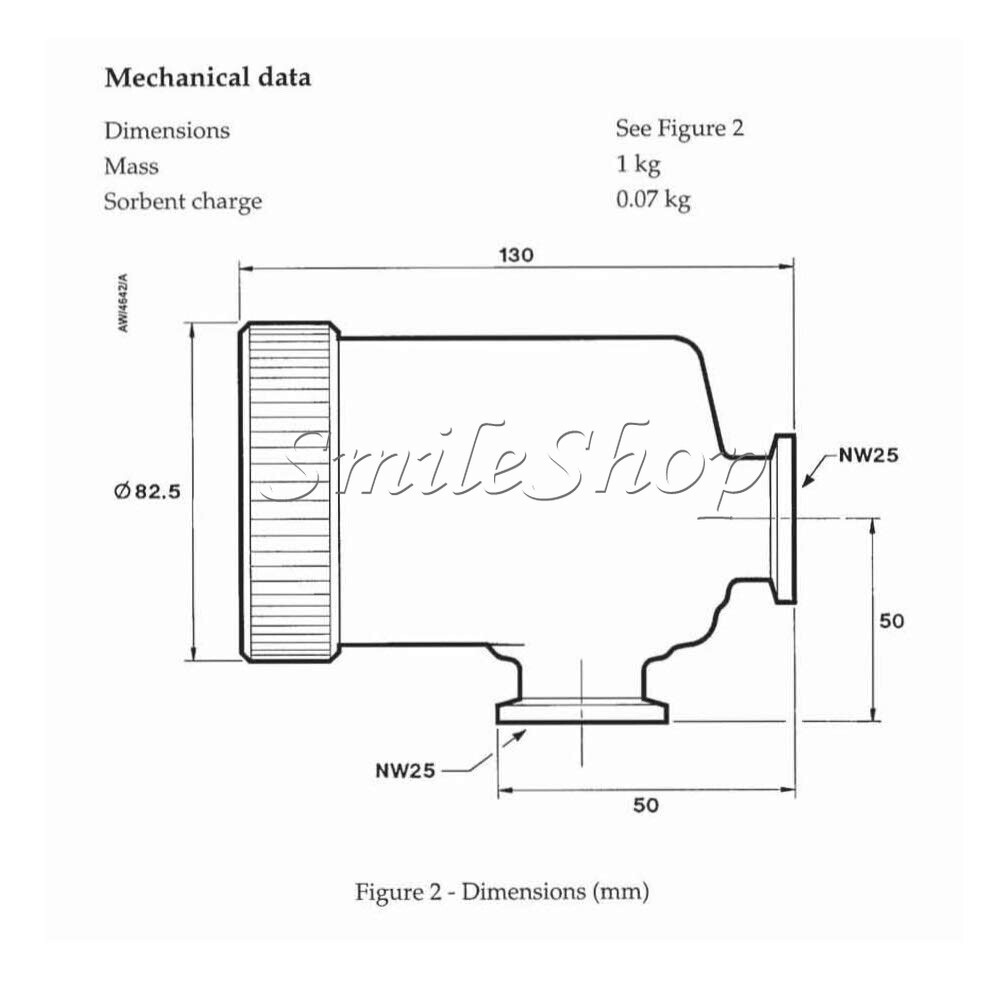

Dimensions: Height 5.5 x Width 4 inches

Weight: 1.5 lb

Material: Cast Aluminum Body

Element: Supplied with can of alumina sorbent

Replacement 0.45 kg Media Part Number: H026-00-050

Edwards FL20K (FL-20-K) Part Number: A133-05-000

Seller name:llg01aa
City,State:Zhengzhou City, Henan Province, China
Telephone number:+86-18838820020

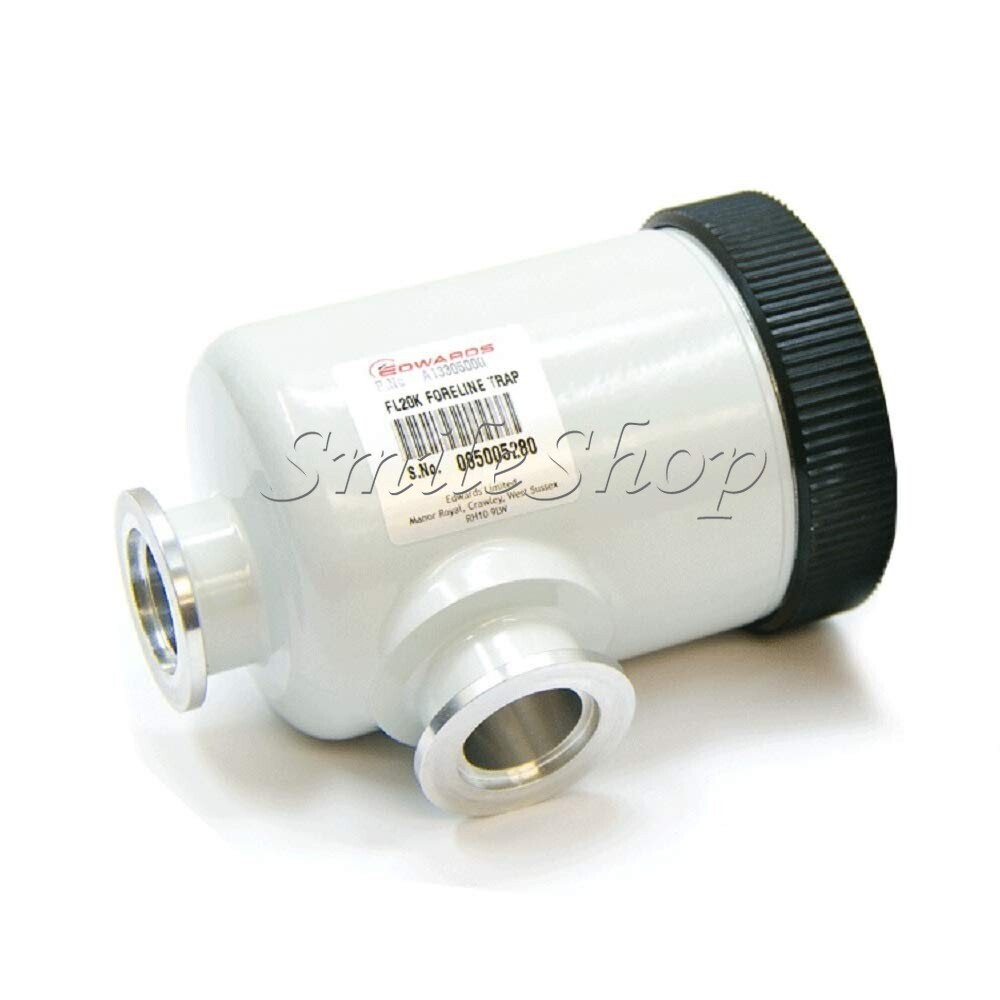

Edwards FL20K Foreline Trap A13305000 for Rotary Vane Vacuum Pump System
